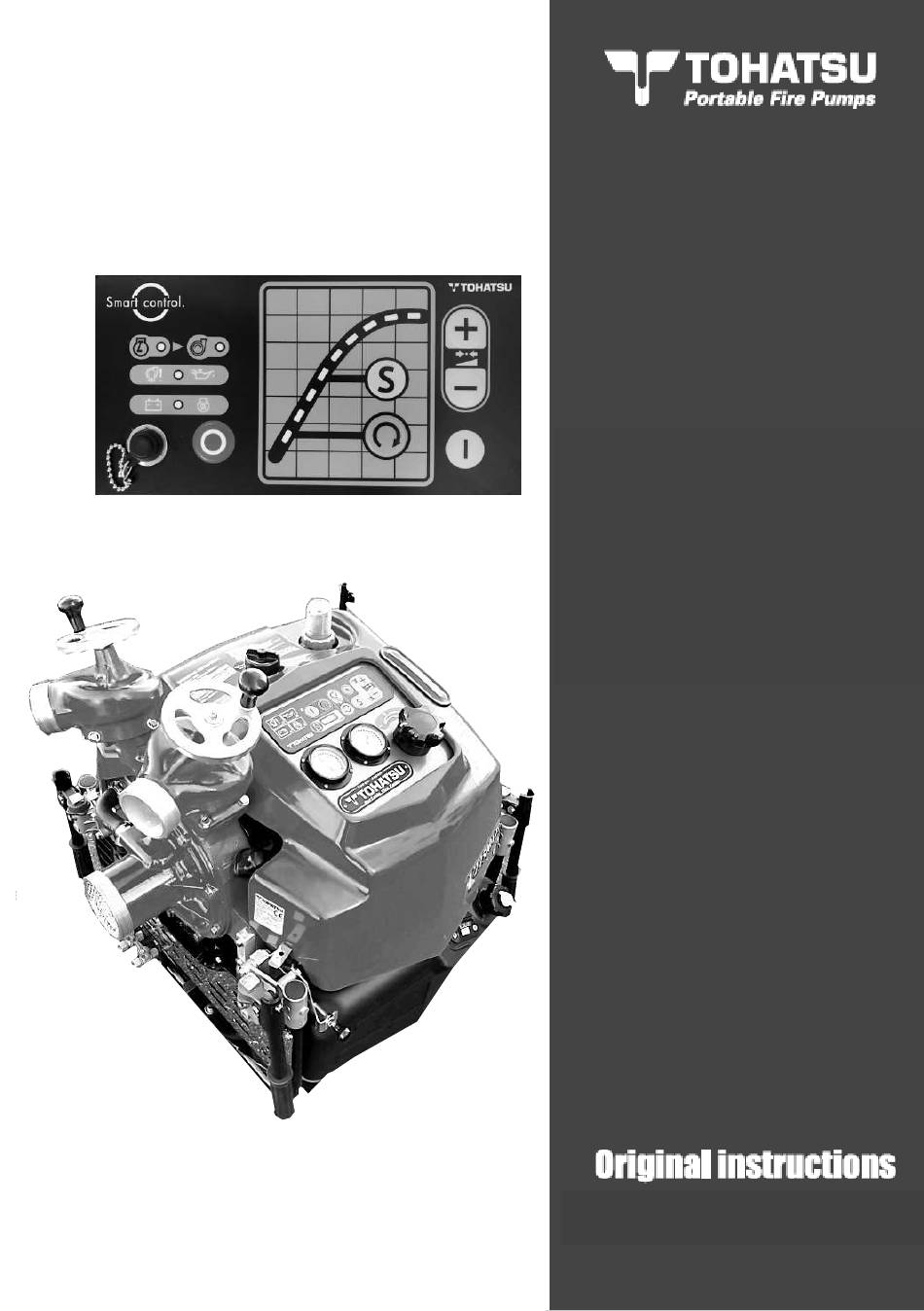

- Page 1 OWNER’S MANUAL VE 1500A- Ti Remote Control Panel 003-12086-0AH0...
- Page 2 Copyright © 2018 Tohatsu Corporation. All rights reserved. No part of this manual may be reproduced or transmitted in any from or by any means without the express written permission of Tohatsu Corporation.
- Page 3 APPLICATIONS OF THIS REMOTE CONTROL PANEL Usage TOHATSU portable fire pump “VE1500A-Ti” and the remote control panel are intended only for fire fighting activities in collaboration with general public fire extinguishing equipment. Using these products for the other applications is regarded as being used for improper purposes.
- Page 4 ･Place owner’s manual so that operators can refer to it where they operate the fire pump and the control panel. General safety information Before operating the TOHATSU remote control panel and the fire pump, thoroughly read the manual. Understanding...
- Page 5 MANUFACTURER AND AFTER-SALES SERVICE ADDRESS TOHATSU CORPORATION Address : 3-5-4 Azusawa, Itabashi-ku, Tokyo, JAPAN : +81-3-3966-2951 Overseas section fire protection sales department Phone : +81-3-3966-3137 Email bousaiex@tohatsu.co.jp Serial Number The identification of remote control panel is marked on the back of the control panel.
-
Page 6: Table Of Contents
CONTENTS OPERATING DEVICES …..…..……..….……..……..… DESCRIPTION OF DEVICES ……..……...….….…….…2 USE OF REMOTE CONTROL PANEL …….…..…..…5 STARTING THE ENGINE ….…..…..…….…..…..…..9 PRIME AND DISCHARGE .….…...….……..….….…….11 STOPPING THE ENGINE .……..….…….…….…….….13... -
Page 7: Operating Devices
OPERATING DEVICES ① ③ ⑭ ② ⑤ ⑧ ⑨ ⑬ ⑩ ⑮ ⑥ ⑯ ⑪ ⑦ ⑫ ④ ① Engine running status lamp ② Discharge water status lamp ③ Warning lamp: Suction water, Engine oil, MAT/MAP ④ Warning lamp: Battery, Overheat, TPS/WTS ⑤... -
Page 8: Description Of Devices
DESCRIPTION OF DEVICES Remote Control Panel The remote control panel should be connected to the pump(VE1500A-Ti) control panel. ① ③ ⑭ ② ⑤ ⑧ ⑨ ⑬ ⑩ ⑮ ④ ⑯ ⑫ ⑪ ⑦ ⑥ Lamp Engine running ① Turn on：Engine running. status Discharge water ②... - Page 9 DESCRIPTION OF DEVICES Switch ⑥ Main switch Power and control panel lamps turn on. Start switch, Start the engine with starter. Low pressure ⑦ Turn the throttle to low pressure position while throttle position the engine is running. switch Throttle position Turn the throttle to engine start position and ⑧...
- Page 10 DESCRIPTION OF DEVICES Lamp check (Alert action check) When the warning lamps are off, there is no trouble on each function. When the warning lamp(s) is on or blinking, the pump does not work properly. ･ Turning on the power, the warning lamps and buzzer will NOTE be activated for approximately one second.
-
Page 11: Use Of Remote Control Panel
USE OF REMOTE CONTROL PANEL Operation procedure using remote control panel. onnect the remote control panel to the operation panel of pump (VE1500A-Ti). Throttle position switch 1) Turning on the power ･Turn on the power pressing the main switch. ※ Lamp check will be done for an instant. (Each lamp lights for about a second.) 2) Starting the engine and sucking up priming Main switch... - Page 12 USE OF REMOTE CONTROL PANEL ･ If the throttle position is at lower position (at about Idle NOTE position) than “ ” position, the vacuum pump will not start automatically. ･ If the starter motor does not operate although the throttle is at the “...
- Page 13 USE OF REMOTE CONTROL PANEL Warning system Remedy Warning...
- Page 14 USE OF REMOTE CONTROL PANEL ※ The functions are in the pump. *1. Manifold Air Temperature sensor (MAT), Manifold Absolute Pressure sensor (MAP), Throttle Position Sensor (TPS), and Water Temperature Sensor (WTS). *2. Pressing the main switch one time. *3. The throttle turns to low pressure position and the throttle does not work. *4.
-
Page 15: Starting The Engine
STARTING THE ENGINE Operating VE1500A-Ti is possible with both of the pump control panel and the remote control panel. Connect the remote control panel to the operation panel of pump (VE1500A- Ti). * VE1500A-Ti pump control panel does not have the engine running status lamp and discharge water status lamp. - Page 16 STARTING THE ENGINE ･ The throttle position turns to the low pressure position after NOTE completed of sucking water at automatic suction water mode just after the power on. ･ When the engine starts, the engine running lamp turns on. ･...
-
Page 17: Prime And Discharge
PRIME AND DISCHARGE Sucking up priming water (Automatic) Refer to Chapter Starting the engine “ ” 1. Press the main switch to turn on the power. Throttle position switch (“ ” position) 2. Press the throttle position switch “ ” Then the throttle position turns to the suck up water position “... - Page 18 PRIME AND DISCHARGE Discharging water ･ Check that the nozzle is ready CAUTION to discharge water before opening discharge valve(s). inform operator(s) on the nozzle side that the discharge valve(s) is going to open and confirm that it is OK. 1.
-
Page 19: Stopping The Engine
STOPPING THE ENGINE 1. Return the throttle to the low pressure Decreasing position pressing :Decreasing “ ” “ pressure switch pressure switch ” Start switch,/Low pressure throttle position switch Discharge valve 2. Close the discharge valves. Close 3. Press the stop switch to stop the engine. - Page 20 OWNER’S MANUAL VE 1500A-Ti Remote Control Panel TOHATSU CORPORATION Address: 3-5-4 Azusawa, Itabashi-ku, Tokyo, JAPAN FAX: +81-3-3966-2951 Phone: +81-3-3966-3137 003-12086-0 AH0...
Need help?
Do you have a question about the VE1500A- Ti and is the answer not in the manual?
Questions and answers
Ve 1500a-ti contineous alarm sounding and engine refuse to start both in manual and with battery
A continuous alarm sounding and the engine refusing to start on the TOHATSU VE1500A-Ti fire pump may indicate one of the following issues:
1. Low Engine Oil – Refill the engine oil.
2. Insufficient Cooling Water – Remove the cause of insufficient cooling water and restart the engine.
3. Battery Voltage Too Low – If the battery voltage is around 7V or lower, the alarm may not work properly. Charge the battery.
4. Throttle Position Issue – Ensure the throttle is in the low-speed (pressure) position.
If the issue persists after addressing these potential causes, stop the engine and contact customer service.
