kincrome Black Series Operation Manual

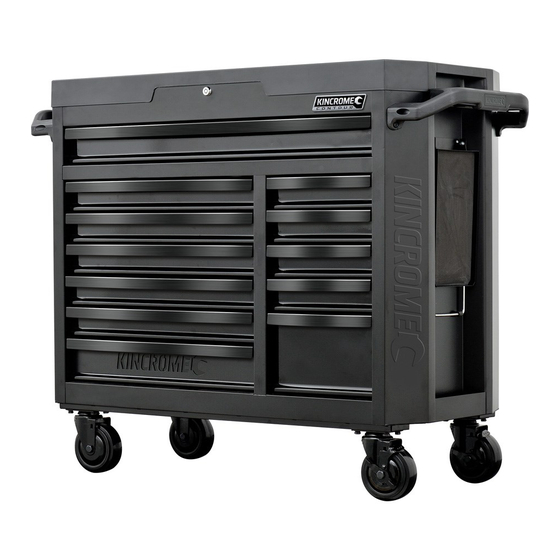

60" Trolley
Operation Manual
Parts List
Assembly Instructions
1
Removing the Drawers
• Fully extend the empty drawer.
• Push up the right grey release
lever while pushing down the
left grey release lever.
• Pull the drawer outward until
it is released from the drawer
slide.
TOOLS & ASSISTANCE NEEDED
K7526 Manual.indd 1
K7862
TOOL CHEST
6 DRAWER
Keys x 2
7 x EVA Liners
MAINTENANCE
• Periodically tighten all hardware
• Lubricate the slides twice a year
• Lubricate the lock with graphite annually
• Use a damp Microfibre cloth to clean all surfaces
1
Push up the
right grey release lever
1
THIS OPERATING MANUAL CONTAINS IMPORTANT
SAFETY INFORMATION. READ CAREFULLY AND
UNDERSTAND ALL INFORMATION BEFORE
OPERATING TOOL CHEST.
SAVE THIS MANUAL FOR FUTURE USE
TOOL CHEST SPECIFICATIONS
Overall
Top Area
Drawers
Weight
2
Re-Inserting The Drawers
• Extend the drawer slides.
• Insert the brackets on each side
of the drawer into the slots on the
slides, being careful that they are
properly positioned.
• Once properly inserted,
completely close the drawer to
set the slides in their proper
positions.
2 People Lift
K7526
Bunnings Weight Icons (2676) 30/3/04 10:11 AM Page 3
40kg+
This product requires a two person lift
- use proper lifting techniques
745mm 475mm 485mm
570mm 470mm 118mm
546mm 397mm 41mm
41Kg
Pull down the
2 left grey release lever
