kincrome TOOL CHEST Operation Manual

Operation Manual
Parts List
Assembly Instructions
TO REMOVE & REPLACE DRAWERS
1
DRAWER REMOVAL
Pull drawer out until fully extended. Press down right
hand side to realease lever. At the same time, pull up left
hand side release lever.
Pull the drawer outward until it releases from the
drawer slide.
CAUTION
For your safety, DO NOT lift the chest by yourself. Failure to follow this warning may result in personal injury and
damage to the tool chest.
TOOLS & ASSISTANCE NEEDED

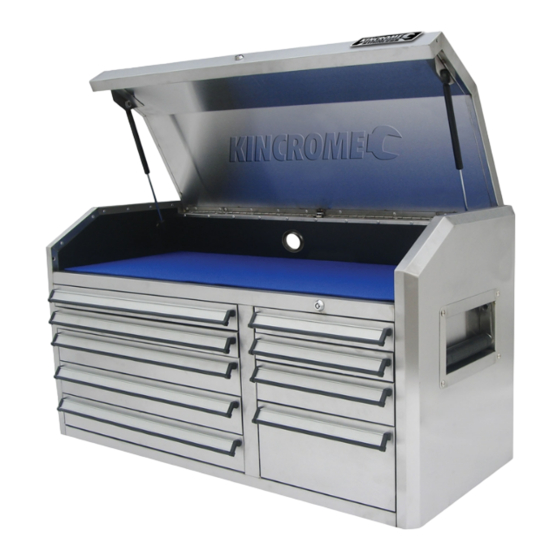

TOOL CHEST
9 DRAWER
Keys x 2
10 x EVA Liners
MAINTENANCE
• Periodically tighten all hardware
• Lubricate the slides twice a year
• Lubricate the lock with graphite annually
• Use a damp Microfibre cloth to clean all surfaces
Push down (Right hand side)
1
TOOL CHEST SPECIFICATIONS
Overall
Top Area
Large Shallow
Large Deep
Small Shallow
Small Deep
Small X-Deep
Weight
2
DRAWER REPLACEMENT
Extend the drawer slides from the tool chest. Insert the brackets
on each side of the drawer into the slots in the drawer slides,
being careful that they are properly positioned.
Once properly inserted, completely close te drawer to set in the
slides in the proper positions.
Pull up (Left hand side)
1
2 People Lift
1
THIS OPERATING MANUAL CONTAINS IMPORTANT
SAFETY INFORMATION. READ CAREFULLY AND
UNDERSTAND ALL INFORMATION BEFORE
OPERATING TOOL CHEST.
SAVE THIS MANUAL FOR FUTURE USE
Bunnings Weight Icons (2676)
This product requires a two person lift
- use proper lifting techniques
Width Depth
1040mm 460mm
960mm 430mm
560mm 415mm
560mm 415mm
292mm 415mm
292mm 415mm
292mm 415mm
66Kg
K7308
30/3/04 10:11 AM Page 3
40kg+
Height
565mm
140mm
27mm
56mm
27mm
56mm
138mm
