kincrome Black Series Operation Manual

60" Trolley
Operation Manual

Parts List

Assembly Instructions

Keys x 2
Non-Locking Swivel
Castors (2)
TOOLS & ASSISTANCE NEEDED
K7542 Manual.indd 1
K7862

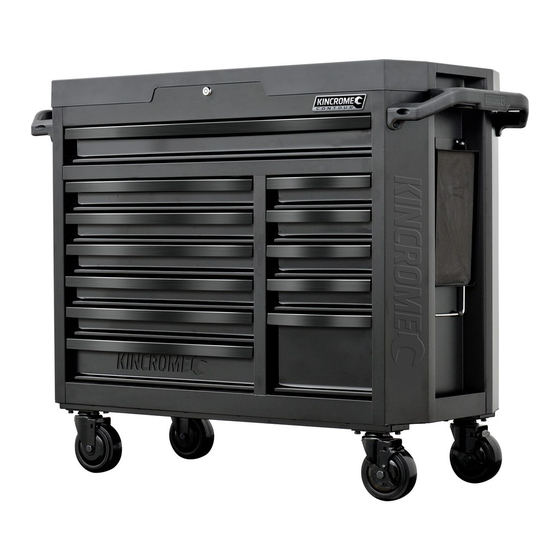

TOOL TROLLEY
12 DRAWER EXTRA WIDE
Trolley Handle x 1 8 x Hex Bolts for
Push Handle
Locking Swivel 13mm x 16 Bolts
Castors (2) (16) for Castors
THIS OPERATING MANUAL CONTAINS IMPORTANT
SAFETY INFORMATION. READ CAREFULLY AND
UNDERSTAND ALL INFORMATION BEFORE
OPERATING TOOL TROLLEY.
SAVE THIS MANUAL FOR FUTURE USE
TOOL TROLLEY SPECIFICATIONS
Overall
(with castors)
1059mm
(without castors)
1059mm
Wide Drawers
867mm
(Shallow)
Medium Drawers
545mm
(Shallow)
Medium Drawers
545mm
(Deep)
Small Drawers
257mm
(Shallow)
Small Drawers
257mm
(Deep)
Side Tray
175mm
Castor Size:
125mm x 50mm (5" x 2") x 2 Locking
Weight
85Kg
Power Handle x 1
12 x EVA Liners
2 People Lift
1
K7542
Bunnings Weight Icons (2676) 30/3/04 10:11 AM Page 3
40kg+
This product requires a two person lift
- use proper lifting techniques
475mm 950mm
475mm 825mm
397mm 65mm
397mm 52mm
397mm 85mm
397mm 52mm
397mm 160mm
300mm 12mm
Washers x 16
Spring Washers x 16
Castor Handle
13mm Spanner 5mm Hex Key
