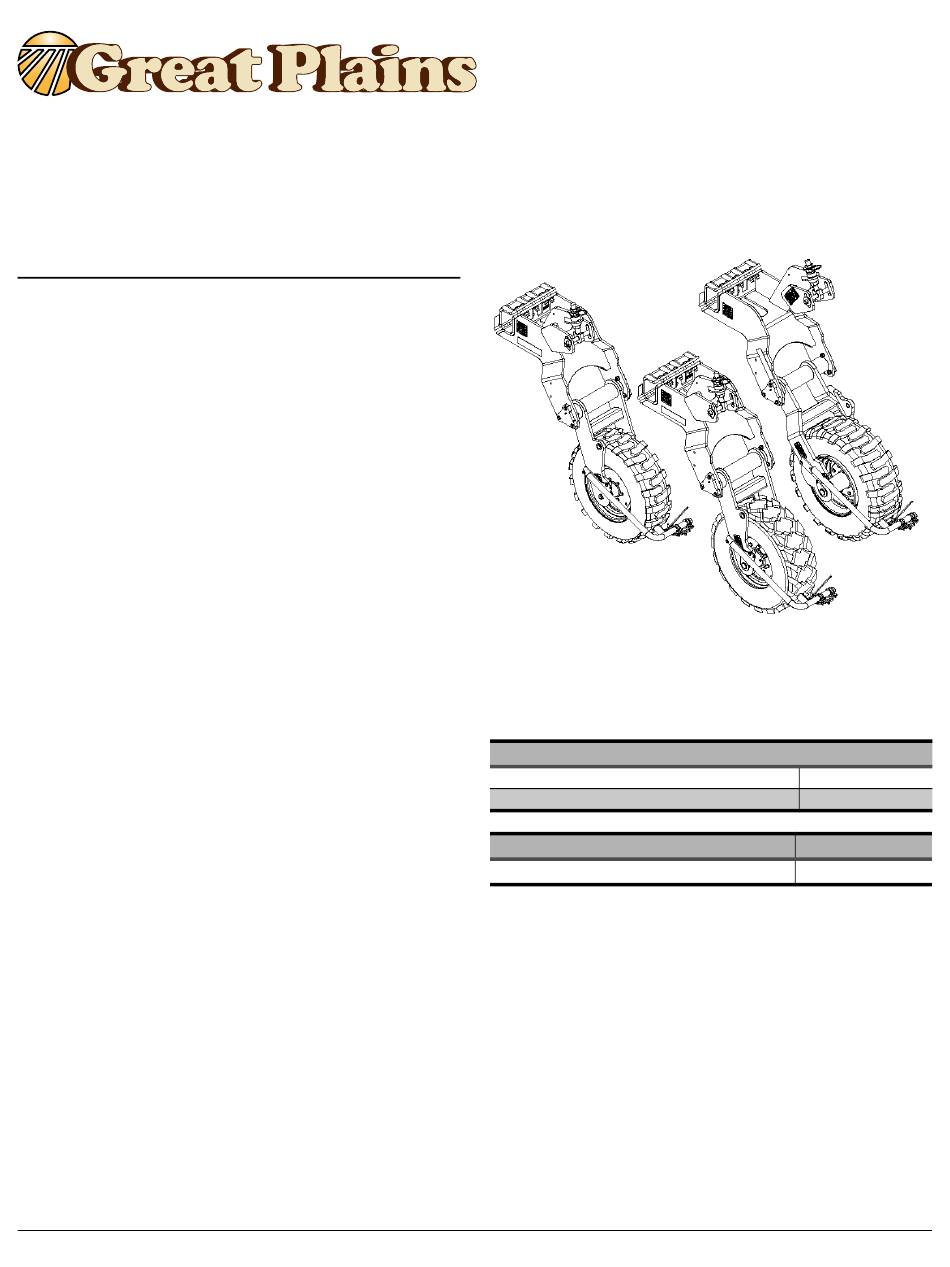

Operator's Manual
Installation Instructions for Nutri-Pro Tire Scraper
for the NP30A, NP30L, NP40A, NP40L, NP1540AA, NP1540LL, NP1330AA, NP1330LL,
NP1340AA, NP1340LL
Before Getting Started
Before you begin installation of your Nutri-Pro Tire
Scraper, read these instructions carefully and check that
all parts and tools in kit are accounted for. All hand and
specialty tools for installation are provided at owner's
expense. Please retain these installation instructions for
future reference and parts ordering information.
These installation instructions contain information for
assembling the Nutri-Pro Tire Scraper to the main
machine. Please read all instructions in your Nutri-Pro
operator manual thoroughly before proceeding.
Instructions contain information for all makes and models
of the applicable machines.
General Information
The Nutri-Pro Tire Scraper cleans mud and debris from
gauge wheel tires during operation.
Tools Required
The following tools are required for installation:
general hand tools
wire or rod welder and welding safety equipment
fire extinguisher
Great Plains green spray paint, 821-001C
Refer to page 10 for torque values chart.
Further Assistance
If for any reason you do not understand any part of this
manual or are otherwise dissatisfied, please contact:
Great Plains Service Department
1525 E. North St.
P.O. Box 5060
Salina, KS 67402-5060
Or go to www.greatplainsag.com and follow the contact
information at the bottom of your screen for our service
department.
© Copyright 2019
Recommended Manuals
All manuals related to this kit are available free of charge
by visiting www.greatplainsag.com. Have machine model
and serial numbers available.
Nutri-Pro Parts Manuals
MANUAL, PARTS, NUTRI-PRO
MANUAL, 1330/1340&1540 PARTS
Nutri-Pro Tire Scraper
NP TIRE SCRAPER FIELD KIT
Refer to page 2 for a detailed list of parts included in the
Nutri-Pro Tire Scraper Field Kit. Use this list to inventory
parts received.
Printed 01/30/19
68240a
407-313P
417-480P
Reference #
427-041K
427-051M
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for GREAT PLAINS Nutri-Pro NP30A
Summary of Contents for GREAT PLAINS Nutri-Pro NP30A
- Page 1 Have machine model and serial numbers available. fire extinguisher Great Plains green spray paint, 821-001C Nutri-Pro Parts Manuals Refer to page 10 for torque values chart. MANUAL, PARTS, NUTRI-PRO 407-313P Further Assistance MANUAL, 1330/1340&1540 PARTS...
-
Page 2: Kit Contents
MOUNT PLT 427-040H NP TIRE SCRAPER MNT 417-795D LOCATOR MNT 417-929K, 417-930K 417-797D LOCATOR MNT 417-931K 802-034C HHCS 1/2-13X1 1/4 GR5 NOTE: The part callout numbers in this list match all Figures in these installation instructions. Great Plains | 427-051M... -
Page 3: Getting Started
Installation Instructions Preparation 1a. Installing to Light Gauge Wheel Arm without Mounting Holes Move the machine to a solid, level surface. Make sure the surface is free of any flammable material. Fit the locator mount (26) over the gauge wheel axle bolt (2). - Page 4 Install the tire scraper mount (24) into the mount to cool. Paint green. plate using two -13 X 1 inch bolts (27), washer locks (22), and nuts (21). 68236A 68238d Adjust the tire scraper as needed. Repeat the procedure for the other gauge wheel. Great Plains | 427-051M...
- Page 5 1b. Install to New Light Gauge Wheel Arm If the tire scraper (12) is not installed to the tire scraper mount (24), install the tire scraper (12) to the shank mount (15) with two -14 X 1 inch plow bolts (11) and nuts (20). Install the scraper pivot (17) to the shank mount plate (15) using two -13 x 1...
- Page 6 Clean off any slag and weld splatter. Allow the welds to cool. Paint green. 68232 2a. Installing to Medium Gauge Wheel Arm without Mounting Holes Position the locator mount (25) over the axle lock plate (2) and align the edges as shown. 68236B 68234B Great Plains | 427-051M...
- Page 7 If the tire scraper (12) is not installed to the tire 2b. Installing to New Medium Gauge Wheel Arm scraper mount (24), install the tire scraper (12) to the If the tire scraper (12) is not installed to the tire shank mount (15) with two -14 X 1 inch plow...
- Page 8 Clean off any slag and weld splatter. Allow the welds to cool. Paint green. 68233 3a. Installing to Heavy Gauge Wheel Arm without Mounting Holes Position the locator mount (25) over the axle lock plate (2) and align edges as shown. 68236C 68234C Great Plains | 427-051M...
- Page 9 If the tire scraper (12) is not installed to the tire 3b. Installing to New Heavy Gauge Wheel Arm scraper mount (24), install the tire scraper (12) to the If the tire scraper (12) is not installed to the tire shank mount (15) with two -14 X 1 inch plow...
-
Page 10: Torque Values Chart
= nominal thread diameter in mm x thread pitch 1950 3160 1180 2640 4290 d. ft-lb = foot pounds 1330 2970 2190 4820 3560 25199m 25199 Torque tolerance + 0%, -15% of torquing values. Unless otherwise specified use torque values listed above. Great Plains | 427-051M...
