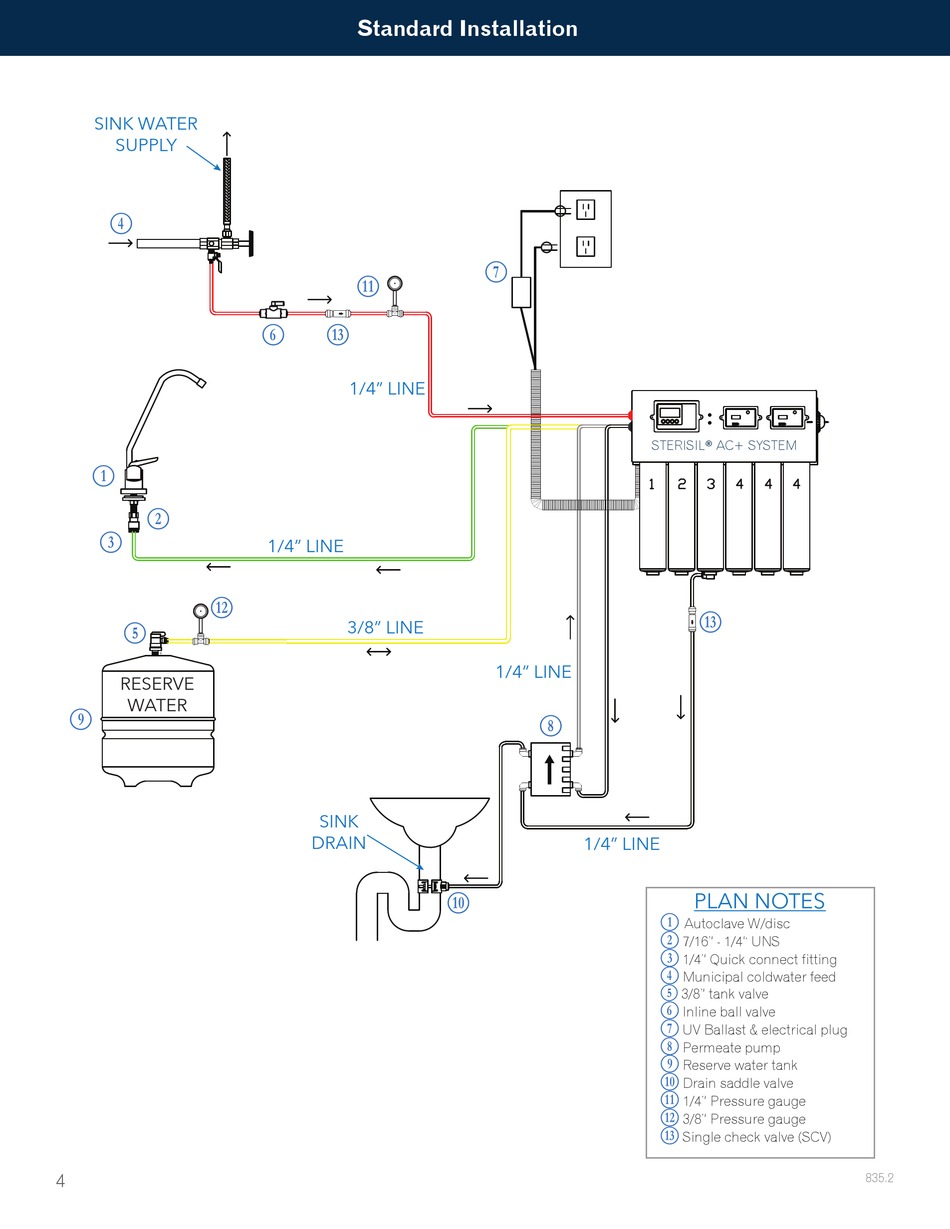

Overview Diagram - Sterisil AC+ System Installation And Maintenance Manual

SINK WATER
SUPPLY
E
B
C
D
M
F
RESERVE
WATER
J
4
Standard Installation
L
G N
1/4" LINE
1/4" LINE
3/8" LINE
SINK
DRAIN
H
1/4" LINE
I
1/4" LINE
K
STERISIL® AC+ SYSTEM
N
PLAN NOTES
B
Autoclave W/disc
C
7/16" - 1/4" UNS
D
1/4" Quick connect fitting
E
Municipal coldwater feed
F
3/8" tank valve
G
Inline ball valve
H
UV Ballast & electrical plug
I
Permeate pump
J
Reserve water tank
K
Drain saddle valve
L
1/4" Pressure gauge
M
3/8" Pressure gauge
N
Single check valve (SCV)
835.2
