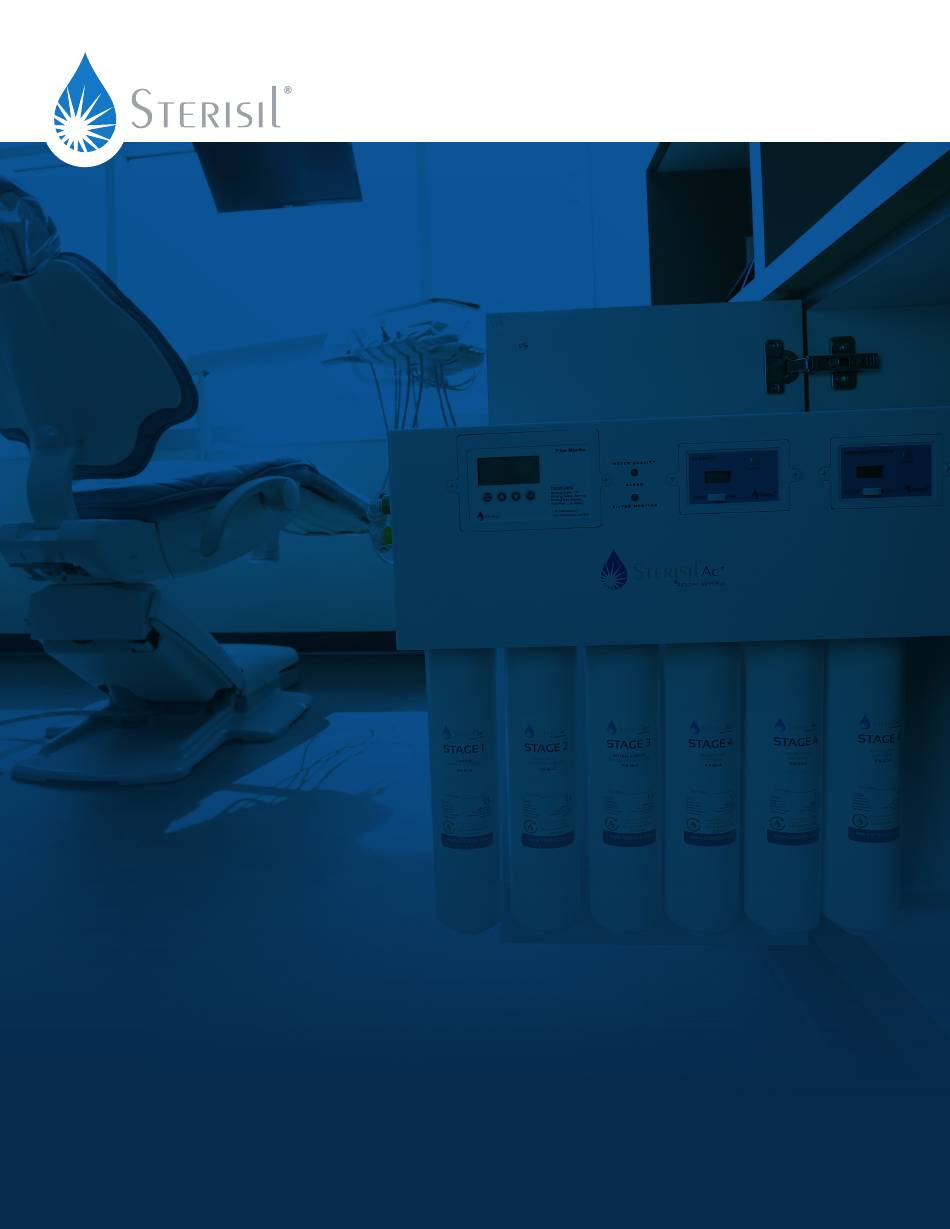

STERISIL® AC+ SYSTEM
INSTALLATION AND
MAINTENANCE MANUAL
1
835.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AC+ System and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sterisil AC+ System

  • Page 1 719 622 7200 Sterisil.com STERISIL® AC+ SYSTEM INSTALLATION AND MAINTENANCE MANUAL 835.2...
  • Page 2: Table Of Contents

    Phase 5: Electrical and Operational Test Optional Add-ons Maintenance Manual Sterisil® Limited Warranty DOCUMENTS LOCATED AT WWW.STERISIL.COM/AC-ACPLUS Filter Monitor Ideal Readings and Operation Water Quality Monitor Ideal Readings and Operation NEED HELP OR HAVE QUESTIONS Our technical support staff is available and ready to help.
  • Page 3: Introduction

    INTRODUCTION The ease of use and confidence that Sterisil® has brought to dental unit water line treatment now comes to the world of distilled and deionized water for use with your office’s table top autoclaves and instrument washers. With a 5 stage purification process, the Sterisil® Ac+ produces up to 50 gallons of distilled quality water with 0 parts per million total dissolved solids (ppm TDS).
  • Page 4: Before You Begin

    Please keep the installation and maintenance manual on hand for future reference. Ensure those responsible for operation and maintenance of the system are familiar with all details contained in this manual. Please return the warranty registration form via mail or register online at sterisil.com/warranty immediately upon installation.
  • Page 5: Specifications

    SPECIFICATIONS 6- 7/8” 17- 5/8” 5- 1/2” STERISIL® AC+ SYSTEM STERISIL SYSTEM ® 17- 3/16” 17- 3/16” INITIAL SETUP AND BASELINE REQUIREMENTS For the system to fit functionally in its mounting, it will require at least: • 20” in length •...
  • Page 6: Overview Diagram

    Standard Installation SINK WATER SUPPLY 1/4” LINE STERISIL® AC+ SYSTEM 1/4” LINE 3/8” LINE 1/4” LINE RESERVE WATER SINK DRAIN 1/4” LINE PLAN NOTES Autoclave W/disc 7/16” - 1/4“ UNS 1/4” Quick connect fitting Municipal coldwater feed 3/8” tank valve Inline ball valve UV Ballast &...
  • Page 7: Phase 1: Unpacking And Inventory

    PHASE 1: UNPACKING AND INVENTORY Carefully unpack the contents of the boxes. The standard Sterisil® Ac+System configuration is shipped in two boxes. One box will include the Ac+ along with the installation manual, warranty registration card, system mount, and assorted bags containing other needed items for installation. The water storage tank will be shipped separately.
  • Page 8: Phase 2: Mounting And Peripheral Components

    PHASE 2: MOUNTING AND PERIPHERAL COMPONENTS CONSIDERATIONS PRIOR TO MOUNTING The location of your Sterisil® Ac+ System needs the following considerations: • Distance to the water supply • Leave enough slack in tubing to account for mounting configurations • Accessibility to digital monitors •...
  • Page 9: Phase 3: Cartridges

    • Please note, the Blank Cartridge is essential for troubleshooting possible blockages inside the system. PHASE 4: SOURCE WATER AND TUBING Ensure the source water to the Sterisil® Ac+ System remains closed until the procedure calls for it to be turned on.
  • Page 10 • Remove the existing hose, wrap the supply tee threads with thread tape, and install the supply tee on the cold water supply. Tighten the tee with a wrench. Hot water should not be used to feed the Sterisil® Ac+ System. For now the main valve will remained closed.
  • Page 11: Phase 5: Electrical And Operational Test

    • Allow at least 8–12 hours for the tanks to completely fill. • Check RO Quality Monitor and DI Quality Monitor readings. • Ensure the Filter Monitor is set properly. Refer to the Maintenance Manual, pg. 12, and the Ideal Readings and Operation document at www.sterisil.com/ac-acplus. 835.2...
  • Page 12: Optional Add-Ons

    • Find a location where you can drive the screws for the bracket into the wall that will reach both your source water line and your Sterisil® Ac+ System source line. • If you have a Sterisil® Booster Pump, the Pre-filter Kit will go before the Booster Pump on the source water line. (Reference pg. 11) •...
  • Page 13 Municipal coldwater feed Inline ball valve Pre Filter Single Check valve Booster Pump 1/4” LINE 3/8“ Pressure Switch 3/8” tank ball valve Reserve water tank 3/8” Pressure gauge 1/4” Pressure gauge STERISIL AC+ SYSTEM STERISIL® SYSTEM 3/8” LINE RESERVE WATER 835.2...
  • Page 14: Maintenance Manual

    Because much of the system health is based on rates of reduction, it is important to log and monitor water quality readings. Notating the water quality readings for the Source, RO, D1, and D2 will expedite a solution if the need arises to contact Sterisil® customer service. FILTER MONITOR (FAR LEFT) The Filter Monitor, when properly programmed, tracks the remaining lifespan in months for stages 1, 2, 3, the UV Light.
  • Page 15 1-4, close the Reserve Tank and run the autoclave water. 7. Open all tanks to finish. 8. Cartridges can either be discarded in the trash or returned to Sterisil® for recycling. For more information on our recycling program visit sterisil.com/recycle.
  • Page 16: Sterisil® Limited Warranty

    EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Sterisil® shall not be liable to any user of any product, or any other person, for any indirect, special, incidental, exemplary or consequential damages (including, without limitation, lost profits) resulting from use or inability to use any Sterisil®...
  • Page 17 835 S. HWY 105, SUITE D PALMER LAKE, CO 80133 EMERGO EUROPE 719 622 7200 | WWW.STERISIL.COM Prinsessegracht 20 2514 AP The Hague The Netherlands 835.2...
