Sterisil AC+ System Installation And Maintenance Manual page 13

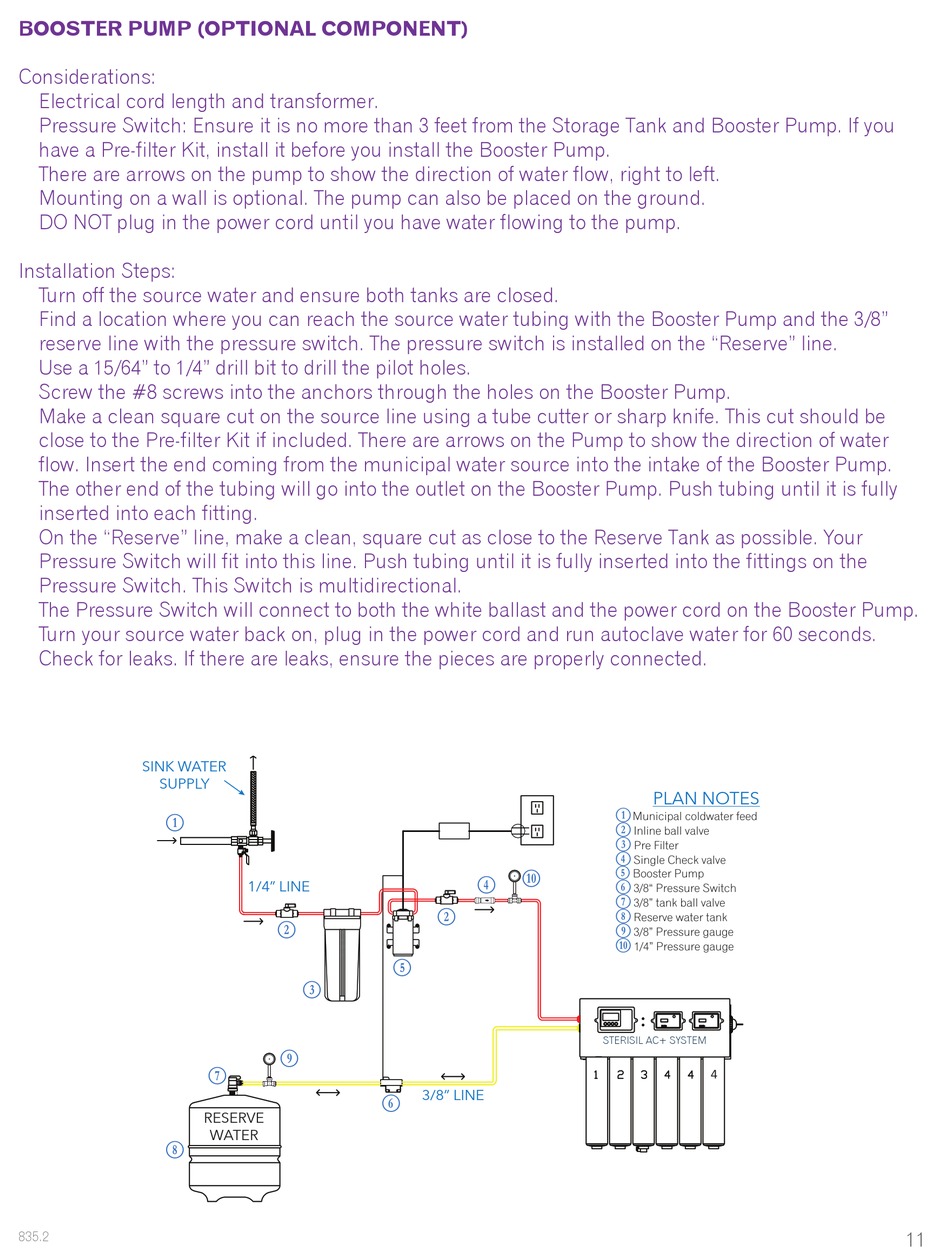

BOOSTER PUMP (OPTIONAL COMPONENT)
Considerations:
• Electrical cord length and transformer.
• Pressure Switch: Ensure it is no more than 3 feet from the Storage Tank and Booster Pump. If you
have a Pre-filter Kit, install it before you install the Booster Pump.
• There are arrows on the pump to show the direction of water flow, right to left.
• Mounting on a wall is optional. The pump can also be placed on the ground.
• DO NOT plug in the power cord until you have water flowing to the pump.
Installation Steps:
• Turn off the source water and ensure both tanks are closed.
• Find a location where you can reach the source water tubing with the Booster Pump and the 3/8"
reserve line with the pressure switch. The pressure switch is installed on the "Reserve" line.
• Use a 15/64" to 1/4" drill bit to drill the pilot holes.
• Screw the #8 screws into the anchors through the holes on the Booster Pump.
• Make a clean square cut on the source line using a tube cutter or sharp knife. This cut should be
close to the Pre-filter Kit if included. There are arrows on the Pump to show the direction of water
flow. Insert the end coming from the municipal water source into the intake of the Booster Pump.
The other end of the tubing will go into the outlet on the Booster Pump. Push tubing until it is fully
inserted into each fitting.
• On the "Reserve" line, make a clean, square cut as close to the Reserve Tank as possible. Your
Pressure Switch will fit into this line. Push tubing until it is fully inserted into the fittings on the
Pressure Switch. This Switch is multidirectional.
• The Pressure Switch will connect to both the white ballast and the power cord on the Booster Pump.
• Turn your source water back on, plug in the power cord and run autoclave water for 60 seconds.
• Check for leaks. If there are leaks, ensure the pieces are properly connected.
SINK WATER
SUPPLY
B
I
835.2
1/4" LINE
C
D
J
H
RESERVE
WATER
K
E
C
F
3/8" LINE
G
PLAN NOTES
B
Municipal coldwater feed
C
Inline ball valve
D
Pre Filter
E
Single Check valve
F Booster Pump
G
3/8" Pressure Switch
H
3/8" tank ball valve
I
Reserve water tank
J
3/8" Pressure gauge
K
1/4" Pressure gauge
STERISIL AC+ SYSTEM
STERISIL® SYSTEM
