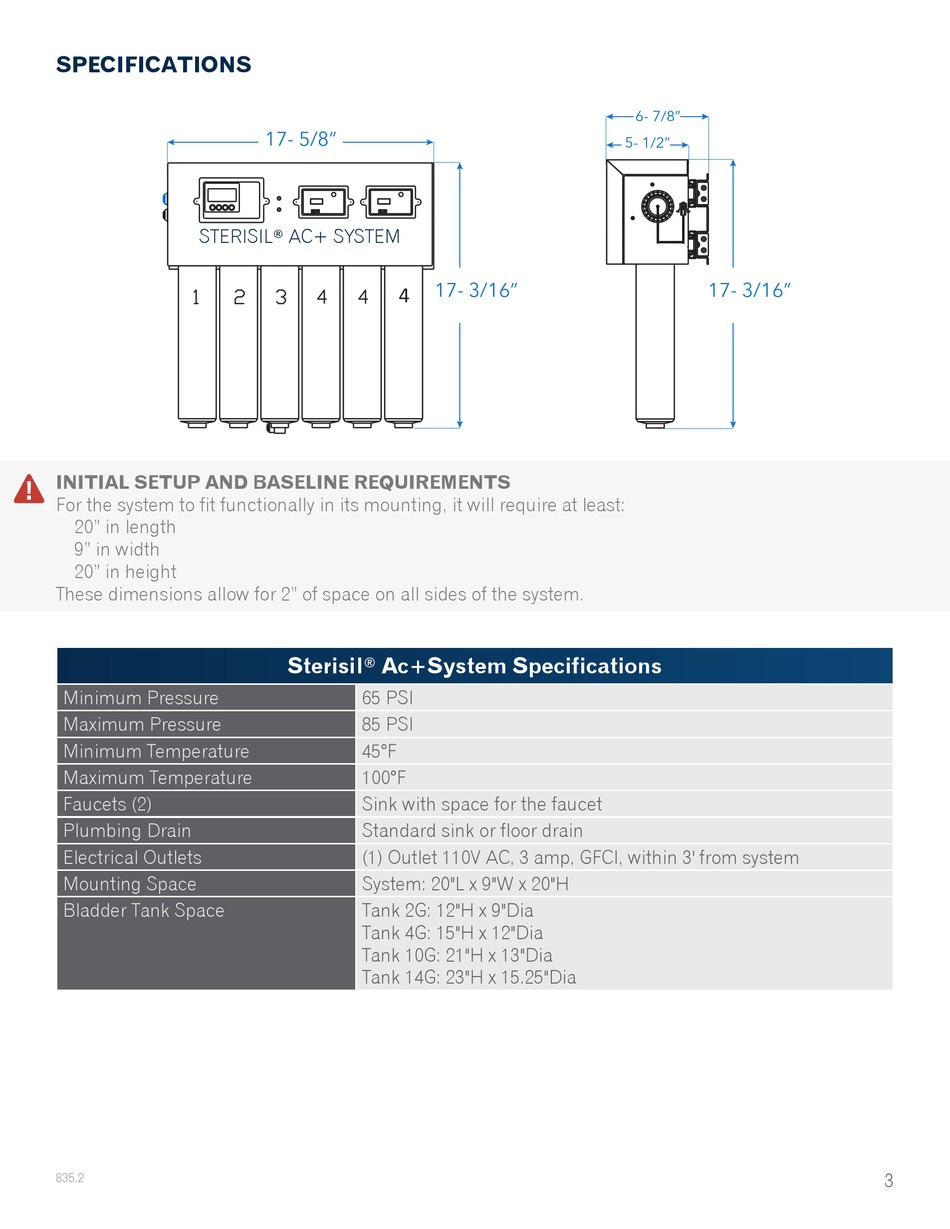

SPECIFICATIONS

STERISIL® AC+ SYSTEM
STERISIL SYSTEM
INITIAL SETUP AND BASELINE REQUIREMENTS
For the system to fit functionally in its mounting, it will require at least:
• 20" in length
• 9" in width
• 20" in height
These dimensions allow for 2" of space on all sides of the system.
Minimum Pressure
Maximum Pressure
Minimum Temperature
Maximum Temperature
Faucets (2)
Plumbing Drain
Electrical Outlets
Mounting Space
Bladder Tank Space
835.2
17- 5/8"
®
17- 3/16"
4
Sterisil® Ac+System Specifications
65 PSI
85 PSI
45°F
100°F
Sink with space for the faucet
Standard sink or floor drain
(1) Outlet 110V AC, 3 amp, GFCI, within 3' from system
System: 20"L x 9"W x 20"H
Tank 2G: 12"H x 9"Dia
Tank 4G: 15"H x 12"Dia
Tank 10G: 21"H x 13"Dia
Tank 14G: 23"H x 15.25"Dia
6- 7/8"
5- 1/2"
17- 3/16"
