Operation; Extending The Awning - Lippert Components Solera Owner's Manual

Operation

Extending the Awning

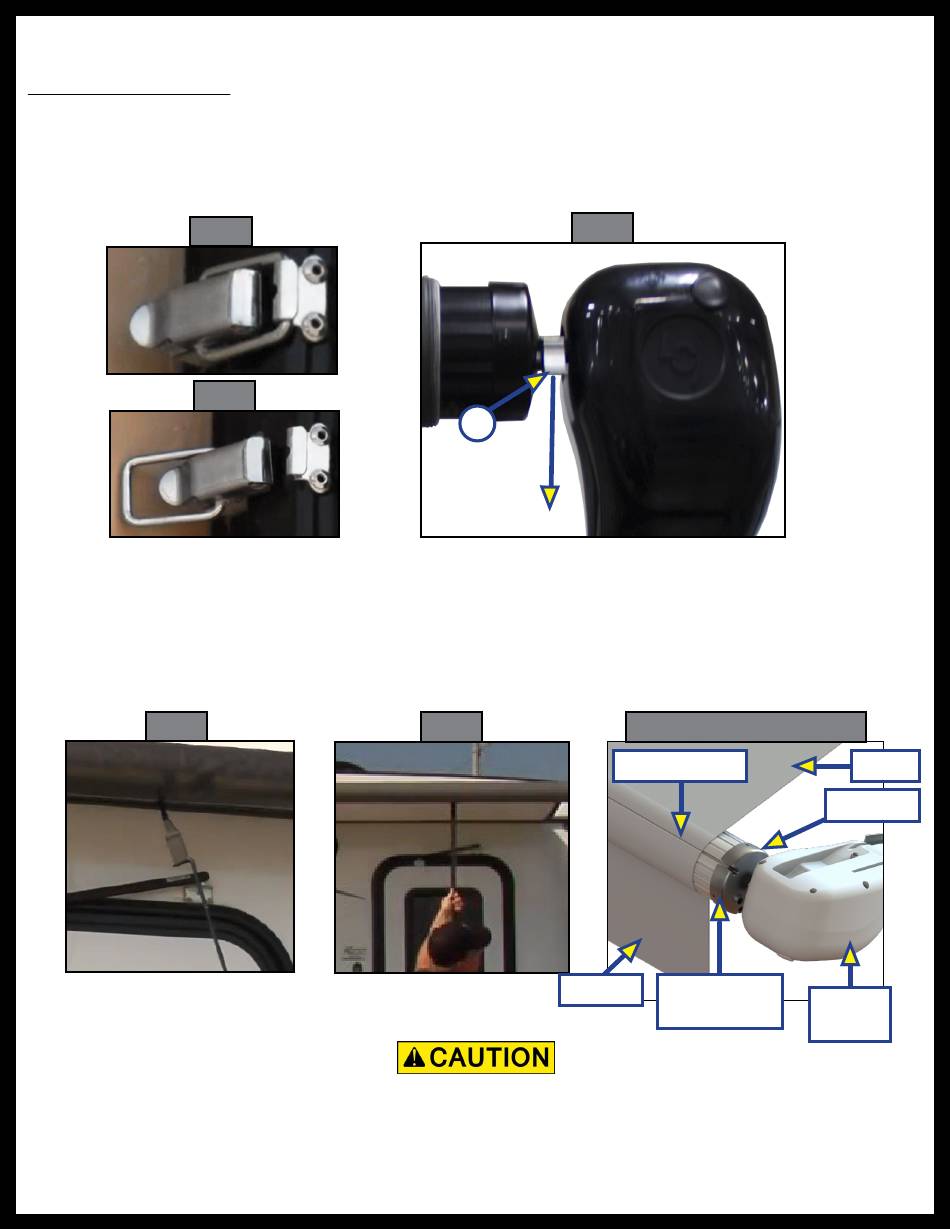

1. Locate the locking latch (Fig. 1), if equipped, and unlock the latch (Fig. 2).
NOTE: This latch is optional and may or may not be installed on one or both support arms.
2.
Using the pull rod, place the "L" end of the rod on top of the cam lock (Fig. 3A) and pull down on the lock
to release it (Fig. 3).
Fig. 1
Fig. 2
3. Insert the pull rod into the pull strap (Fig. 4).
4.
Pull strap to chest height using the pull rod. Using hands to grasp the strap, walk the awning outward,
keeping in front of the roll tube at all times (Fig. 5).
NOTE: Extension is considered complete when the fabric is completely unrolled, the valance seam is visible
and a section of the roll tube is exposed (Fig. 6). The exposed part of the roll tube will be under the
awning upon full extension. Also, check to make sure the cam lock is on top of the roll tube.
Fig. 4
Tying the roll tube down once extended will not allow the free floating support arms to work as
5.
Do NOT tie down the roll tube, which would restrict proper support arm movement.
Rev: 02.15.19
Fig. 5
designed and may cause damage to the awning or RV.
Fig. 3
A
Fig. 6 - Complete Extension
Valance Seam
Valance
Page 3
Roll Tube
Exposed Roll
Awning
Tube Section
Head
Fabric
CCD-0001400
