ASSEMBLING AND USE
GB
Page 3 of 22
INSTRUCTIONS
PLUS91S - PLUS91N
PLUS91SE - PLUS91SA - G800A69

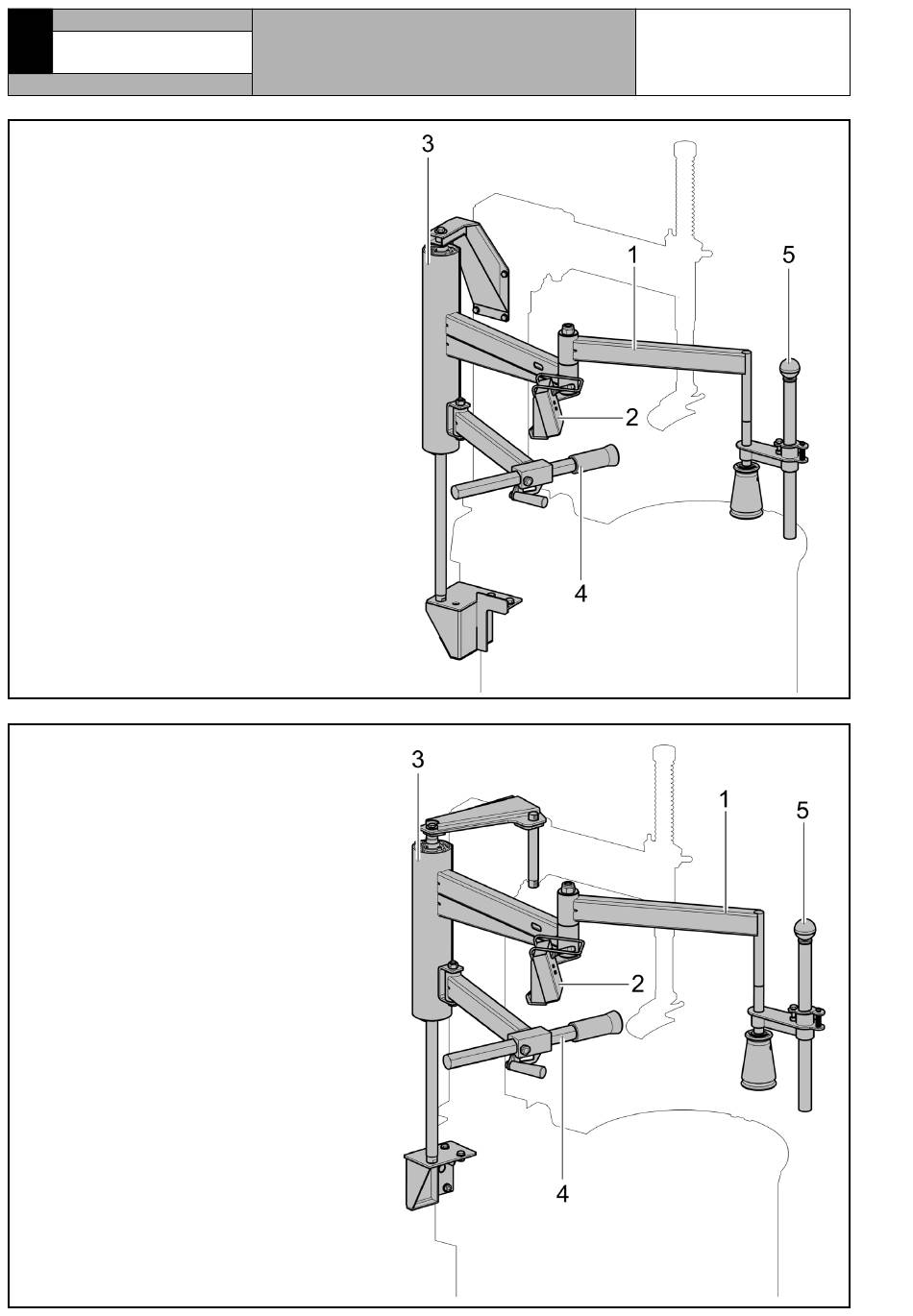

FIG. 1 - PLUS91S DEVICE
KEY
1 – Rotary bead depressing unit
2 – Control unit
3 – Pneumatic cylinder
4 – Pressing roll - bead lifting
5 – Entrainer G1000A98 (if required)
FIG. 2 - PLUS91N DEVICE
KEY
1 – Rotary bead depressing unit
2 – Control unit
3 – Pneumatic cylinder
4 – Pressing roll - bead lifting
5 – Entrainer G1000A98 (if required)
