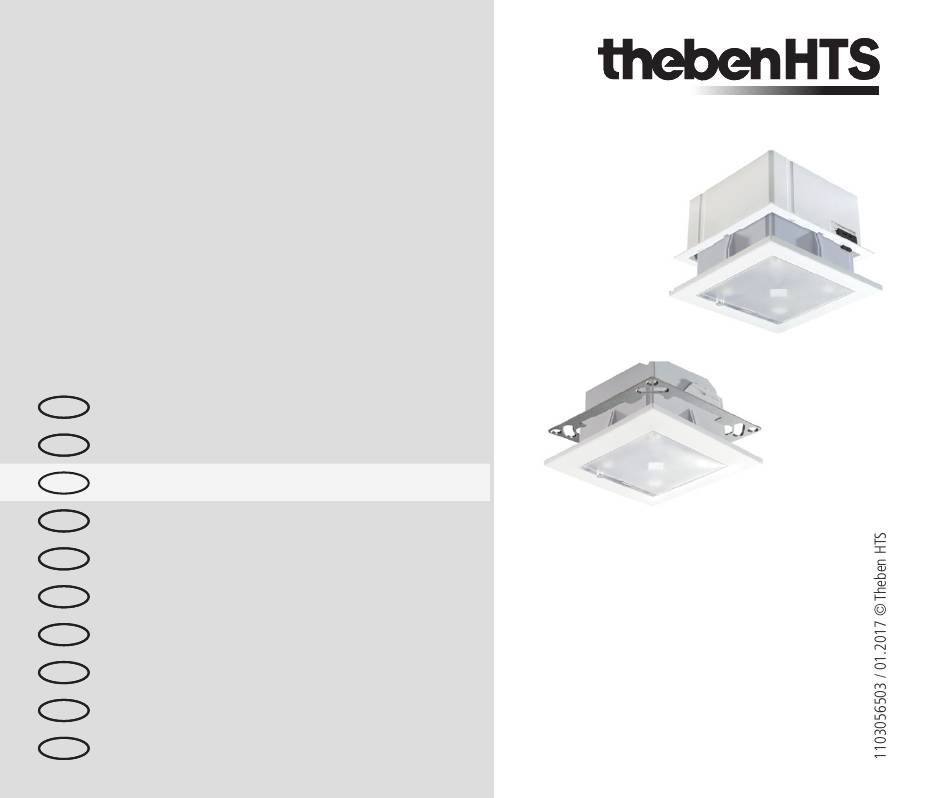

- Page 1 Presence detector PlanoCentro 000-A-230V PlanoCentro 000-E . . PlanoCentro 000-U . . Art. Nr. 204 0 . . . Bedienungsanleitung Bedienungsanleitung Notice d'utilisation Notice d'utilisation Operating Manual Operating Manual Manual de instrucciones Manual de instrucciones Istruzioni per l'uso Istruzioni per l'uso Gebruikshandleiding Gebruikshandleiding Bruksanvisning...
-
Page 2: Table Of Contents
English Operating Manual Presence detector PlanoCentro 000-A-230V PlanoCentro 000-E . . PlanoCentro 000-U . . Table of contents 1. Safety ......59 8. -
Page 3: Safety
Thank you for purchasing a Theben HTS presence detector and putting your trust in us. 1. Safety CAUTION! Danger of death through electric shock or fire! Installation should only be carried out by a qualified electrician! Work done on electrical installations may only be conducted by an authorised electrician or... -
Page 4: Function And Performance
2. Function and performance The presence detector series PlanoCentro is intended for ceiling mounting. ● Installation in suspended ceilings (false ceilings) ● Installation in flush-mounted junction box (set into concrete ceiling) Devices are available in the delivery unit with matching assembly sets for ceiling installation and flush-mount ceiling installation. - Page 5 2.1 Scope of delivery Ceiling installation 1 Presence detector with installation protection cover (removable) 2 PlanoCap (terminal cover) 3 PlanoFix E (installation frame) 4 Strap, 6 pieces 5 PlanoCover (frame) 6 Template for ceiling cut out 7 Assembly instruction Flush-mounted installation 1 Presence detector with installation protection cover (removable) 2 PlanoFix U (installation plate)
-
Page 6: Installation
3. Installation 3.1 Presence detection The ideal installation height is between 2.0 - 3.5 m. The sensitivity of the detector reduces with higher installation heights. The presence detector requires a clear view of people in order to clearly detect people. Offices, mobile partition walls, plants, hanging lighting etc. can hinder (shadowing) the pres- ence detector. - Page 7 3.2 Ceiling installation Ceiling installation of the presence detector takes place via the PlanoFix E installation frame and straps in the cut out ceiling element. PlanoFix E installation frame 1. Draw ceiling cut out (A hinge is integrated into the top of the packaging) ...
- Page 8 Monitoring the presence detector 1. Connect wires, see technical data page 76. 2. Fasten cable to the strain relief clamps and remove the excess 3. Fasten the PlanoCap 4. Make sure the locks on the PlanoFix E are open ...
- Page 9 3.3 Flush-mounted ceiling installation Flush-mounted ceiling installation of the presence detector takes place via PlanoFix U in a flush mounted socket. Details about the flush mounted socket can be found in the technical data page 78, section flush mount installation. The screws included are intended for installation in the flush- mounted socked.
-
Page 10: Connection / Operation Mode
4. Connection / Operation mode The presence detector PlanoCentro 000 can be used in combination with a master device such as PlanoCentro 101 to implement parallel connections. ● Master - slave parallel switching 4.1 General parallel connecting The parallel signal is sent via P-terminal and also received. Every detector, regardless of whether it is master or slave, sends the presence signal via P-terminal. - Page 11 4.2 Master-Slave parallel circuit operation Several detectors switch one lighting group ● The Master switches the lighting. All other detectors are slaves. ● Presence detection through all detectors together. ● Light measurement only with master. ● Setting parameters on the Master. Detection sensitivity can also be set on the Slave. ●...
- Page 12 P P S1 time delay for channel A light at the Master to impulse. ● Use the same phase for all devices. ● Staircase time switch e.g. Theben ELPA 1 ELPA 1 4.4 Detector as staircase lightning timer ● Master switched direct lighting.
-
Page 13: Start-Up
5. Start-up The detector is delivered ready for operation with basic settings. The specifications are guide values. The management remote control SendoPro is available as an option for start-up. It enables remote setting of all parameter values. See chapter 6 page 71. 5.1 Basic settings Parameter Value... - Page 14 5.3 Behaviour on switching on Every time the voltage is switched on, the detector goes through the start-up phase, which is indicated by the LED. The presence detector runs through several tests during the start-up phase. If the tests run without any problems, then the presence detector switched to normal operation mode.
-
Page 15: Parameters
6. Parameters The basic settings can be adjusted and optimised using the SendoPro management remote control. The following parameters are available with the PlanoCentro 000-A-230V: Parameter Page Operation mode Normal / test presence / test light Detection sensitivity (PIR) Value range in increments Reduction of detection sensitivity when monitoring Value range in increments 6.1 Adjustment with the remote control... -
Page 16: Read-Out Data
6.3 Detection sensitivity Level Sensitivity The detector has 5 sensitivity levels. The basic setting is the mid- less sensitive dle level (3). A level can be selected with the SendoPro manage- ment remote control. Interim value By selecting the operation mode test presence, the set sensitivity Standard level is not changed. -
Page 17: Test-Mode
8. Test-Mode The PlanoCentro has a test mode. ● Test presence, page 73 The test mode can only be started with voltage supply. 8.1 Test presence The test presence serves to test presence detection and parallel switching. The test presence can activated directly on the presence detector (without power up) or with the SendoPro management remote control. - Page 18 Test response - The parallel signal is transmitted via the P-terminal. - Room monitoring responds normally as in normal mode. Commands and adjustable parameters During test mode the following commands are possible with the SendoPro management remote conrol: - Terminate test presence - Activate basic settings (Reset) - Change detection sensitivity - Change reducing sensitivity with room monitoring...
-
Page 19: Control Commands
9. Control commands Control commands are available as follows: Test presence See chapter 8.1 page 73 Restart The detector restarts. Setting values are retained. Restore basic settings Set settings and configuration to factory settings. -
Page 20: Diagnostics
10. Diagnostics 10.1 Status information Diagnostic and statistic information can be read-out by the SendoPro management remote control. Further information is available in the SendoPro operating instructions. 10.2 Malfunction information Malfunction information can be read with the SendoPro management remote control. Error display Solution Hardware malfunction... -
Page 21: Troubleshooting
11. Troubleshooting Fault Cause Malfunction blinking Malfunction during start-up phase or during operation; device is not fully (4x per second) functional! Press reset, if the malfunction blinking remains, prompt a diagnostic, see page 76. 11.1 LED display Description Blinking in 1 second The presence detector is in the start-up phase. -
Page 22: Technical Data
12. Technical data Presence detector PlanoCentro 000-A-230V Detection angle horizontal / vertical 360° Recommended installation height 2 - 3.5m Detection range 3.5m installation height 64 m (8 x 8 m) seated persons 100 m (10 x 10 m) moving Mains voltage 230V ±10% Frequency 50Hz... - Page 23 Ceiling installation (false ceilings) Installation type PlanoFix E installation frame Ceiling cut out 100 x 100 mm ± 1 mm Ceiling strength up to approx. 26 mm Flush-mounted installation (concrete ceiling) Installation type PlanoFix U , flush-mounted junction box Flush-mounted junction box, Agro/Kaiser 115 x 115 x 100 mm, 9908.01/1298-07 PlanoFix U (installation plate)
- Page 24 Item numbers 204 0 102 PlanoCentro 000-EWH, Installation set, white 204 0 103 PlanoCentro 000-EBK, Installation set, black 204 0 104 PlanoCentro 000-ESR, Installation set, silver 204 0 202 PlanoCentro 000-UWH, flush-mounted installation set, white 204 0 203 PlanoCentro 000-UBK, flush-mounted installation set, black 204 0 204 PlanoCentro 000-USR, flush-mounted installation set, silver 204 0 000...
-
Page 25: Dimension Drawings
13. Dimension drawings 13.1 Ceiling installation PlanoCentro 000-E.. 100 x 100 ± 1 13.2 Flush-mount installation PlanoCentro 000-U.. -
Page 26: Warranty Declaration
Theben HTS presence detectors are manufactured and tested for quality with greatest of care and most modern technology. Theben HTS AG thus guarantees smooth function with correct use. Should a malfunction appear, Theben HTS AG guarantees within the scope of the General Terms and Conditions: Please notice specifically: ●... - Page 27 Subject to alteration and printing errors.
- Page 28 Fax +49 (0) 74 74 692 - 207 hotline@theben.de Theben HTS AG Im Langhag 7b, CH - 8307 Effretikon Tel. +41 (0)52 355 17 00 Fax +41 (0)52 355 17 01 www.theben-hts.ch Please find the contact addresses for additional countries on www.theben.de...
