2. Fix t he t hree s upplied s crews h alf-­‐deep t o t he c eiling, l eaving e nough s pace t o h ook t he c amera b ody.
3. Connect t he c orresponding p ower c able, n etwork c able, a udio a nd a larm c ables.
4. Align t he s crew h oles t o t he i nserted s crews, h ook t he c amera b ody t o t he s crews, a nd r oute t he c amera
body t o s ecure t he c amera w ith t he s crews.
5. Hammer t he h alf-­‐deep s crews i nto t he c eiling t otally.
6. Install t he c amera c over t o t he c amera b ody, a nd f ix t hem b y t ightening t he l ock s crew o n t he c amera
cover.
10225 Westmoor Drive, Suite 300, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC
Hardware Install Manual | V ISIX 3 60 N etwork C amera

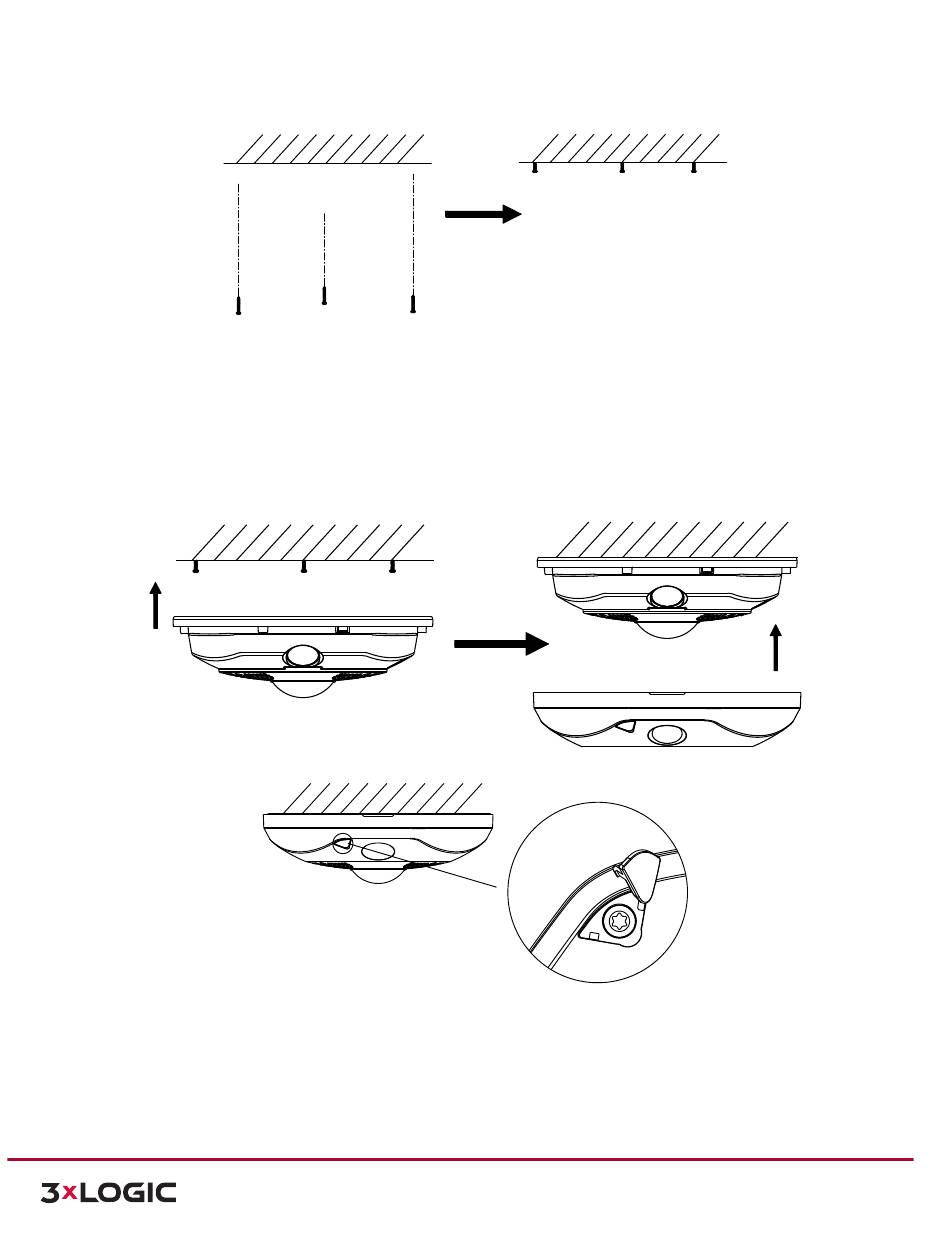

Figure 2 -­‐2 Fix t he S crews
Figure 2 -­‐3 Install t he C amera
Figure 2 -­‐4 Tighten t he L ock S crew o n t he C amera C over
