FireClass FC421CP-I Fixing Instructions

FC421CP-I

Call Point Removal

How to remove the FC421CP-I
1 Remove the four fixing screws used to lock
the callpoint to the backbox.
2 Place the edge of a large flat bladed screw-
driver into the slot between the callpoint
cover and the backbox (see item 1 in Fig 3).
1
Fig. 3: FC421CP-I Removal
1 – Screwdriver inserted into slot
3 Gently twist until the latches are disengaged.
4 Pull the cover away from the backbox.

Ordering Information

Component Ordering Numbers
FC421CP-I Outdoor 514.800.806
CP with isolator
Table 3: Ordering Information
FIRECLASS Fire detection system

CPR Information

0832
Tyco Fire & Security GmbH,
Victor von Bruns-Strasse 21,
8212 Neuhausen am Rheinfall,
Switzerland
15
DoP-2015-4170
EN 54-11 and EN 54-17
Manual callpoint with Short-Circuit Isolator
for fire detection & fire alarm systems for
buildings
Type A, Indoor
FC421CP-I
Essential Characteristics
EN54-11
Nominal activation conditions / Sensitivity
and Performance under fire conditions: Pass
EN54-17
Performance under fire conditions: Pass
EN54-11 and EN54-17
Operational reliability: Pass
Durability of operational reliability tempera-
ture resistance: Pass
Durability of operational reliability; vibration
resistance: Pass
Durability of operational reliability; humidity
resistance: Pass
Durability of operational reliability; corrosion
resistance: Pass
Durability of operational reliability; electrical
stability: Pass
120.515.224_FC-D-421CPI-F, doc. version 4.0, 9. November 2018
© 2018 Johnson Controls. All rights reserved. All specifications and
other information shown were current as of document revision date and
are subject to change without notice.
www.fireclass.net
Tyco Fire & Security GmbH, Victor von Bruns-Strasse 21, 8212
Neuhausen am Rheinfall, Switzerland
FIRECLASS Fire detection system
FC421CP-I Outdoor Weatherproof Resettable
Callpoint
97.5 1
2

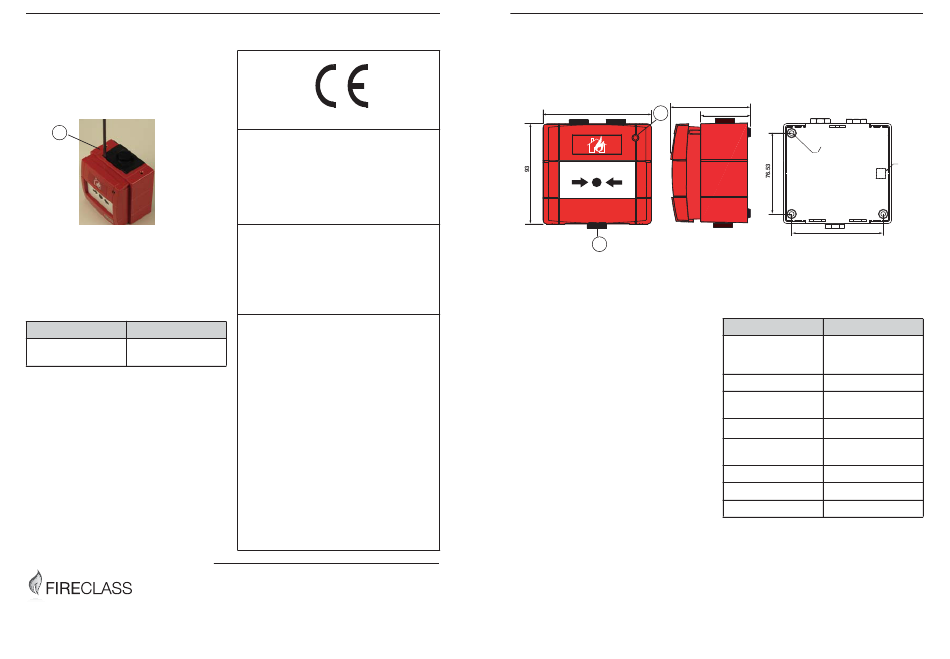

Fig. 1: FC421CP-I Outdoor Weatherproof Resettable Callpoint - Overall and Fixing Dimensions
1 – Short Circuit Isolator Activation (Yellow) and Alarm Indicator LED (Red)
2 – Test/Release Key Access
3 – Earth Continuity Terminal (Internal)

Introduction

The FC421CP-I Weatherproof Addressable
Resettable Callpoint is an outdoor manual call-
point.
The callpoint is designed to monitor and signal
the condition of a switch contact that is operated
by activating the resettable element.
The FC421CP-I is fitted onto a standard KAC
weatherproof backbox, which is supplied with
the callpoint.
The FC421CP-I has an integral short-circuit isola-
tor for monitoring the field wiring.
The FC421CP-I callpoint meets the requirements
of EN54 Pt. 11 and EN54 Pt. 17.

Technical Specification

Table 1 shows the technical specification infor-
mation.
Fixing instructions Doc. version 4.0
FC421CP-I
73
45.5
04.5 FIXING HOLES
(3) PLACES
83.8
Parameter Value
System Compatibility Use only with FIRE-
CLASS Fire Alarm
Controllers
Environment Outdoor applications
Operating
o
-25 to +70 C
Temperature
Storage Temperature o
-30 to +70 C
Operating Humidity Up to 95 %
non-condensing
Dimensions (HWD) 93 x 97.5 x 73 mm
Weight 240 g
IP Rating IP67
Table 1: Technical Specifications
1/4
