Bioness L300 Go User Manual
  1. Manuals
  2. Brands
  3. Bioness Manuals
  4. Personal Care Products
  5. L300 Go
  6. User manual

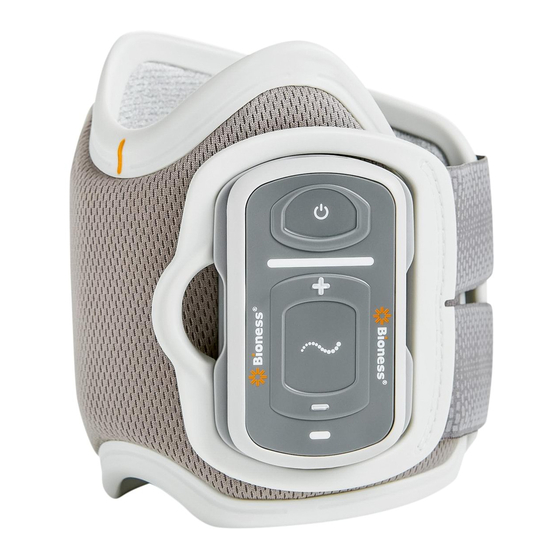

Bioness L300 Go User Manual

Functional electrical stimulation system
Hide thumbs Also See for L300 Go:
Table of Contents

Advertisement

Quick Links

Bioness Inc.
25103 Rye Canyon Loop
Valencia, CA 91355 USA
Telephone: 800.211.9136 or 661.362.4850
Email: info@bioness.com
Website: www.bioness.com
Bioness Europe B.V.
Stationsweg 41
3331 LR Zwijndrecht, The Netherlands
Telephone: +31.78.625.6088
Email: international@nl.bioness.com
Website: www.bioness.com
Rx Only
©2018 Bioness Inc.
602-00664-001 Rev. E
12/2018
MEDICAL - APPLIED CURRENT/ENERGY
EQUIPMENT AS TO ELECTRICAL SHOCK,
FIRE AND MECHANICAL HAZARDS ONLY IN
ACCORDANCE WITH:
ANSI/AAMI ES60601-1 (2005) + AMD 1 (2012)
CAN/CSA-C22.2No. 60601-1 (2014)
E489148

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L300 Go and is the answer not in the manual?

Questions and answers

Katharine Cortez
April 11, 2025

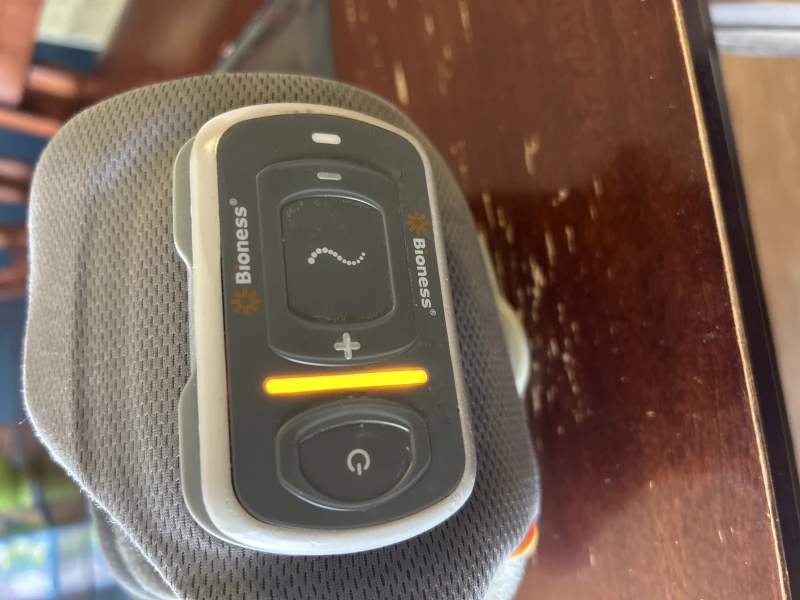

My L300 Go is showing a solid yellow light. What does it mean and how do it get rid of it?

User image 67f963d2351f8
0
1 comments:
Mr. Anderson
May 14, 2025

A solid yellow light on the Bioness L300 Go is not directly explained in the provided context. However, a red light with an error sound and a red square on the tablet typically indicates an "open electrode fault error." This can occur if:

1. An electrode is unplugged — ensure all electrodes are securely connected.
2. The wrong electrode type was selected — confirm the electrode type matches the system settings.

The solid yellow light may suggest a warning or fault, so checking electrode connections and settings may help resolve it.

If the issue persists, follow the device’s troubleshooting steps or refer to the manual.

This answer is automatically generated

0
Bradley Howey
March 9, 2025

Device will not connect to my iPhone help please

0
1 comments:
Mr. Anderson
March 9, 2025

The Bioness L300 Go device can be connected to an iPhone using the L300 Go Field Installer mobile application. This app is designed to install and update firmware for the L300 Go External Pulse Generators (EPGs). The connection likely uses Bluetooth Low Energy (BLE), but you should consult your airline before using it during a flight. For detailed setup instructions, refer to the app or contact Bioness Client Support.

This answer is automatically generated

0

Related Manuals for Bioness L300 Go

Summary of Contents for Bioness L300 Go

  • Page 1 Bioness Inc. 25103 Rye Canyon Loop Valencia, CA 91355 USA Telephone: 800.211.9136 or 661.362.4850 Email: info@bioness.com Website: www.bioness.com Bioness Europe B.V. Stationsweg 41 3331 LR Zwijndrecht, The Netherlands Telephone: +31.78.625.6088 Email: international@nl.bioness.com Website: www.bioness.com MEDICAL - APPLIED CURRENT/ENERGY EQUIPMENT AS TO ELECTRICAL SHOCK,...
  • Page 2 Functional Electrical Stimulation System USER’S GUIDE...
  • Page 4 List of Symbols Caution Warning Double Insulated (Equivalent to Class II of IEC 536) Type BF Applied Part(s) Non-Ionizing Radiation Date of Manufacture Manufacturer This Product Must Not Be Disposed of with Other Household Waste Refer to Instruction Manual/Booklet Re-Order Number Lot Number Serial Number Single Patient Use - To Prevent Cross Contamination...
  • Page 5 Bioness web site at: http://www.bioness.com/Patents.php Disclaimer Bioness Inc. and its affiliates shall not be liable for any injury or damage suffered by any person, either directly or indirectly, as a result of the unauthorized use or repair of Bioness Inc. products. Bioness Inc.

  • Page 6: Table Of Contents

    Conformity Certification ....................9 Travel and Airport Security ..................... 10 Electromagnetic Emissions .................... 10 Warnings ........................11 Chapter 4: L300 Go System Kits ..............13 Contents ......................... 13 Chapter 5: Device Description ............... 19 Lower Leg FS Cuff ......................19 Thigh FS Cuff ........................
  • Page 7 Removing the Thigh FS Cuff ..................47 Positioning the Foot Sensor ................... 47 Chapter 7: Operating the L300 Go System ........... 51 Turning the L300 Go System On/Off ................51 Selecting an Operating Mode Using the Control Unit ............. 51 Adjusting Stimulation Intensity ..................
  • Page 8 Removing the Thigh FS Cuff Straps ................70 Removing the Home Use Thigh Cuff Cover ..............71 Cleaning Your L300 Go System Components ..............72 Disinfecting Your L300 Go System Components ............74 Disinfecting the Control Unit and EPG ................75 Chapter 9: Pairing Replacement Part Components ........
  • Page 9 User's Guide...

  • Page 10: Chapter 1: Introduction

    The L300 Go System consists of a lower leg Functional Stimulation (FS) Cuff (available in regular and small sizes) with an External Pulse Generator (EPG), a thigh Functional Stimulation (FS) Cuff with an EPG, an optional Control Unit, and an optional Foot Sensor.
  • Page 11 • How to set up, operate, and maintain your L300 Go System. • Troubleshooting information. Be sure to review this guide with your clinician before using your L300 Go System. If you have any questions contact Bioness Technical Support at 800.211.9136, Option 3.

  • Page 12: Chapter 2: Safety Information

    • Users with a demand-type cardiac pacemaker, defibrillator or any electrical implant should not use the L300 Go System. • The L300 Go System should not be used on a leg where a metallic implant is directly underneath the electrodes.

  • Page 13: Warnings

    EPG. • Do not use the L300 Go System within three feet of short wave or microwave therapy equipment. Such equipment may produce instability in the EPG output.
  • Page 14 • Stop using the L300 Go System and consult your clinician if stimulation does not start at the correct time during gait. • Turn off the L300 Go System when at a refueling place. Do not use the L300 Go System near flammable fuel, fumes, or chemicals.
  • Page 15 • Turn off the L300 Go System before putting on the lower leg FS Cuff and/or thigh FS Cuff. Do not turn on the L300 Go System until the lower leg FS Cuff and/or thigh FS Cuff is fastened in place.

  • Page 16: Adverse Reactions

    • Do not modify or alter the system in any way and only use Bioness supplied or approved components and parts. • While the L300 Go (small lower cuff) is designed to fit and be worn by both pediatric users and small individuals, the system is intended to be managed and maintained only by adult users, adult caregivers and/or healthcare professionals.
  • Page 17 • Ventilate the skin by removing the lower leg FS Cuff and thigh FS Cuff for at least 15 minutes every three to four hours. If skin irritation or a skin reaction occurs, stop using your L300 Go System immediately and contact your clinician or dermatologist. You can also contact Bioness Technical Support at 800.211.9136, Option 3.

  • Page 18: Chapter 3: Environmental Conditions That Affect Use

    Portable and mobile RF communications equipment may affect the L300 Go System Conformity Certification The L300 Go System complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference.

  • Page 19: Travel And Airport Security

    L300 Go System will likely set off the security alarm. Be prepared to remove the L300 Go System so that security can scan it, or ask for the system to be scanned if you do not want to remove it. It is recommended that you carry a copy of your L300 Go System prescription.

  • Page 20: Warnings

    • Magnetic Charging Cord, model number LG4-7100, supplied by Bioness Inc. Warnings • Do not use the L300 Go System within three feet (1 meter) of shortwave or microwave therapy equipment. Such equipment may produce instability in the output of the EPG.
  • Page 21 User's Guide...

  • Page 22: Chapter 4: L300 Go System Kits

    • Central External Pulse Generator (EPG) • System Charger (with charging adapters) • Magnetic Charging Cable • Cuff Snap Covers (attached to the lower leg FS Cuff) • L300 Go User’s Guide • L300 Go User's Reference Card Chapter 4 - L300 Go System Kits...
  • Page 23 L300 Go System, Thigh Plus (Used with the Lower Leg System Kit) • Box Container • Thigh Functional Stimulation (FS) Cuff, Right or Left • Peripheral External Pulse Generator (EPG) • Magnetic Charging Cable • Thigh Cuff Strap Set with Buckles (Small) •...
  • Page 24 • Thigh Electrode Set • Home Use Cover • Home Use Strap Holder • Foot Sensor Pads (optional, not included) • Replacement Battery • L300 Go User’s Guide • L300 Go User's Reference Card Chapter 4 - L300 Go System Kits...
  • Page 25 Small Lower Leg FS Regular Lower Leg FS Control Unit Cuff with EPG Cuff with EPG Foot Sensor Lower Leg FSC Strap (example shown) Wire Concealers Cuff Snap Covers System Charger with Control Unit Neck Strap Replacement Battery Magnetic Charging Cord User's Guide...
  • Page 26 Thigh FS Cuff with EPG Thigh Cuff Strap with Buckles Electrode Set Home Use Thigh Home Use Thigh Cuff Cover Strap Holder Foot Sensor Pads Chapter 4 - L300 Go System Kits...
  • Page 27 User's Guide...

  • Page 28: Chapter 5: Device Description

    Chapter Device Description Lower Leg FS Cuff The lower leg FS Cuff is an orthosis that fits on the leg below the knee and is designed to facilitate upward movement of the foot and toes. See Figure 5-1. The lower leg FS Cuff is available in right and left configurations and in two sizes (regular and small).

  • Page 29: Lower Leg Epg And Thigh Epg

    The thigh FS Cuff houses the EPG cradle, the thigh EPG, and integrated electrodes. It also features a locator used to accurately place the thigh FS Cuff on the leg and to ensure repeatable electrode contact. The thigh FS Cuff has adjustable straps that hold the cuff in place.
  • Page 30 Electrical stimulation can be controlled from controls on the EPG or wirelessly with the Control Unit. The EPG snaps into the EPG cradle on the respective cuff and should only be removed from the cradle for maintenance and when cleaning the cuffs. The EPG has four buttons, two indicator lights, and a rechargeable battery (lithium ion 1000 mAh battery).
  • Page 31 The EPG provides vibration feedback when: • An EPG button is pushed • Stimulation is being delivered • When detecting an error Display Description Definition Flashing Green Light EPG is On, No Stimulation (Flashing) EPG is On and Delivering Flashing Yellow Light (Flashing) Stimulation EPG is On and Delivering...

  • Page 32: Control Unit

    Control Unit The Control Unit is an optional handheld controller that wirelessly communicates with the L300 Go System. The Control Unit sends and receives wireless communication from the EPG(s) and Foot Sensor. It is used to select an operating mode, turn stimulation on or off, fine-tune stimulation intensity, adjust EPG audio feedback volume, and monitor system performance.
  • Page 33 Control Unit Button Description Function Minus button Decrease Stimulation Intensity Volume button Turns the EPG Audio Feedback On or Off Mode button Selects Gait or Training mode Table 5-3: Control Unit Button Functions LCD Display Icons Description Function EPG- Ready State System is communicating with EPG, but icon not delivering stimulation...
  • Page 34 Table 5-4: Control Unit LCD Display Icon Descriptions L300 Go System Operating Modes The L300 Go System has three operating modes: Gait mode, Cycle Training mode, and Training mode. Gait Mode Gait mode is used when walking. In Gait mode, the motion sensors in the lower leg EPG detect the position of the lower leg and then send the appropriate signal to that EPG.

  • Page 35: Foot Sensor

    The Foot Sensor is an optional component of the L300 Go System. Your clinician will determine if you need to use the Foot Sensor with your L300 Go System. The Foot Sensor detects when your foot is in the air and on the ground, and communicates to the EPG(s).
  • Page 36 An optional Foot Sensor with a longer connection between the transmitter and sensor is also available. To purchase this option, please contact Bioness Technical Support at 800.211.9136, Option 3. Caution: The Foot Sensor has not been validated for use by individuals weighing more than 300 lbs (136 kg).

  • Page 37: Lower Leg Fs Cuff Electrodes And Electrode Bases

    FS Cuff liner or the electrode snaps directly into the lower leg FS Cuff liner. With a Small L300 Go System the following electrodes and electrode bases can be used (See Figure 5-6): • Small Quick Fit Electrode - Size A or B (as fitted by your clinician) •...
  • Page 38 Cloth Electrodes Electrode Base Figure 5-6: Electrodes and Bases for the Small Lower Leg FS Cuff With a regular L300 Go System the following electrodes and electrode bases can be used (See Figure 5-7): • Steering Cloth Electrode, left or right •...

  • Page 39: Thigh Fs Cuff Electrodes

    Caution: Use only the electrodes supplied by Bioness Inc. Caution: Do not use the L300 Go System without the electrodes attached to the lower leg FS Cuff. Steering Cloth Electrode Quick Fit Electrode Hydrogel Electrodes (right shown) (left shown) Round Cloth...

  • Page 40: Home Use Cuff Cover

    Figure 5-8: Electrodes for the Thigh FS Cuff Home Use Cuff Cover The Home Use Cuff Cover is for users with the thigh FS Cuff. The thigh FS Cuff inserts into the Home Use Cuff Cover. See Figure 5-9. The Home Use Cuff Cover touches the user's skin and is designed to increase aesthetics and comfort throughout the day.

  • Page 41: Home Use Strap Holder

    Home Use Strap Holder The Home Use Strap Holder is for users with the thigh FS Cuff. The thigh FS Cuff straps are inserted through the strap holder and it is positioned on the opposite side of the thigh FS Cuff. See Figure 5-10. The Home Use Strap Holder is designed to assist with keeping the straps in place while on the user's thigh.
  • Page 42 Figure 5-11. System Charger Set Caution: Use only the System Charger Set included in your L300 Go System Kit. Use of any other charger will damage the system. Caution: To completely disconnect the power input, the AC adapter portion of the System Charger Set must be disconnected from the main power supply.
  • Page 43 Figure 5-12: Snap Covers Foot Sensor Pads The Foot Sensor Pads are an accessory item that is not included with the L300 Go System Kit. A Foot Sensor Pad is placed under the insole of the shoe and the pressure sensor portion of the Foot Sensor attaches to the Foot Sensor Pad to prevent the pressure sensor from moving during activity.

  • Page 44: Chapter 6: Setup Instructions

    Setup Instructions Charging the L300 Go System The lower leg EPG and thigh EPG are the only L300 Go System components that can be charged. It is important to charge your EPG(s) daily and for at least four hours before a fitting/programming session. Bioness recommends charging the EPG(s) while attached to the FS Cuff(s).
  • Page 45 6. The battery indicator light on the EPG(s) is a solid green when the system is fully charged. Caution: Use only the charger included in your L300 Go System Kit. Use of any other charger will damage the system. Caution: Do not use the lower leg FS Cuff and/or thigh FS Cuff while the EPG is charging.

  • Page 46: Preparing The Skin

    If any irritation is present, do not put on the lower leg FS Cuff or thigh FS Cuff and contact your clinician. Wait for complete healing before using the L300 Go System. For optimal stimulation, the skin under the FS Cuff should be clean and healthy.
  • Page 47 4. Remove excess water from the Quick Fit Electrode with a cloth. See Figure 6-3. 5. Make sure the Cuff Snap Covers are in place. Align the orange and blue snaps on the Quick Fit Electrode with the orange and blue plug holes on the lower leg FS Cuff.
  • Page 48 Round Cloth Electrodes To attach the Round Cloth Electrodes: 1. Make sure the lower leg EPG is turned off. 2. If attached, gently pull the Cloth Electrodes from the electrode bases. Be careful not to detach the electrode bases from the lower leg FS Cuff. 3.
  • Page 49 Note: Remove and re-wet the Round Cloth Electrodes every time you remove the lower leg FS Cuff from your leg for more than one hour, and after every three to four hours of use. When wetting the electrodes, always remove them from the lower leg FS Cuff.
  • Page 50 5. Align the snaps on the Steering Electrode with the plug holes on the lower leg FS Cuff. See Figure 6-8. 6. Press firmly to snap the Steering Electrode into the lower leg FS Cuff. Make sure to press on the areas above all four snaps. See Figure 6-8. Figure 6-8: Aligning and Attaching the Steering Electrode Note: Remove and re-wet the entire Steering Electrode every time you remove the lower leg FS Cuff from your leg for more than one hour, and after every three to...
  • Page 51 Figure 6-9: Wetting the Electrode and Removing Excess Water 5. Align the snaps on the Thigh Cloth Electrodes to the plug holes on the thigh FS Cuff. See Figure 6-10. 6. Press firmly to snap the small Thigh Cloth Electrode to the thigh FS Cuff bottom panel.

  • Page 52: Positioning The Lower Leg Fs Cuff

    Positioning the Lower Leg FS Cuff To position the lower leg FS Cuff: 1. While seated, slightly straighten your leg as shown in Figure 6-11. The outline of your kneecap should be clearly defined. (Place your foot on a footrest, if necessary.) The Locator of the FS Cuff Fits Under the Kneecap...
  • Page 53 3. Hold the locator in place and lower the lower leg FS Cuff until it rests flush against your leg. 4. Grasp the handle of the lower leg FS Cuff strap. See Figure 6-13. With your thumb on the FS Cuff cradle, fasten the strap handle around the cradle. If using the small lower leg FS Cuff, you may need to use your other hand to stabilize the cuff on the leg.

  • Page 54: Testing The Position Of The Lower Leg Fs Cuff

    Testing the Position of the Lower Leg FS Cuff 1. Press the Power button on the lower leg EPG. The EPG will give vibration and audio feedback when turned on. 2. Press and hold the Stim button on the lower leg EPG for at least fifteen seconds.
  • Page 55 6. For individuals using the thigh FS Cuff in the hamstrings fitting position, insert the straps through the Home Use Strap Holder before fastening the straps. Once fastened place Home Use Strap Holder in the middle of the thigh. Figure 6-15: Correct Position of the Thigh FS Cuff Locator (Left) Quadriceps Position Shown, (Right) Hamstrings Position Shown Figure 6-16: Correct Position of the Thigh FS Cuff (Left) Quadriceps Fitting Position on Right Leg,...

  • Page 56: Testing The Position Of The Thigh Fs Cuff

    Testing the Position of the Thigh FS Cuff 1. Press the Power button on the thigh EPG. The EPG will give vibration and audio feedback when turned on. 2. Press and hold the Stim button on the thigh EPG for at least fifteen seconds. The EPG will deliver stimulation until the Stim button is released.
  • Page 57 Shoe Insole Gait Sensor Pad Heel Position Forefoot Position Figure 6-17: Placement of the Foot Sensor Pad Note: The image of the foot on the Foot Sensor pressure sensor will be reverse when in the forefoot position. Gait Sensor Pad Pressure Sensor Heel Forefoot...
  • Page 58 3. Register the new Foot Sensor to the lower leg EPG. Refer to the "Pairing Replacement Part Components" section in this guide for more information. Note: For L300 Go System, Thigh Stand-Alone users who require the use of the optional Foot Sensor, register the new Foot Sensor to the thigh EPG. Refer to the "Pairing Replacement Part Components"...
  • Page 59 User's Guide...

  • Page 60: Chapter 7: Operating The L300 Go System

    Turning the L300 Go System On/Off To turn on the L300 Go System, press the Power button once on the lower leg EPG and/or thigh EPG. The system will be in a ready state. All indicator lights will light up for a few seconds while the system performs a self-test.
  • Page 61 6. To select Training mode, press the Mode button on the Control Unit until the Training Indicator icon appears in the lower right corner of the digital display. See Figure 7-1. Selection Indicator Mode Button Indicator Gait Indicator Select Button Training Indicator Stim Button Figure 7-1: Selecting a Operating Mode on the Control Unit...

  • Page 62: Adjusting Stimulation Intensity

    See Figure 7-2. 2. The new level number will appear in the digital display on the Control Unit. Stimulation Intensity Number Plus Button Minus Button Figure 7-2: Adjusting Stimulation Intensity Chapter 7 - Operating the L300 Go System...

  • Page 63: Changing Audio And Vibration Feedback Using The Control Unit

    Control Unit. Vibration feedback can not be turned off with the Control Unit. The only way to turn off vibration feedback is to have your clinician disable the feature during the programming session for your L300 Go System. To turn off audio feedback during stimulation: 1.

  • Page 64: Turning Stimulation Off Using The Control Unit And Epg

    Note: Once the Stim button is pressed, the EPG(s) will be in a ready state in the last selected operating mode. If the Stimulation button is pressed again, the EPG will activate stimulation in the last operating mode that was selected before stimulation was turned off. Chapter 7 - Operating the L300 Go System...
  • Page 65 User's Guide...

  • Page 66: Chapter 8: Maintenance And Cleaning

    Charging The lower leg EPG and/or thigh EPG batteries should be charged daily. Charging instructions can be found in the "Charging the L300 Go System" section on page 35 of this guide. Note: The batteries must be charged before initial use, daily, and after extended storage.

  • Page 67: Replacing The Epg Battery

    Warning: For battery replacement, only use a lithium coin battery, CR2032. Use of an incorrect battery may result in damage to the L300 Go System. To replace the Foot Sensor battery: 1. Use the recessed area on the back of the Foot Sensor to pop out the battery lid cover.

  • Page 68: Replacing The Control Unit Battery

    Control Unit battery is low. Warning: For battery replacement only use a lithium coin battery, CR2032. Use of an incorrect battery may result in damage to the L300 Go System. Figure 8-2: Replacing the Control Unit Battery Chapter 8 - Maintenance and Cleaning...

  • Page 69: Replacing The Quick Fit Electrodes

    Caution: Use only the electrodes supplied by Bioness. Caution: Do not use your L300 Go System without electrodes. Caution: Do not fold or twist the Quick Fit Electrode. To replace the Quick Fit Electrodes: (See Figure 8-3) 1.
  • Page 70 Figure 8-3: Replacing the Quick Fit Electrode Remove and re-wet the entire Quick Fit Electrode every time you remove the lower leg FS Cuff from your leg for more than one hour, and after every three to four hours of use. When wetting the Quick Fit Electrode, always remove it from the lower leg FS Cuff.
  • Page 71 You will need to replace the Round Cloth Electrodes at least every two weeks or sooner if they become worn. Caution: Use only Round Cloth Electrodes supplied by Bioness. Caution: Do not use your L300 Go System without electrodes. To replace the Cloth Electrodes: 1. Make sure the lower leg EPG is turned off.

  • Page 72: Replacing The Hydrogel Electrodes

    You need to replace the hydrogel electrodes at least every two weeks. Caution: Use only Hydrogel Electrodes supplied by Bioness. Caution: Do not use your L300 Go System without electrodes. To replace the Hydrogel Electrodes: (See Figure 8-6)
  • Page 73 7. Remove the covers from the electrodes. Note: Save the covers to protect the electrodes between uses. When reapplying the covers, make sure the Bioness logo faces up. Note: If the electrode gel becomes dry, replace with a new electrode set.

  • Page 74: Replacing The Electrode Bases

    Replacing the Electrode Bases Depending on use, it may be necessary to replace the electrode bases after one year of use. Contact Bioness to purchase replacement electrode bases. For regular lower leg FS Cuff users, if you are switching from hydrogel to cloth electrodes, or from cloth electrodes to hydrogel electrodes, you will need to be seen by a trained clinician for a first fitting.

  • Page 75: Replacing The Steering Electrodes

    You will need to replace the Steering Electrodes at least every two weeks or sooner if they become worn. Caution: Use only the electrodes supplied by Bioness. Caution: Do not use your L300 Go System without electrodes. Caution: Do not fold or twist the Steering Electrode. User's Guide...
  • Page 76 To replace the Steering Electrodes: (See Figure 8-10) 1. Make sure the lower leg EPG and Control Unit are turned off. 2. Gently remove the used Steering Electrode from the lower leg FS Cuff. 3. Wet the electrode with water until they are saturated. 4.

  • Page 77: Replacing The Thigh Cloth Electrodes

    Caution: Use only the electrodes supplied by Bioness. Caution: Do not use your L300 Go System without the electrodes attached. To replace the Thigh Cloth Electrodes: (See Figure 8-11) 1. Make sure the thigh EPG and Control Unit are turned off.

  • Page 78: Removing The Epg

    Figure 8-11: Replacing the Thigh Cloth Electrodes Removing the EPG The lower leg EPG and the thigh EPG should only be removed for maintenance and to clean the lower leg FS Cuff and/or thigh FS Cuff. To remove the EPG: 1.

  • Page 79: Removing The Thigh Fs Cuff Straps

    Figure 8-12: Removing the EPG Removing the Thigh FS Cuff Straps The thigh straps can be removed from the thigh FS Cuff for cleaning or for strap replacement. To remove the thigh straps: 1. Push the attached thigh strap buckle toward the thigh FS Cuff while making a twisting motion.

  • Page 80: Removing The Home Use Thigh Cuff Cover

    To reattach the thigh straps: 1. Align the strap buckle to the hook attached to the thigh FS Cuff panels. 2. Push the strap buckle with your thumbs toward the strap (direction away from the thigh FS Cuff). See Figure 8-14. 3.

  • Page 81: Cleaning Your L300 Go System Components

    Figure 8-15: Attaching the Home Use Thigh Cuff Cover Cleaning Your L300 Go System Components All L300 Go System components may be cleaned by carefully by wiping them with a damp cloth. The electrical components are not waterproof. Do not immerse them in water.
  • Page 82 To clean the lower leg FS Cuff: 1. Remove the lower leg EPG from the cradle. 2. Gently remove the electrodes from the electrode bases. Leave the electrode bases and snap covers attached to the lower leg FS Cuff. For hydrogel electrodes, reapply the electrode covers.

  • Page 83: Disinfecting Your L300 Go System Components

    The Control Unit neck strap is made of polyester and may be machine washed on a delicate cycle in cold water. Disinfecting Your L300 Go System Components Disinfecting the thigh FS Cuff The plastic parts of the thigh FS Cuff (the cuff without the Home Use Thigh Cuff Cover) may be disinfected using a combination of CaviWipes , per the manufacturer’s...

  • Page 84: Disinfecting The Control Unit And Epg

    L300 Go System components. Disinfecting the System Kit Carrying Case The L300 Go System Kit carrying case may be cleaned and low-level disinfected using 70% isopropyl alcohol (IPA) per the following instructions: 1. Wipe the entire surface of the System Kit carrying case with a cloth or wipe saturated with 70% IPA.
  • Page 85 4. Use additional new cloths or wipes saturated with 70% IPA as needed to keep the entire surface of the carrying case wet for 10 minutes. Note: Follow the Bioness instructions for the specified contact time to ensure an effective bacteria kill.

  • Page 86: Chapter 9: Pairing Replacement Part Components

    Chapter Pairing Replacement Part Components The L300 Go System components must be paired to each other to communicate wirelessly. The EPG and Control Unit in your System Kit are already paired. Your clinician will pair the Foot Sensor (if applicable) to the other components during your fitting session.

  • Page 87: Pairing A New Control Unit To The Epg

    5. Once paired, the EPG State Indicator Light will flash green on both EPGs. Pairing a New Control Unit to the EPG 1. For individuals using the lower leg FS Cuff, make sure the lower leg EPG is turned on. For individuals using the Thigh Stand-Alone FS Cuff, make sure the thigh EPG is turned on.
  • Page 88 3. Remove the battery from the Foot Sensor, wait 120 seconds (two minutes), and then insert the battery back into the Foot Sensor. Make sure to press firmly on the battery cover to snap back into place. 4. Press the Foot Sensor pressure sensor to activate the sensor. 5.
  • Page 89 User's Guide...

  • Page 90: Chapter 10: Troubleshooting

    Error Code Descriptions When an error occurs with the L300 Go System the EPG will emit an audio alert and the Status Indicator Light on the EPG will display a flashing red light. The Control Unit LCD display will show a flashing Error Indicator icon and a flashing Numeric Indicator communicating the error code.
  • Page 91 Electrodes are shorted, cuff has an electrical short, or the hardware is not Shorted Electrode Fault functioning correctly. Stop using the L300 Go System and contact Bioness. Electrodes are worn or damaged. Replace any worn or damaged electrodes or electrode bases.

  • Page 92: Testing The Functionality Of The Alert Indicator

    5. To turn off the alert indicator press the Power button on the EPG. Note: If the EPG does not emit an audio alert and display a flashing red light, contact Bioness Client Relations Department at 800.211.9136, Option 3. Frequently Asked Questions...
  • Page 93 "Maintenance and Cleaning" chapter in this guide. What if my ankle is not moving (or my foot does not lift satisfactorily), and the L300 Go System is not indicating any errors? • Make sure the EPG(s) and Control Unit are turned off.
  • Page 94 How come my knee is not moving satisfactorily, and the L300 Go System is not indicating any errors? • Make sure the EPG(s) and Control Unit are turned off. • Reposition the thigh FS Cuff. • Make sure the straps are snug.
  • Page 95 I received a replacement component and was told I need to “pair” it. Why is pairing important and how do I pair a component? The L300 Go System components must be paired to each other to communicate wirelessly. When a Control Unit, EPG, or Foot Sensor is replaced, the new replacement component must be paired to the existing components.

  • Page 96: Chapter 11: Technical Specifications

    Chapter Technical Specifications Control Unit Specifications Internally powered, continuous operation with type BF applied Classification part(s) Operation Modes Gait, Training, and Clinician Battery Type Button cell lithium battery, CR2032, 3V, 240 mAh • Select button- to select an EPG • Mode button- to select an operating mode •...
  • Page 97 Control Unit Specifications Transport and Storage Conditions: • Temperature: -25°C to +55°C • Relative humidity: 5% to 90% • Pressure: 20 kPa to 106 kPa Environmental Ranges Operating Conditions: • Temperature: 5°C to 40°C • Relative humidity: 5% to 75% •...
  • Page 98 EPG Specifications • Status Indicator Light and Battery Indicator Light Indications • Audio and vibration feedback • “Beeps” for audio alerts • Length: 82 mm (3.2 in.) Dimensions • Width: 47 mm (1.9 in.) • Height: 15 mm (0.6 in.) Weight 60 grams Transport and Storage Conditions:...
  • Page 99 Pulse Parameters Pulse Balanced Biphasic Waveform Symmetric or Asymmetric Intensity (Peak) 0–100 mA, 1-mA resolution (positive phase) Maximum Intensity 16.5 mA (rms) (rms) Max Voltage 130 V Symmetric Positive Pulse Duration (µsec) Negative Pulse Duration (µsec) Interphase 50, 100, 200 Interval (µsec) Total Pulse Duration for...
  • Page 100 Total Pulse Duration for Interphase 1050 1250 Interval of 50 µsec Max Load 80000 ohm (Subject to max voltage limitation) Min Load 100 ohm Pulse Repetition 10–45 Hz, 5 Hz resolution Rate Gait Parameters Swing Control 0–100% of phase* time, 5% resolution Delay (%) Swing Control 0–100% of phase* time, 5% resolution...
  • Page 101 Cycle Training Parameters Ramp Up Not adjustable. Preset to 0 seconds. Ramp Down Not adjustable. Preset to 0 seconds. Max. Duration of Not adjustable. Preset to 2 seconds. Stimulation EPG Alert Onset Time Incorrect Stimulation Delay to Alert < 5 sec Communication Failure Delay to Alert <...
  • Page 102 Transport and Storage Conditions: • Temperature: -25°C to +55°C • Relative humidity: 5% to 90% • Pressure: 20 kPa to 106 kPa Environmental Ranges Operating Conditions: • Temperature: 5°C to 40°C • Relative humidity: 5% to 75% • Operating pressure: 80 kPa to 106 kPa IP52 Protection Against: •...
  • Page 103 • Distal panel, regular: 310 mm • Distal panel, large: 510 mm Weight Approximately 300 grams System Charger Specifications Use the medical Class II safety approved power supply provided/approved by Bioness with the following ratings: Input Voltage 100–240 V Current 0.5 A...
  • Page 104 • USB 1: 2.1 A Current • USB 2: 1.0 A Note: Do not use the L300 Go System while charging. Do not wear the lower leg FS Cuff or thigh FS Cuff while charging. Electrode and Electrode Base Specifications–Lower Leg FS Cuff •...
  • Page 105 • Surface area: 19.9 cm \ 28.2 cm Thigh FS Cuff Cloth Electrode Specifications Non-woven cloth Material Note: Use only electrodes provided by Bioness Inc. Proximal Oval: 130 mm x 75 mm Dimensions Distal Oval: 120 mm x 63 mm User's Guide...

  • Page 106: Chapter 12: Wireless Information

    Complies with IEC 60601-1-2 Complies with IEC 60601-2-10 • Quality of Service (QOS): The L300 Go System was designed and tested to have a response rate of 10-100ms latency depending on system configuration after the detection of a heel event.

  • Page 107: Electromagnetic Compatibility (Emc) Information

    Guidance and Manufacturer’s Declaration—Electromagnetic Emissions The L300 Go System is intended for use in the electromagnetic environment specified below. The customer or the user of the L300 Go System should assure that it is used in such an environment. Emissions Test Compliance Electromagnetic Environment —...
  • Page 108 Electromagnetic Immunity for All Equipment and Systems The L300 Go System is intended for use in the electromagnetic environment specified below. The customer or the user of the L300 Go System should assure that it is used in such an environment.
  • Page 109 If 70% UT (30% dip 70% UT (30% the user of the in UT) for 25 cycles dip in UT) for 25 L300 Go System cycles requires continued <5% UT (>95% dip operation during in UT) for 5 sec <5% UT (>95% dip...
  • Page 110 Guidance and Manufacturer’s Declaration—Electromagnetic Immunity The L300 Go System is intended for use in the electromagnetic environment specified below. The customer or the user of the L300 Go System should assure that it is used in such an environment. Immunity Test...
  • Page 111 RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the L300 Go System is used exceeds the applicable RF compliance level above, the L300 Go System should be observed to verify normal operation.
  • Page 112 Recommended Separation Distances Between Portable and Mobile RF Communications Equipment and the L300 Go System The L300 Go System is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the...
