APPENDIX A
Dimensions
Product Dimensions
Easidew
132mm

(5.19")

10mm ø27mm
(0.39")
(1.06")

10mm
(0.39")
132mm

(5.19")

10mm ø27mm
(0.39")
(1.06")

10mm
(0.39")
132mm

(5.19")

10mm ø27mm
(0.39")
(1.06")

10mm
(0.39")
18
5/8" Bonded Seal

46mm

(1.81")
27mm
(1.06")
A/F
5/8" UNF
ø25.4 x 2mm

(ø1 x 0.07")
G1/2" BSP Bonded Seal

46mm

(1.81")
27mm
(1.06")
A/F
G1/2" BSP
ø28.65 x 2.61mm

(ø1.12 x 0.10")
3/4" O-Ring

46mm

(1.81")
27mm
(1.06")
A/F
3/4" UNF
ø18.72 x 2.62mm

(ø0.75 x 0.09")

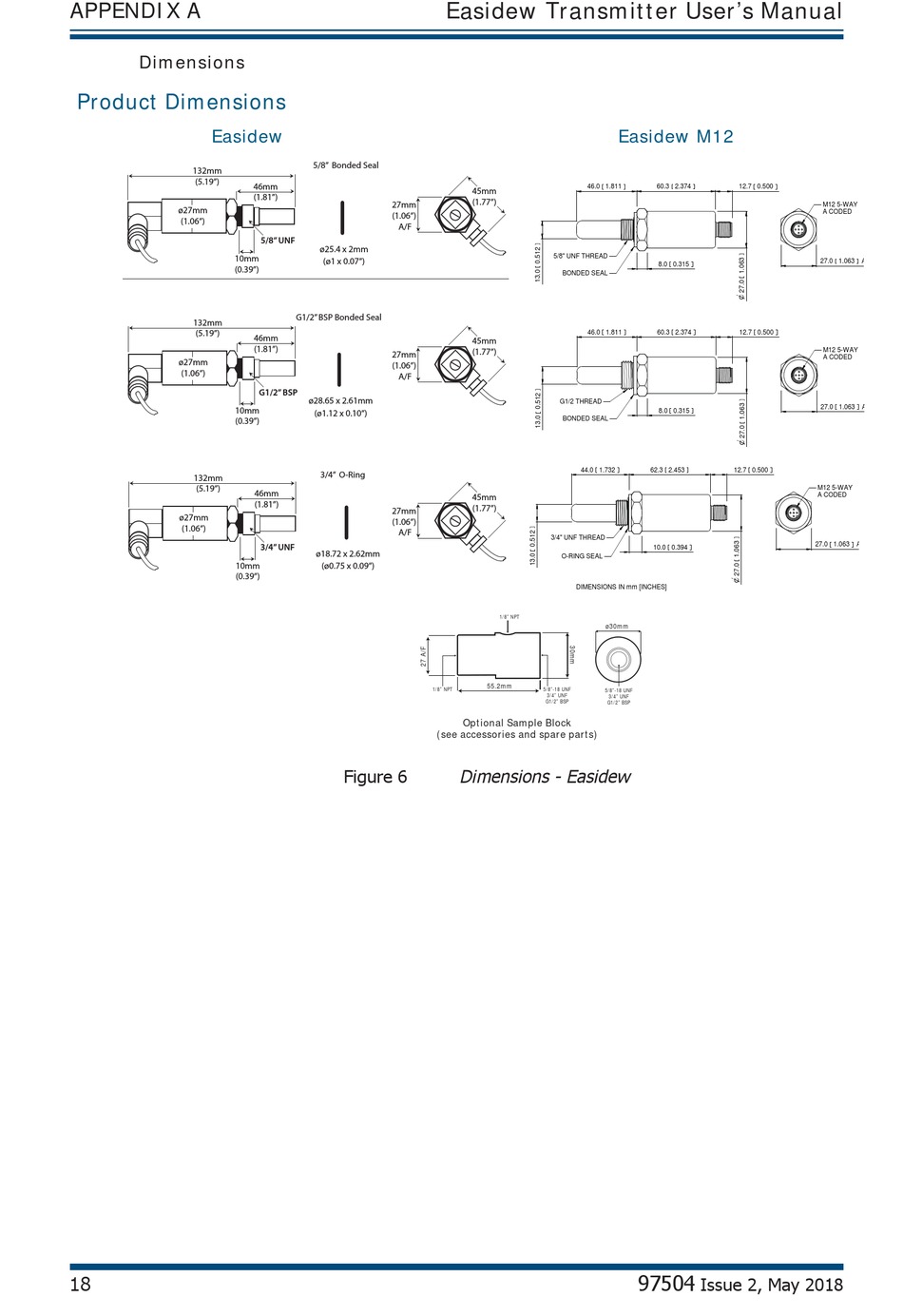

Figure 6
Easidew Transmitter User's Manual
46.0 1.811
45mm
(1.77")
5/8" UNF THREAD
BONDED SEAL
DIMENSIONS IN mm [INCHES]
46.0 1.811
45mm
(1.77")
G1/2 THREAD
BONDED SEAL
DIMENSIONS IN mm [INCHES]
44.0 1.732
45mm
(1.77")
3/4" UNF THREAD
O-RING SEAL
DIMENSIONS IN mm [INCHES]
1/8" NPT
ø30mm
55.2mm
1/8" NPT 5/8"-18 UNF
5/8"-18 UNF
3/4" UNF
G1/2" BSP
Optional Sample Block
(see accessories and spare parts)
Dimensions - Easidew
Easidew M12
60.3 2.374 12.7 0.500
8.0 0.315
60.3 2.374 12.7 0.500
8.0 0.315
62.3 2.453 12.7 0.500
10.0 0.394
3/4" UNF
G1/2" BSP
97504
Issue 2, May 2018
M12 5-WAY
A CODED
27.0 1.063 A
M12 5-WAY
A CODED
27.0 1.063 A
M12 5-WAY
A CODED
27.0 1.063 A
