Technical Parameters - MONI LOG EnDaL curve Manual

EnDaL curve/vi

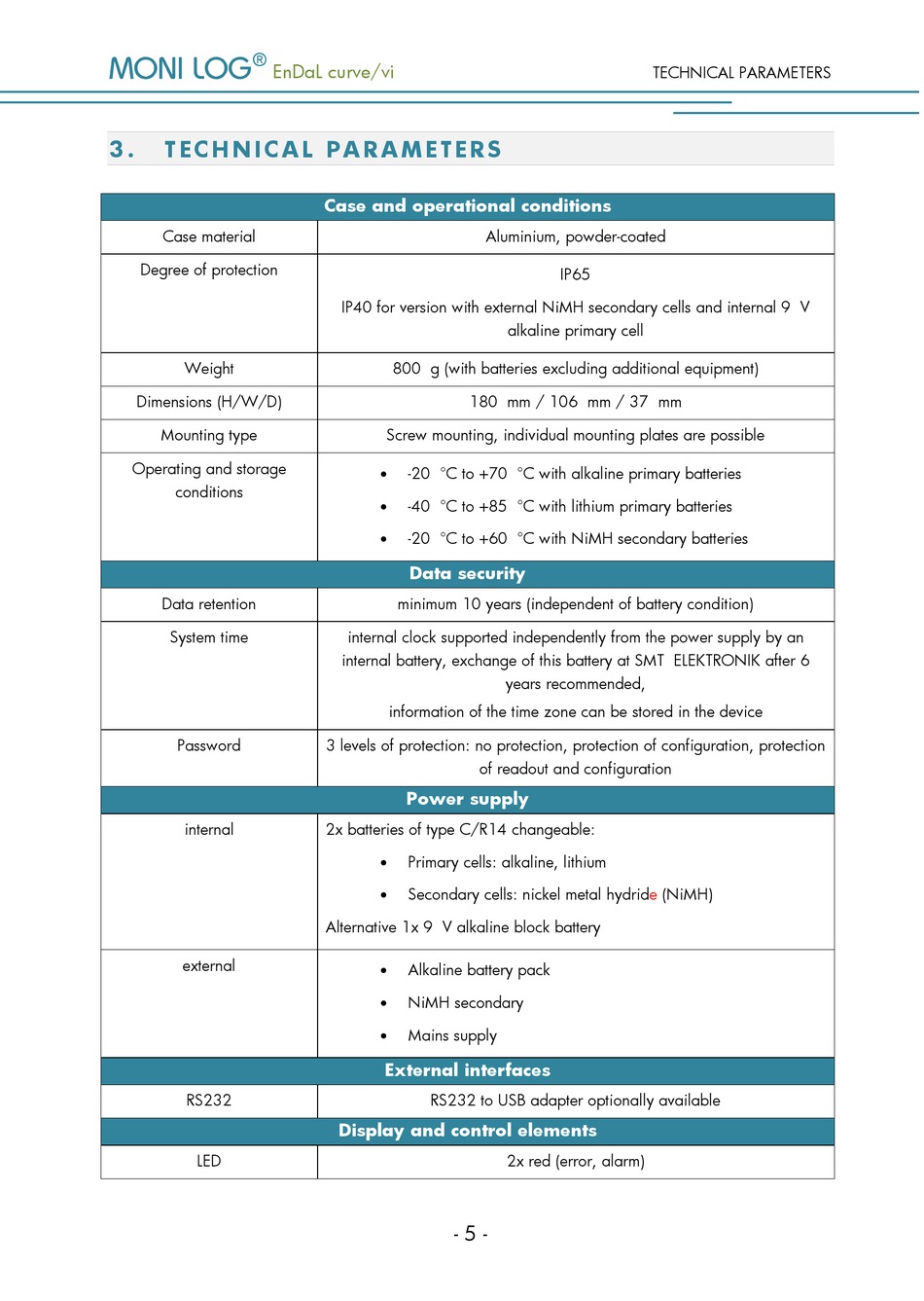

3 . T E C H N I C A L P A R A M E T E R S
Case material
Degree of protection
Weight
Dimensions (H/W/D)
Mounting type
Operating and storage
conditions
Data retention
System time
Password
internal
external
RS232
LED
Case and operational conditions
Aluminium, powder-coated
IP40 for version with external NiMH secondary cells and internal 9 V
800 g (with batteries excluding additional equipment)
180 mm / 106 mm / 37 mm
Screw mounting, individual mounting plates are possible
 -20 °C to +70 °C with alkaline primary batteries
-40 °C to +85 °C with lithium primary batteries

-20 °C to +60 °C with NiMH secondary batteries

Data security
minimum 10 years (independent of battery condition)
internal clock supported independently from the power supply by an
internal battery, exchange of this battery at SMT ELEKTRONIK after 6
information of the time zone can be stored in the device
3 levels of protection: no protection, protection of configuration, protection
of readout and configuration
Power supply
2x batteries of type C/R14 changeable:
 Primary cells: alkaline, lithium
 Secondary cells: nickel metal
Alternative 1x 9 V alkaline block battery
Alkaline battery pack

NiMH secondary

Mains supply

External interfaces
RS232 to USB adapter optionally available
Display and control elements
- 5 -

TECHNICAL PARAMETERS

IP65
alkaline primary cell
years recommended,
hydride (NiMH)
2x red (error, alarm)
