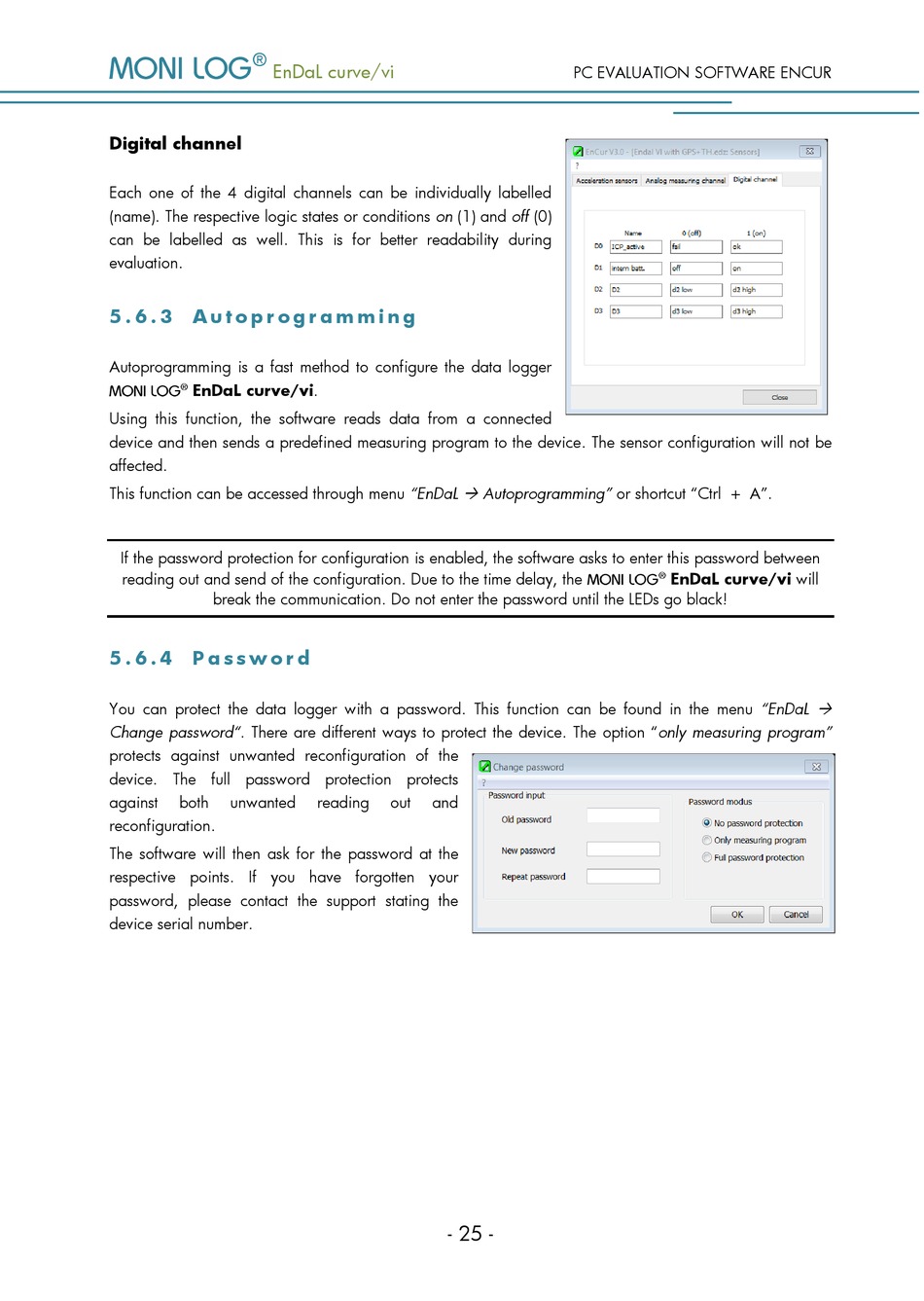

Autoprogramming; Password - MONI LOG EnDaL curve Manual

EnDaL curve/vi
Digital channel
Each one of the 4 digital channels can be individually labelled
(name). The respective logic states or conditions on (1) and off (0)
can be labelled as well. This is for better readability during
evaluation.
5 . 6 . 3 A u t o p r o g r a m m i n g
Autoprogramming is a fast method to configure the data logger
EnDaL curve/vi.
Using this function, the software reads data from a connected
device and then sends a predefined measuring program to the device. The sensor configuration will not be
affected.
This function can be accessed through menu "EnDaL
If the password protection for configuration is enabled, the software asks to enter this password between
reading out and send of the configuration. Due to the time delay, the
break the communication. Do not enter the password until the LEDs go black!
5 . 6 . 4 P a s s w o r d
You can protect the data logger with a password. This function can be found in the menu "EnDaL
Change password". There are different ways to protect the device. The option "only measuring program"
protects against unwanted reconfiguration of the
device. The full password protection protects
against both unwanted
reconfiguration.
The software will then ask for the password at the
respective points. If you have forgotten your
password, please contact the support stating the
device serial number.
Autoprogramming" or shortcut "Ctrl + A".

reading out and
- 25 -
PC EVALUATION SOFTWARE ENCUR
EnDaL curve/vi will

