4 . 5 M O U N T I N G I N F O R M A T I O N
Depending on the type of measurement you want to perform, attach the instrument to the goods
to be transported, inside the package or to the means of transport. To avoid unintentional shock
absorption and thus the measurement of insufficient acceleration values, you should attach the
EnDaL curve/vi as close as possible to the goods or package.
Shocks absorbing padding or instable assemblies distort the measurement results!
The available mounting accessories give you the following possibilities of fastening the instrument:
Direct mounting of the instrument (recommended method)
If the freight or its package is suited for direct mounting, there is no need to fasten a mounting plate. The
instrument is then fastened directly with 3 M5 cheese head screws with spring washer or similar fasteners.
This method ensures optimum transmission to the internal sensor.
Mounting with mounting plate
Fasten the mounting plate with the screws to the freight or
the means of transport. Then fasten the instrument to this
plate using the screws M5x50 and a locking element
(spring washer, lock washer).
Attachment with adhesive tape
This method of fastening is suited for smooth, non-porous surfaces and for short-term fastening. Apply two
double-sided adhesive strips onto the rear of the mounting plate of the
pull off the protective liner from the other side and stick the
surface of the freight (e.g. inside a container). The location can only be corrected by using new adhesive
tapes.
We urgently recommend securing the instrument additionally by tightening or tie-down straps!
Provide for clean, non-greasy surfaces!
- 11 -
DEVICE DESCRIPTION

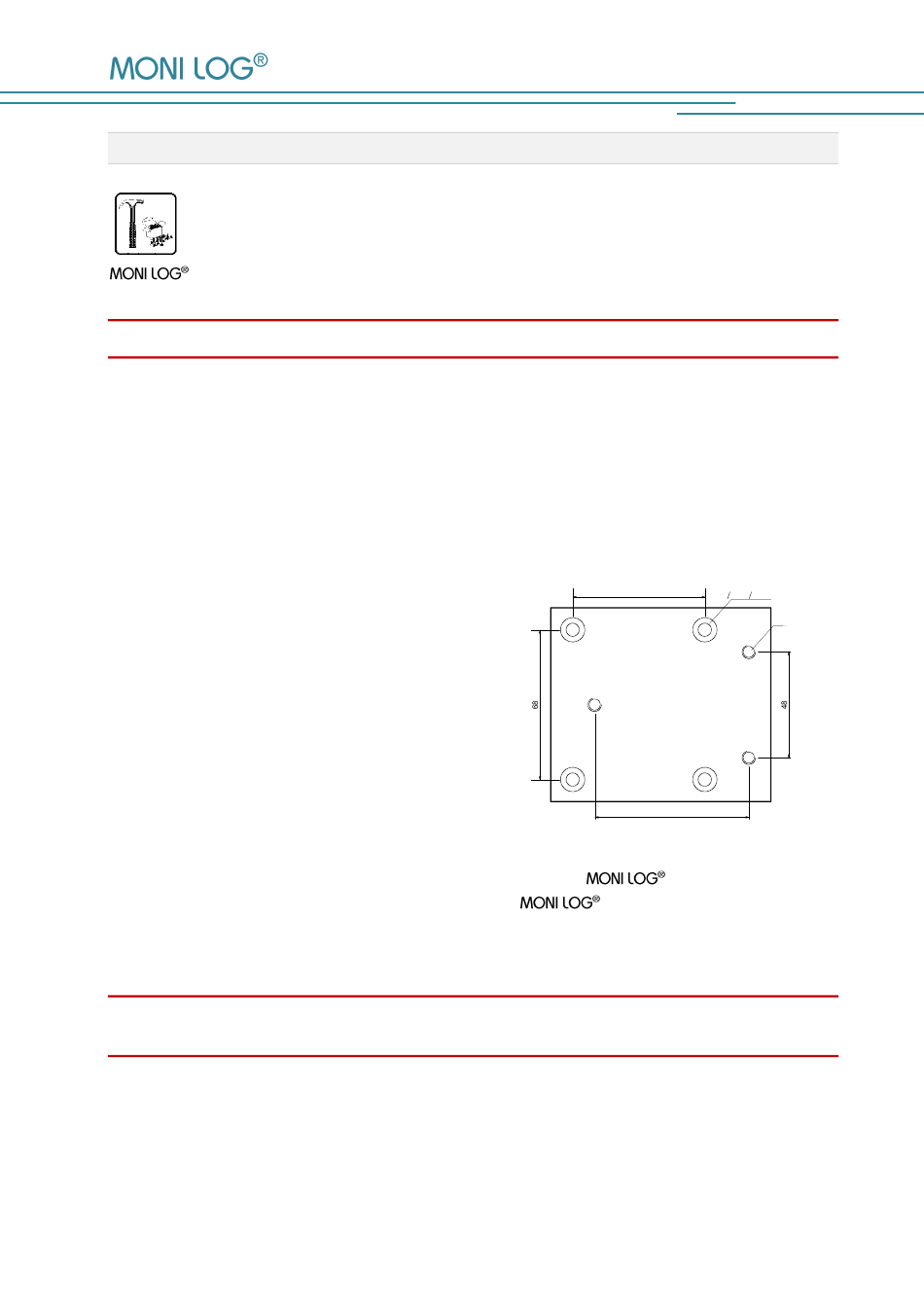

60
06,6 / 011x6,8
M5
70
EnDaL curve/vi. Now
EnDaL curve/vi onto a suitable
