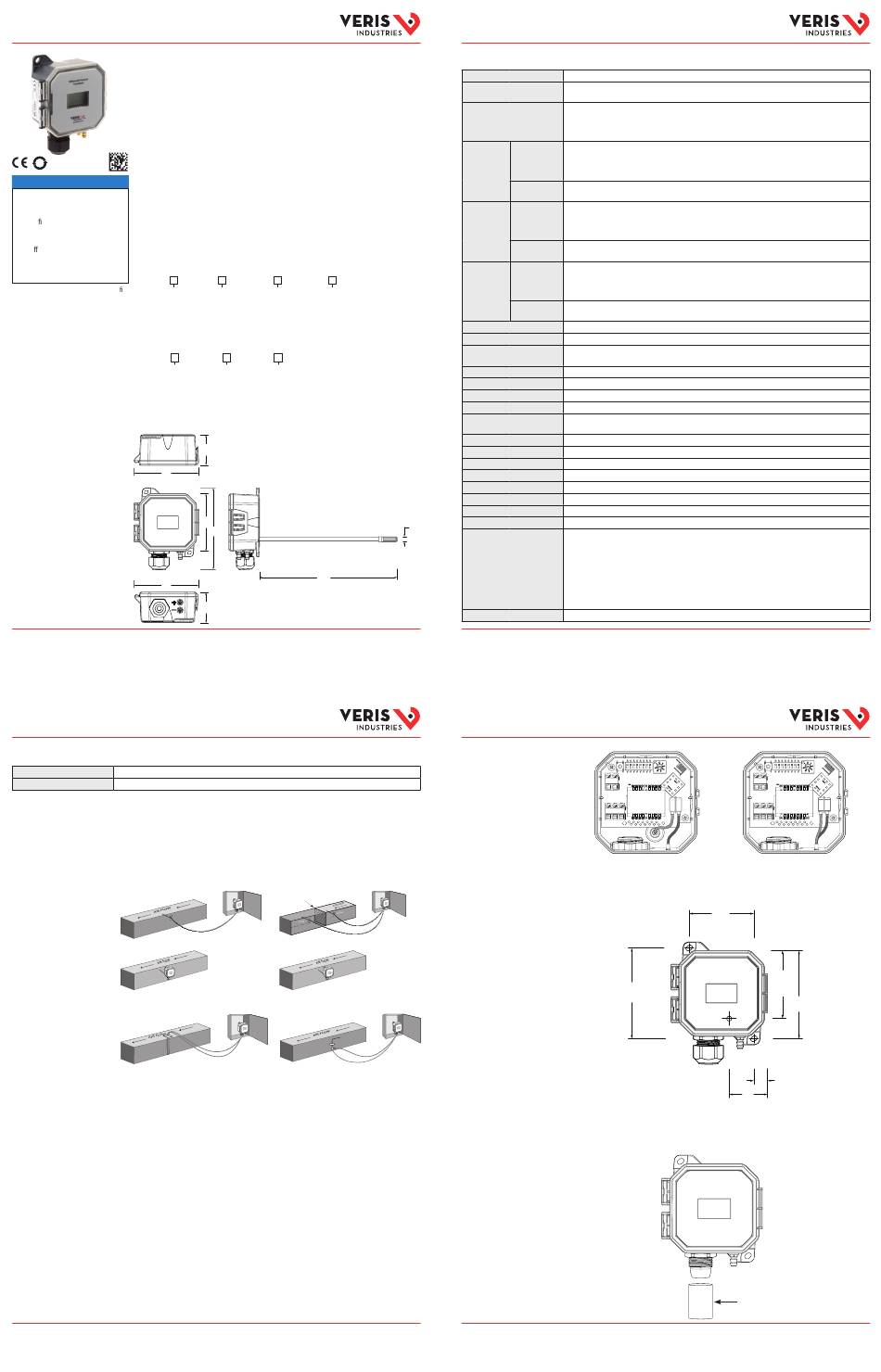

Veris PX3 Series Installation Manual

Installation Guide
Pressure Monitoring
Differential Pressure / Air Velocity Transducer
Product Overview
PX3
The PX3 transducer can measure either air pressure or velocity with the flip of a switch.
Patent Pending
The PX3 is available in three installation configurations: duct, panel or universal. Duct and
50
panel models have two pressure and velocity options: 0-1 in. WC / 0-3,000 ft/min or
1-10 in. WC / 3,000-6,000 ft/min with four field-selectable sub-ranges. The universal
NOTICE
model comes in one pressure/velocity range: 0-10 in. WC / 0-7,000 ft/min with seven
• This product is not intended for life or
safety applications.
field-selectable sub-ranges for pressure and eight for velocity. All variants are available
• Do not install this product in hazardous
with and without display. The PX3 has an IP65/NEMA 4 environmental rating and a 5-year
or classi ed locations.
limited warranty.
• Read and understand the instructions
before installing this product.
• Turn o all power supplying equipment

Product Identification

before working on it.
• The installer is responsible for
Enclosure
conformance to all applicable codes.
PX3
If this product is used in a manner not speci ed
D = Duct
by the manufacturer, the protection provided
P = Panel
by the product may be impaired. No
responsibility is assumed by the manufacturer
*8-point calibration
for any consequences arising out of the use of
this material.
Local Display
PX3U
L = LCD Display
X = No Display
*16-point calibration
Dimensions
in. (mm)
3.5
(88)
3.5
(88)
Z207504-0D Page 1 of 8 ©2018 Veris Industries 12345 SW Leveton Drive, Tualatin, OR 97062 USA / 800.354.8556 or +1.503.598.4564 / support@veris.com
Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Aerospond, Veris, and the Veris 'V' logo are trademarks or registered trademarks of Veris Industries, L.L.C.
in the USA and/or other countries. Other companies' trademarks are hereby acknowledged to belong to their respective owners.
Installation Guide
Pressure Monitoring
Specifications (cont.)
Flammability Rating UL 94 5VA fire retardant ABS, plenum rated
Limited Warranty 5 years
EMC Conformance: EN 61000-6-3 and A1 Class B, EN 61000-6-1.
* Class 2/II power source.
** For measured values between 200 and 7000 ft/min (1 and 35 m/s).
Installation, Wiring
1. Plan the installation. Panel or duct mount?
& Configuration
Static Pressure
Panel Installations
Duct Installations
Velocity with VFXP Probe
For velocity applications, use the VFXP Series air velocity/measurement probe or AA18,
AA19 or AA20 velocity pitot tubes. For use with the PX3P (panel) and PX3U (universal)
models in Velocity mode only. Sold separately.
2. For duct mount applications, thread the probe into the back of the device housing, as
shown in the dimensional drawing.
3. Configure the internal tubing for the selected installation method as described below.
Duct mount tubing configuration:
a. Connect the right-side tube to the rear brass barb marked as "-" on the
underside of the device housing.
b. Connect the left-side tube to the probe in the back of the device housing.
Panel mount tubing configuration:
a. Connect the right-side tube to the rear brass barb marked as "-" on the
underside of the device housing.
b. Connect the left-side tube to the front brass barb marked as "+" on the
underside of the device housing.
Z207504-0D Page 3 of 8 ©2018 Veris Industries 12345 SW Leveton Drive, Tualatin, OR 97062 USA / 800.354.8556 or +1.503.598.4564 / support@veris.com
Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Aerospond, Veris, and the Veris 'V' logo are trademarks or registered trademarks of Veris Industries, L.L.C.
in the USA and/or other countries. Other companies' trademarks are hereby acknowledged to belong to their respective owners.
PX3 Series
Local Display NIST Certificate* Range
L = LCD Display N = NIST 01 = Pressure: 0 to 1 in. WC / 0 to 250 Pa
X = No Display X = None Velocity: 0 to 3,000 ft/min / 0 to 15 m/s
02 = Pressure: 1 to 10 in. WC/250 to 2,500 Pa
Velocity: 0 to 6,000 ft/min / 0 to 30 m/s
NIST Certificate* Range
N = NIST* 05 = Pressure: 0 to 10 in. WC / 0 to 2,500 Pa
X = None Velocity: 0 to 7,000 ft/min / 0 to 35 m/s
1.6
(42)
3.1
(78)
4.4
(112)
7.4
(188)
1.6
(42)
Differential Pressure
FILTER
Velocity with AA18/AA19/AA20 Pitot Tube
Installation Guide
Pressure Monitoring
TM

Specifications

Media Compatibility Dry air or inert gas
Input Power Three-wire Volt mode: 24 Vac or 12-30 Vdc*
Two-wire mA mode: 12-30 Vdc*
Output Power Field-selectable: 2-wire, loop-powered 4-20 mA
Minimum input voltage for 4 to 20 mA operation: 250 Ω loop = 12 Vdc; 500 Ω loop = 19 Vdc
(DC only, clipped and capped), 24 Vac/dc or 3-wire 0-5V/0-10V
Minimum load resistance for Volt operation: 5 kΩ
01 Pressure Pressure
Unidirectional: 0.1/0.25/0.5/1 in. WC FS, switch selectable
Range Mode Bidirectional: ±0.1/±0.25/±0.5/±1 in. WC FS, switch selectable
Unidirectional: 25/50/100/250 Pa FS, switch selectable
Bidirectional: ±25/±50/±100/±250 Pa FS, switch selectable
Velocity
500/1,000/2,000/3,000 ft/min
Mode 2.5/5/10/15 m/s
02 Pressure Pressure Unidirectional: 1.0/2.5/5/10 in. WC FS, switch selectable
Range Mode Bidirectional: ±1.0/±2.5/±5/±10 in. WC FS, switch selectable
Unidirectional: 250/500/1,000/2,500 Pa FS, switch selectable
Bidirectional: ±250/±500/±1,000/±2,500 Pa FS, switch selectable
Velocity 3,000/4,000/5,000/6,000 ft/min
Mode 15/20/25/30 m/s
05 Pressure Pressure Unidirectional: 0.1/0.25/0.5/1/2.5/5/10 in. WC FS, switch selectable
Range Mode
Bidirectional: ±0.1/±0.25/±0.5/±1/±2.5/±5/±10 in. WC FS, switch selectable
Unidirectional: 25/50/100/250/500/1,000/2,500 Pa FS, switch selectable
Bidirectional: ±25/±50/±100/±250/±500k/±1,000/±2,500 Pa FS, switch selectable
Velocity 500/1,000/2,000/3,000/4,000/5,000/6,000/7,000 ft/min
Mode 2.5/5/10/15/20/25/30/35 m/s
Response Time Standard: T95 in 20 sec, Fast: T95 in 2 sec, DIP switch selectable
Mode Unidirectional or bidirectional, DIP switch selectable
Display (Option) Pressure mode: Signed 3-1/2 digit LCD, indicates pressure, overrange indicator
Velocity mode: Signed 4-1/2 digit LCD, indicates velocity, overrange indicator
Proof Pressure 3 psid (20, 600 Pa)
Burst Pressure 5 psid (34, 500 Pa)
Pressure Mode Accuracy ±1% FS (combined linearity and hysteresis)
Velocity Mode Accuracy ±90 ft/min (±0.45 m/s) plus 5% of measured value**
Temperature Effect 1" (250 Pa) models: 0.05%/°C; 10" (2,500 Pa) models: 0.01%/°C
(Relative to 25 °C) 0 to 50 °C (32 to 122 °F)
Zero Drift (1-year) 1" (250 Pa) models: 2.0% max.; 10" (2,500 Pa) models: 0.5% max.
Zero Adjust Pushbutton auto-zero and digital input (2-position terminal block)
Operating Environment 0 to 60 °C (32 to 140 °F)
Altitude of Operation 0 to 3,000 m
Pollution Degree 2
Humidity Range 100% RH, non-condensing
Mounting Location For indoor use only.
Fittings Brass barb; 0.24" (6.1 mm) o.d.
0.3
(7)
Suggested Cable Shielded:
Belden #9939 (22 AWG) 3-wire multi-conductor (or similar)
Belden #9940 (22 AWG) 4-wire multi-conductor (or similar)
Belden #9939 (22 AWG) 5-wire multi-conductor (or similar)
Unshielded:
Belden #8443 (22 AWG) 3-wire multi-conductor (or similar)
Belden #8444 (22 AWG) 4-wire multi-conductor (or similar)
Belden #8445 (22 AWG) 5-wire multi-conductor (or similar)
Environmental Rating IP65, NEMA 4
0518 Z207504-0D Page 2 of 8 ©2018 Veris Industries 12345 SW Leveton Drive, Tualatin, OR 97062 USA / 800.354.8556 or +1.503.598.4564 / support@veris.com
Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Aerospond, Veris, and the Veris 'V' logo are trademarks or registered trademarks of Veris Industries, L.L.C.
in the USA and/or other countries. Other companies' trademarks are hereby acknowledged to belong to their respective owners.
Installation Guide
Pressure Monitoring
TM
Installation, Wiring
& Configuration (cont.)
4. Mount the transducer (see the screw hole diagram below).
5.
0518 Z207504-0D Page 4 of 8 ©2018 Veris Industries 12345 SW Leveton Drive, Tualatin, OR 97062 USA / 800.354.8556 or +1.503.598.4564 / support@veris.com
Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Aerospond, Veris, and the Veris 'V' logo are trademarks or registered trademarks of Veris Industries, L.L.C.
in the USA and/or other countries. Other companies' trademarks are hereby acknowledged to belong to their respective owners.
Tubing for Duct Mount
Tubing for Duct Mount
in. (mm)
2.3
(59)
CTR-CTR
3.3
(83)
CTR-CTR
1.4
(35)
To Pickup Tube
For applications using conduit, remove the cable gland nut on the bottom of the unit.
Thread a standard 1/2-inch NPT female threaded coupler onto the body of the cable
gland. Connect the opposite end of the coupler to the conduit.
1/2-inch NPT female threaded coupler
TM
0518
TM
Tubing for Panel Mount
Tubing for Panel Mount
2.5
(62)
To Pickup
Tube
3.2
(81)
0.5
(13)
0518
