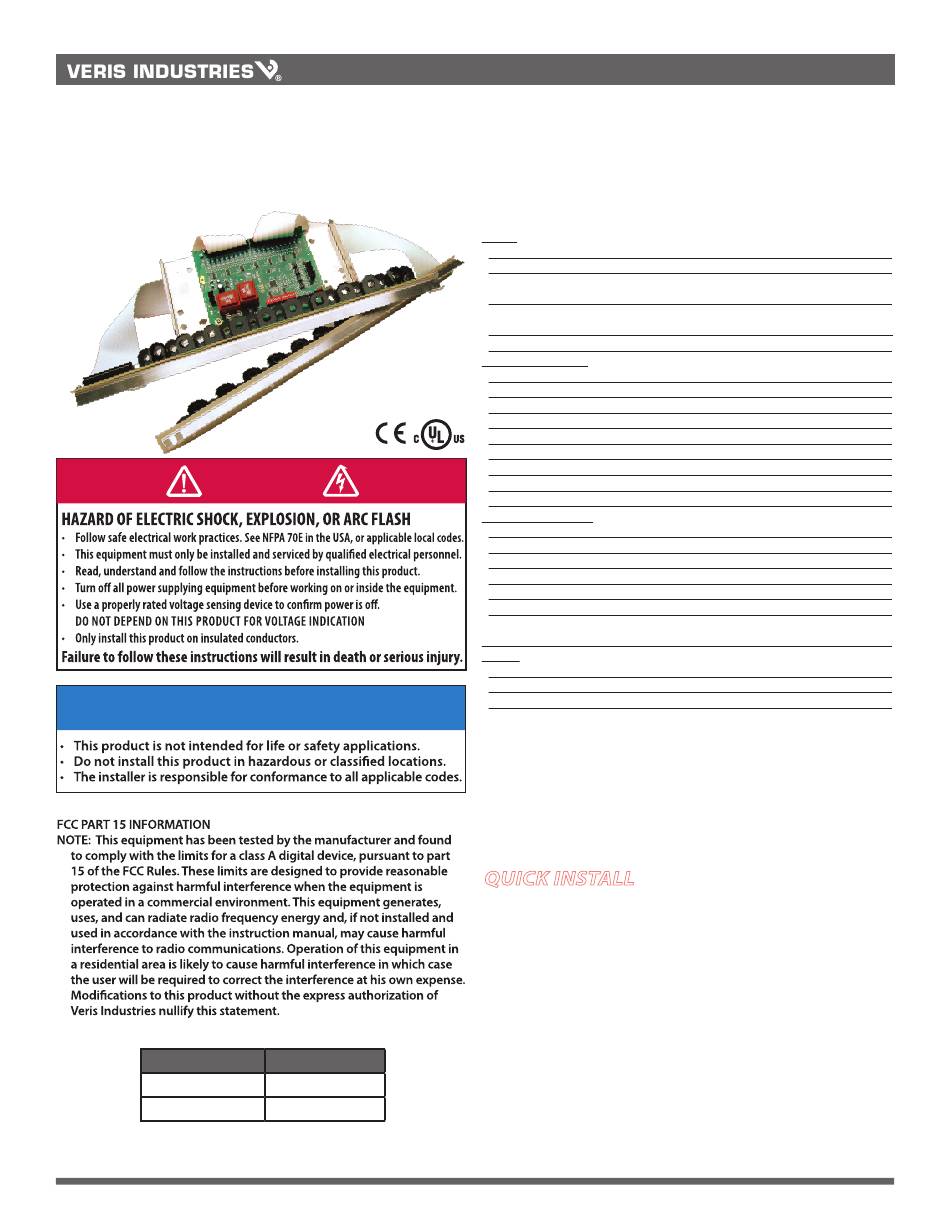

Veris H704-42 Installation Manual

Solid core branch current monitor

Advertisement

Quick Links

H704-42(H)(E), H704-42/1(H)(E)
DANGER
NOTICE
MODEL #
H704-42(H)(E)
H704-42/1(H)(E)
For a 400A Panel, order the H704-42Y55
Z202366-0M
page 1
Shop for Veris products online at:
POWER MONITORING
Branch Current Monitor
CT SPACING
3/4" on center
1" on center
©2008 Veris Industries USA 800.354.8556 or 503.598.4564 / support@veris.com
PowerMeterStore
www.

Installer's Specifications

General:
Operating Temp. Range
0° to 60°C (32° to 140°F) (<95% RH, non-condensing)
Storage Temp. Range
Control (Mains) Power Source
120 VAC L-N, 50/60 Hz (208/230 VAC for H704-42/1(E))
Primary Fusing
250 VAC/100 mA, (T) 5 x 20 mm, (if equipped) Littelfuse 218 series
Altitude of Operation
Measured Current Inputs:
Number of Channels
Frequency
Sample Frequency
Update Rate
Accuracy
Overload Capability
Connection to Conductor
Measured Currents
Current range 0-50 A (max. conductor size is AWG#6 THHN)
Measured Currents, H version
Current range 0-100 A (max. conductor size is AWG#2 THHN)
Network Communications:
Type
Connection
Address
Baud Rate
Parity
Communication Format
Termination
Defaults:
Warning Register
Alarm Register
Breaker Size Register
* In case of a current fault above 60A (120 for the H version), all adjacent channels will report
higher than actual readings. To prevent this from causing over-current warnings and alarms,
configure the warning and alarm delays for a longer time period than the response time of the
breaker.
quick install
1. Disconnect and lock out power.
2. Mount current sensor strips adjacent to breaker terminations.
3. Verify that serial numbers on CT and board match.
4. Mount board onto electrical/fire enclosure.
5. Connect CTs and wire the board.
6. Reconnect power.
7. Configure communication and addressing parameters.
Note: Data acquisition board and CT strips are calibrated as a set. Match the serial
numbered parts together.
.com
-40° to 70°C (-40° to 158°F)
(+10/-25%) Input current < 75 mA
or equivalent
3 km max.
50/60 Hz
1280 Hz
1.2 sec
±2% from 5 A to 50 A *
Tested to 10,000 A single-cycle
Solid-core toroid
Modbus RTU
DIP switch-selectable 2-wire or 4-wire
DIP switch-selectable address 1 to 247
DIP switch-selectable 2400, 4800, 9600, 19200
DIP switch-selectable NONE, ODD, EVEN
8-data-bits, 1-start-bit, 1-stop-bit
5-position depluggable connector
(TX+ TX- SHIELD TX+/RX+ TX-/RX-)
60% of current sensor max. (configurable)
70% of current sensor max. (configurable)
02081
1.877.766.5412
42
20 A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H704-42 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Veris H704-42

  • Page 1 Storage Temp. Range -40° to 70°C (-40° to 158°F) Control (Mains) Power Source 120 VAC L-N, 50/60 Hz (208/230 VAC for H704-42/1(E)) (+10/-25%) Input current < 75 mA Primary Fusing 250 VAC/100 mA, (T) 5 x 20 mm, (if equipped) Littelfuse 218 series...
  • Page 2 Setup is made easy with a PC based configuration tool which allows for global or 1. RS 485 2 or 4-Wire Connection: Daisy chain multiple H704-42's using a 2-wire individual selection of breaker size, warning levels, and alarm levels.
  • Page 3 100A Solid-Core CT Strip 19.5 0.75 H704-42(H) Side View “Right” strip shown 0.4 opening 0.75 on center 10.16 20.31 Z202366-0M page 3 ©2008 Veris Industries USA 800.354.8556 or 503.598.4564 / support@veris.com 02081 PowerMeterStore 1.877.766.5412 www. .com Shop for Veris products online at:...
  • Page 4 Be sure to face the inside of the bracket toward the breakers. Tighten screws. Repeat for the other side of the panel * For 208/230VAC Power Connection version, order H704-42E/H704-42/IE board. 4. Check that CT serial numbers and meter serial numbers match. Meter and CT sold as set with accuracy calibrated as a set.
  • Page 5 DANGEROUS if wire scraps come into contact with high voltage conductors! 2. Use the Software Configuration Tool to set up breaker size, warning levels, and alarm levels. This tool is available online at http://www.veris.com/modbus.asp 3. Reconnect power. Disconnect and lock out power source before making any connections.
  • Page 6 (8+32 = 40) See the Communications Setup section for a pictorial listing of the first 63 switch positions. VALUE Z202366-0M page 6 ©2008 Veris Industries USA 800.354.8556 or 503.598.4564 / support@veris.com 02081 PowerMeterStore 1.877.766.5412 www. .com Shop for Veris products online at:...
  • Page 7 INSTALLATION GUIDE H704 communications setup DO NOT USE ZERO Z202366-0M page 7 ©2008 Veris Industries USA 800.354.8556 or 503.598.4564 / support@veris.com 02081 PowerMeterStore 1.877.766.5412 www. .com Shop for Veris products online at:...
  • Page 8 CBL019 — Cable, Ribbon, 97 in (2464 mm), BCM CBL020 — Cable, Ribbon, 120 in (3048 mm), BCM CBL021 — Cable, Ribbon, 240 in (6096 mm), BCM Z202366-0M page 8 ©2008 Veris Industries USA 800.354.8556 or 503.598.4564 / support@veris.com 02081 PowerMeterStore 1.877.766.5412 www.
