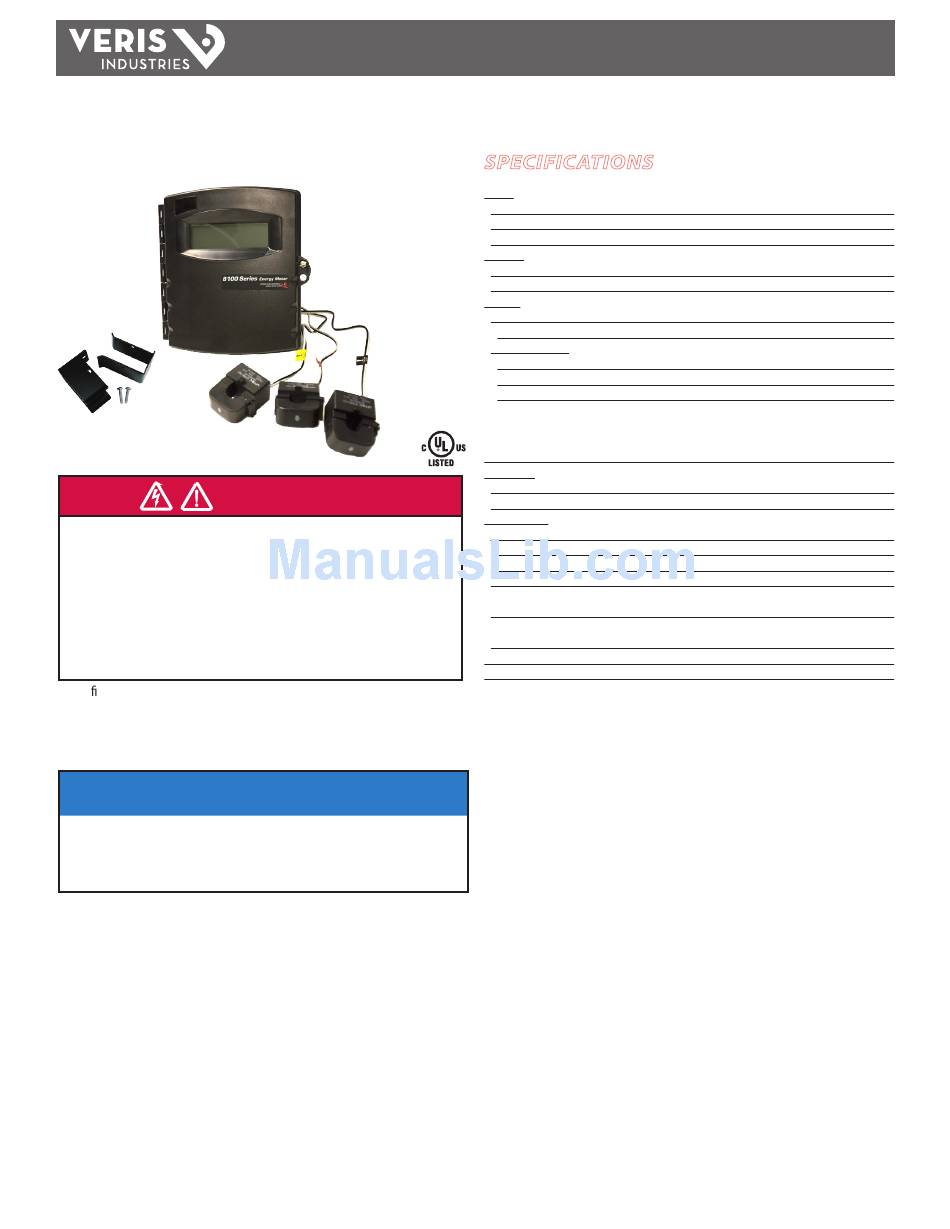

Veris H81xx Installation Manual

AH06 (optional mount-
ing bracket for small,
medium, and large CTs)
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
• Follow safe electrical work practices. See NFPA 70E in the USA, or applicable local codes.
• This equipment must only be installed and serviced by qualified electrical personnel.
• Read, understand and follow the instructions before installing this product.
• Turn off all power supplying equipment before working on or inside the equipment.
• Use a properly rated voltage sensing device to confirm power is off.
DO NOT DEPEND ON THIS PRODUCT FOR VOLTAGE INDICATION
• Only install this product on insulated conductors.
Failure to follow these instructions will result in death or serious injury.
A quali ed person is one who has skills and knowledge related to the construction and
operation of this electrical equipment and the installation, and has received safety
training to recognize and avoid the hazards involved.
No responsibility is assumed by Veris Industries for any consequences arising out of the
use of this material.
• This product is not intended for life or safety applications.
• Do not install this product in hazardous or classified locations.
• The installer is responsible for conformance to all applicable codes.
• Mount this product inside a suitable fire and electrical enclosure.
FCC PART 15 INFORMATION
NOTE: This equipment has been tested by the manufacturer and found
to comply with the limits for a class A digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in
a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
Modifications to this product without the express authorization of
Veris Industries nullify this statement.
Find Quality Products Online at:
POWER MONITORING
TM
H81xx
Energy Meter
DANGER
NEC2009 Article 100
NOTICE
GlobalTestSupply
www.
INSTALLATION GUIDE

SPECIFICATIONS

Inputs:
H8150
H8163, H8167
Frequency
Accuracy:
System Accuracy ±1% of reading from 2% to 100% of the CT current rating *
Sample Rate
Outputs:
All Models
LCD 1.2" x 3.8" (31 mm x 97 mm) viewing area, 160 segments, backlit
H8163 and H8167:
Pulse Output
Pulse Rate 0.10, 0.25, 0.50, 1.00 kWh per pulse (jumper selectable)
Pulse Width
Phase Loss Alarm Output H8163: N.O. (opens on alarm, remains open while alarm persists);
H8167: N.C. (closes on alarm, remains closed while alarm persists);
Both H8163 and H8167: Opto-Fet, 100mA@24VAC/DC;
Mechanical:
Protection Class
Insulation Class
Environmental:
Operating Temperature Range
Storage Temperature Range
Humidity Range
Altitude of Operation
Electrical Services:
H8150 120/240 VAC with neutral, 208Y/120 VAC line-to-neutral
H8163, H8167 Any Wye service in which the phase L-N voltage is ≤300VAC and
the phase-to-phase voltage is ≤480 VAC nom. with neutral
Agency Approvals
Installation Category
* Meters and current transformers are calibrated as a set. To achieve this accuracy, match the
serial numbers on the transformers and the meter at the time of installation (does not apply to
100 A CTs).
** Do not apply 600V class current transformers to circuits having a phase-to-phase voltage
greater than 600V without adequate additional insulation between primary conductor and
current transformers.
Always observe all National and Local Codes during installation
of this product.
Provide a disconnect device to disconnect the H81xx from the supply source. Place
this device in close proximity to the equipment and within easy reach of the operator,
and mark it as the disconnecting device. The disconnecting device shall meet
the relevant requirements of IEC 60947-I and IEC 60947-3 and be suitable for the
application. In the US and Canada, disconnecting fuse holders can be used.
Provide overcurrent protection devices for supply conductors. Install per national or
local regulations.
If the equipment is used in a manner not specified by the manufacturer, the
protection provided by the device may be impaired.
.com
90 to 132VAC line-to-neutral
90 to 300VAC line-to-neutral
50/60 Hz
1280 Hz
N.O., Opto-Fet, 100mA@24VAC/DC
200msec closed
Fixed threshold 25% below any other phase
NEMA 1
600 VAC **
0° to 50°C (32° to 122°F)
-40°C to 70°C (-40° to 158°F)
0-95% RH, non-condensing
0 to 2000 m
UL 3111-1
Cat III, pollution degree 2
