Formax FD 402TA1 Operator's Manual

Tabletop air jogger
Hide thumbs

Advertisement

Table of Contents

FD 402TA1
Tabletop Air Jogger
OPERATOR MANUAL Rev. 2
8/2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FD 402TA1 and is the answer not in the manual?

Questions and answers

Related Manuals for Formax FD 402TA1

Summary of Contents for Formax FD 402TA1

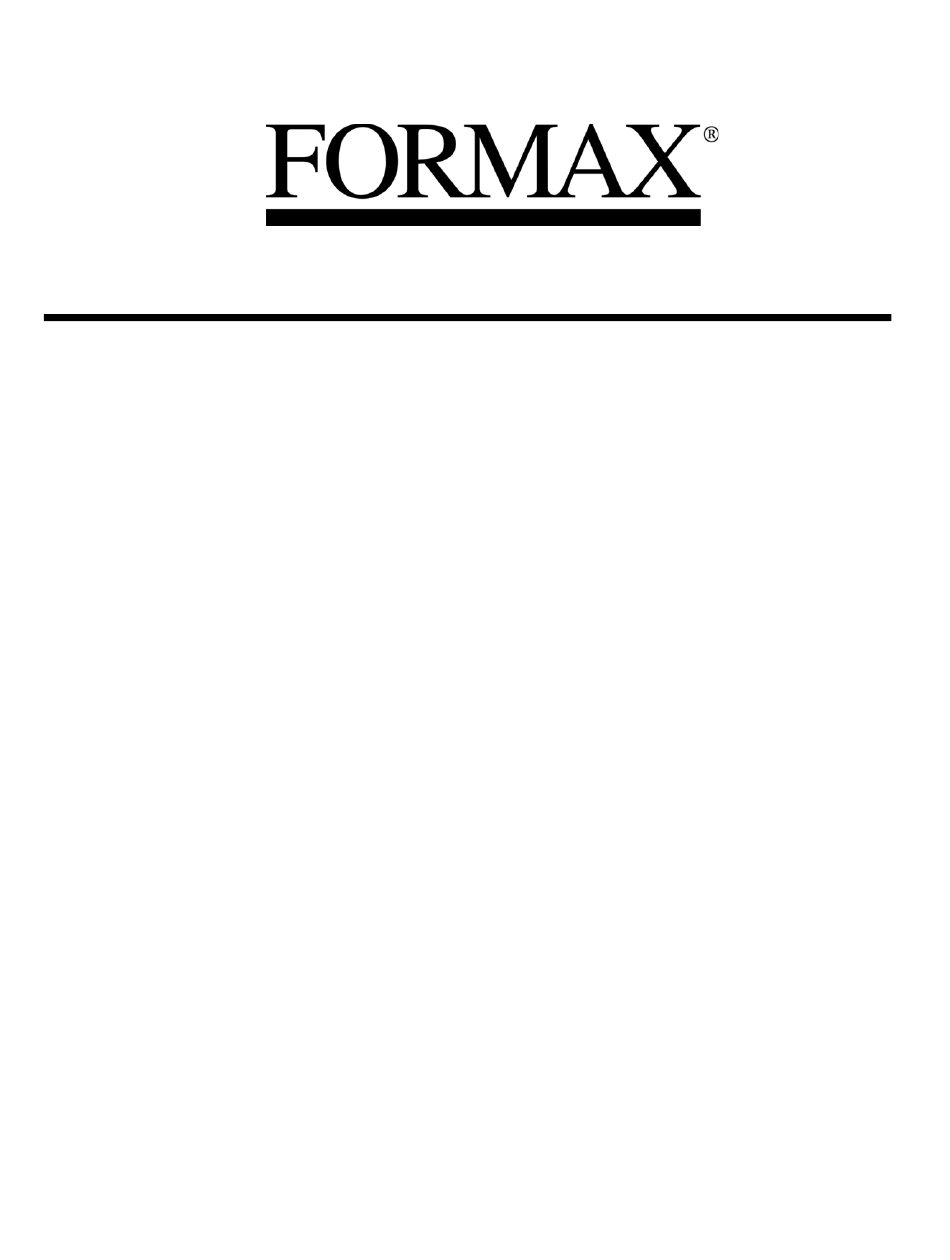

  • Page 1 FD 402TA1 Tabletop Air Jogger OPERATOR MANUAL Rev. 2 8/2017...

  • Page 2: Table Of Contents

    Introduction Thank you for purchasing this product. Please carefully read this Operator Manual before use. Be sure to read "Safety instructions" before use. Keep this Operator Manual in a specific place for handy reference Table of contents 1. Safety Instructions ……………………………............3 2.

  • Page 3: Safety Instructions

    1. Safety Instructions To prevent bodily injury or damage to property, please follow these safety instructions. Safety instructions Definition of Symbols and Notes In this manual, the following words and symbols denote possible danger. Danger This Symbol stands for immediate danger threatening the life and health of persons.
  • Page 4 Danger Apply the power supply as specified on the If dust forms on the prongs of the power plug, serial plate, and independently use the wall wipe the dust off with a dry cloth. It may cause outlet with a rated current. fire.

  • Page 5: Precautions Before Use

    Do not place the machine in a humid place or where Be sure to remove the power plug from the outlet it could get wet. when moving the machine, otherwise it may damage the cord, causing fire or an injury. Doing so could cause the insulation to deteriorate and cause an electrical shock or fire.

  • Page 6: Components And Functions

    ① ② ⑦ ⑥ ⑤ ④ ③ Name Function Paper tray vibrates to jog paper. ① Paper tray Set the paper to be jogged in the tray holding the stack with its comer facing down. This knob is used for tilting the paper tray. While supporting the paper tray with one hand, loosen the lever and ②...

  • Page 7: Operation

    4. How to Use 4-1 Paper tray angle adjustment ・ Holding the lower center of the paper tray head's front face, loosen the adjustment knob to adjust the tilting angle. Then tighten it at an appropriate position. Danger Do not touch any revolving and/or moving part of the machine or reach a hand into the machine.

  • Page 8: Troubleshooting

    · In general, for thick paper, the tilt angle is adjusted vertically and for thin paper, it is adjusted horizontally. For thin paper 4-2 How to jog · Turn the Jogging switch to begin jogging and the Air switch for air blowing, and touch the upper part of paper stock to help it jog neatly.

  • Page 9: Other Matters To Note

    · Do not place heavy objects on the machine. The object may fall, causing a bodily injury. 7. Specifications Product name Tabletop Air Jogger Model FD 402TA1 Paper size 5” x 7” Min – 11” x 17” Max Dimensions 21” W x 15” L x 23” H...
