F-CONTROL AUDIO FCA202

Connect the FCA202 to your computer using one of the two FireWire

computers have 6-pin sockets which allow the power supply for the FireWire

made directly via the bus, while others offer reduced 4-pin sockets. Depending on the arrangement,

there are various ways in which you can operate your FCA202.

Operation without a mains adapter on a computer with a 6-pin socket

This is a typical setup for most computers, which can provide adequate power supply for

the FCA202 via the FireWire

connectors. If your computer cannot ensure an adequate power supply, use the mains

adapter that is provided.

Operation with a mains adapter on a computer with a 6-pin socket

Use the appropriate cable that includes two 6-pin plug connectors. In this case, the FCA202

will be provided with current via the mains adapter. This option is suggested if you have a

laptop with a 6-pin socket but don’t want to add another burden on the computer battery

when running the computer from the battery, or if your computer cannot provide enough

power to operate the FCA202.

Operation with a mains adapter on a computer with a 4-pin socket

This is the typical setup for most laptop computers. Use the appropriate cable that includes

a 6-pin and a 4-pin plug connector. In this case, you will have to use the mains adapter

provided to supply the power to the FCA202.

All manuals and user guides at all-guides.com

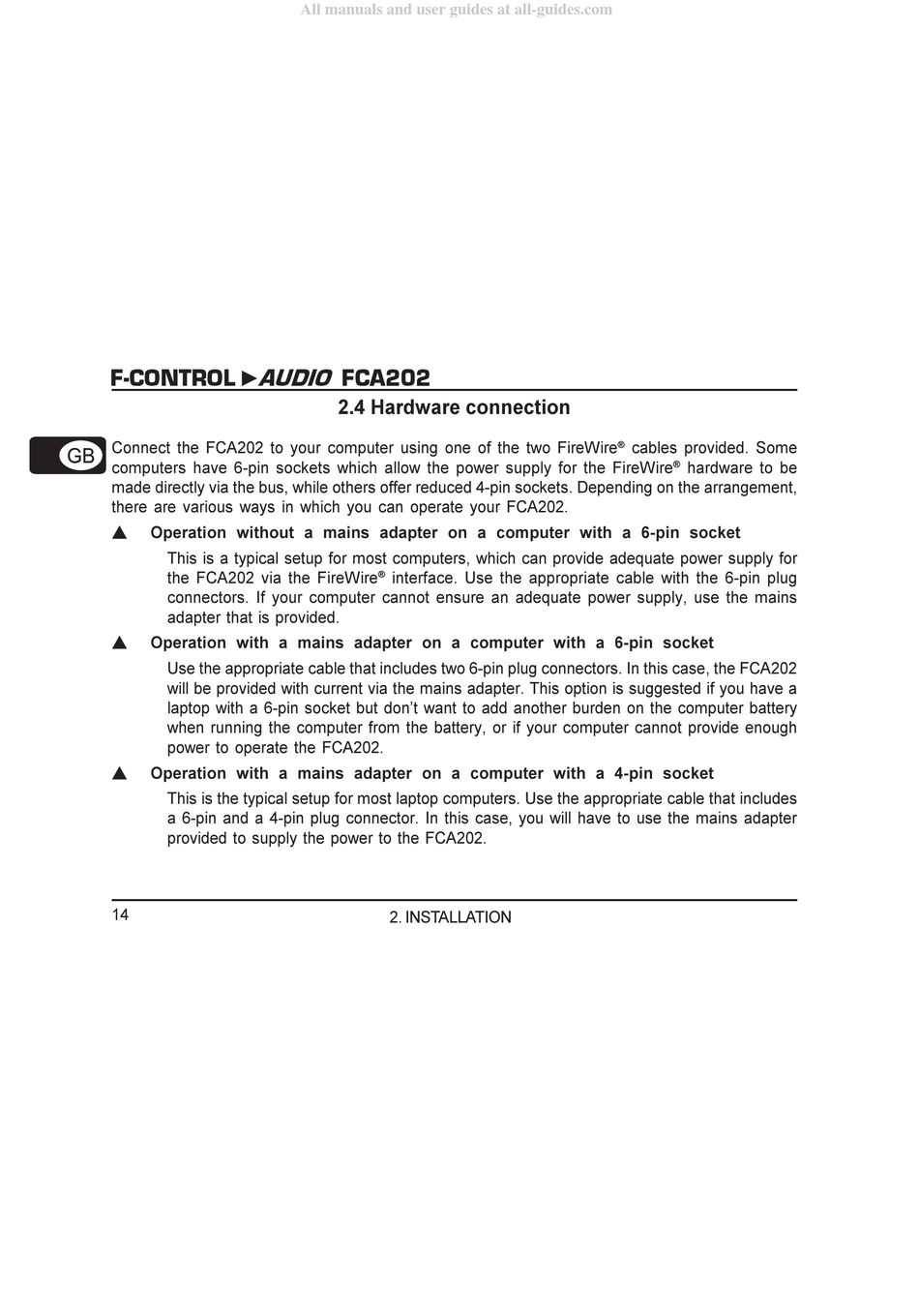

2.4 Hardware connection

interface. Use the appropriate cable with the 6-pin plug

2. INSTALLATION

cables provided. Some

hardware to be
