Maestro Configuration

Maestro is a configuration tool that you use optionally to
customize your system beyond what is allowed in the front
panel. For example, using Maestro you can assign a channel
number (logical channel) independent of the RF number and
label the channels.

Connecting with Maestro

1. Connect your computer directly to the ZeeVee modulator
using a standard Ethernet cable (not a cross-over cable) or
connect the unit and your computer to any LAN that has a
DHCP server.
IP address
2. An IP address appears
at the top of the front
panel display.
3. Using any web
browser (Chrome or
Firefox preferred),
enter the IP address to launch Maestro.
4. You will be directed to a login page.
Your user name is always "admin."
The default password is "admin"
but you can change the password.
Login is case-sensitive.
5. After you log in, the Maestro Status tab appears. Here you
can see the general status.
|
Pa ge 8 H D br i dg e 29 2 0 - EU Co n fig u r a ti o n Gu i d e
Configuring RF numbers and logical channels
1. Click on the Channel Plan tab.
2. Click in the RF # field and enter the RF number as you
choose from the CCIR Table (on page 7). Make sure you've
reviewed the CCIR Table Important Notes before completing
this task.
3. Click in the LCN field and enter a logical channel number.
The LCN is what the TV displays.
Note that you can choose a logical channel number that is
different from the RF#. For instance, if your RF# is 21, you
can choose 3 as your LCN.
4. Click Apply to save changes. Your unit stores configurations
so they are not lost on power-down.
5. Run Auto Scan at TV (see Tuning your channel at the HDTV,
page 5) when you have saved configuration changes.
Labeling channels with channel and content
information
1. In the Channel Plan tab, click in the Name field and enter
the channel short name (up to 7 characters).
2. Click in the Long Name field and enter the long or more
descriptive channel name (up to 63 characters). The TV
displays these names and descriptions when the channel is
changed or info guide information is requested.
3. Click Apply to save changes.
w ww.z eev ee.c om
Using the Maestro tabs
Click on the Maestro tabs to configure your unit as
needed. We provide brief information here. Please
click on the Help button on each tab or refer to the
Support section of our website for further detail on
configuration options.

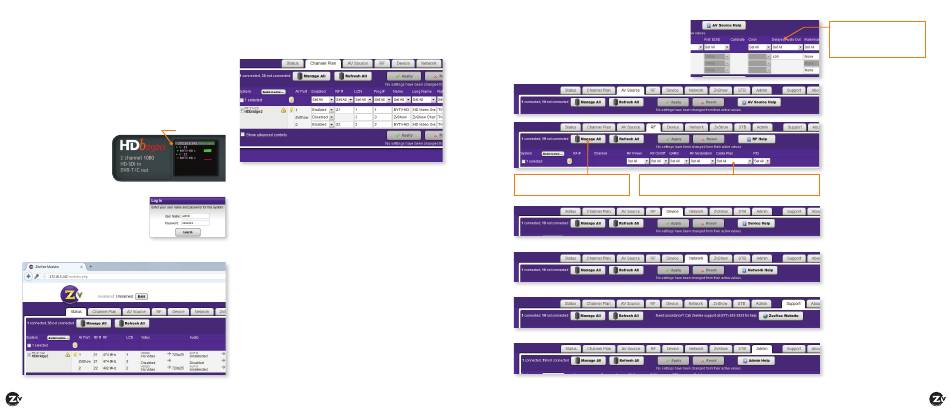

Manage All allows you to view and Group Action bar allows you to set configuration for all
configure all units on your network. selected units actively managed on your network.
Delayed Audio Out found on
the AV Source tab allows for
matching audio to external
audio system (first port only).
THE AV SOURCE TAB
Allows you to specify audio
and video sources as well as
other configuration options for
the sources.
THE RF TAB
Allows you to change the RF
power output.
THE DEVICE TAB
Allows you to change the
device password and update
firmware as well as configure
Emergency Alerts System
(EAS). You can find detailed
information on EAS in the
Support section of the website.
THE NETWORK TAB
Allows you to assign a static
IP address.
THE SUPPORT TAB
Provides technical support
contact information and
allows you to send logs for
troubleshooting.
THE ADMIN TAB
Allows for creating user
accounts which limit access
to specific parts of Maestro
including ZvShow, STB and
EAS access.
|
