D-Link DCS-4633EV Quick Installation Manual page 5

Tilt Lock
1
Screw
2 Light Sensor
microSD Card
3
Slot
4 IR LEDs
5 Reset Button
6 Camera Lens
D-Link DCS-4633EV Quick Installation Guide

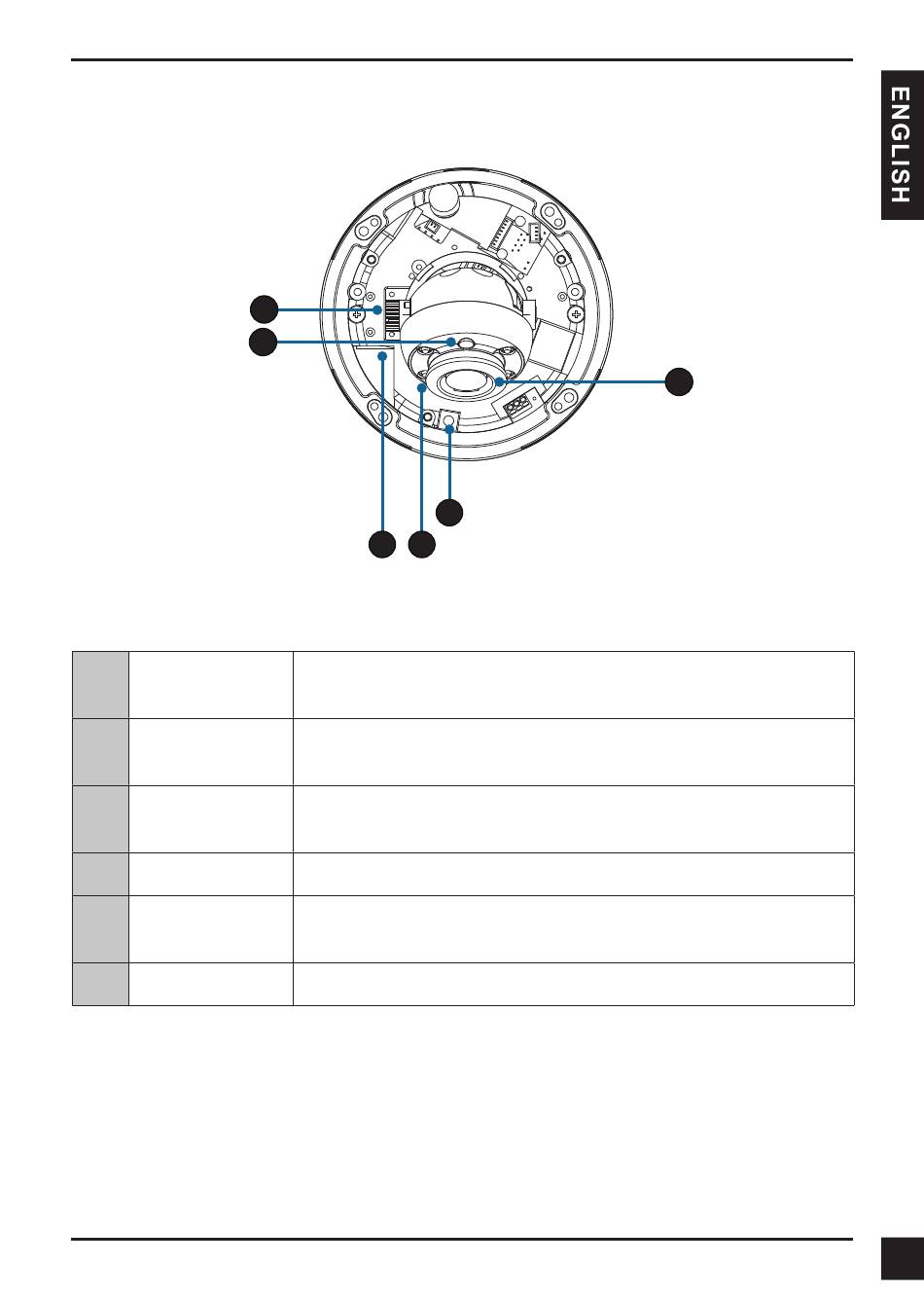

Hardware Overview
1
2
3 4
Can be loosened to adjust the camera's tilt angle.
Detects lighting levels and switches between day and night
mode accordingly.
Insert a microSD card for onboard storage of snapshots
and video.
Provide illumination for low-light environments.
Press and hold this button down for 10 seconds to reset the
camera to factory default settings.
Camera lens to record video of the surrounding area.
5
6
3
