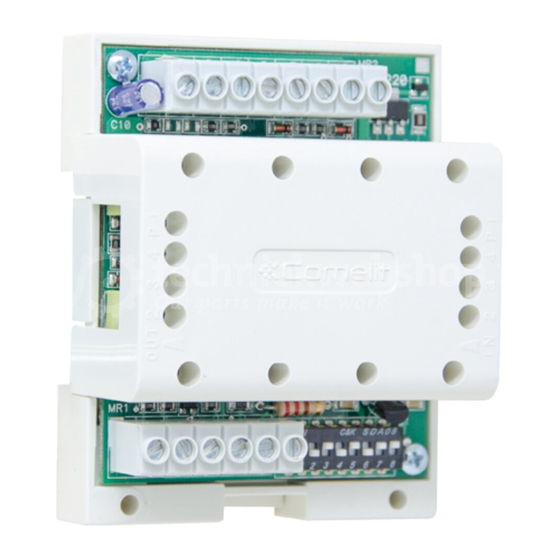

- Page 1 TECHNICAL MANUAL Module for SBTOP remote camera module Art. 1259C Passion.Technology. Design.
- Page 2 Warning Intended use This Comelit product was designed for use in the creation of audio and video communication systems in residential, commercial or industrial settings and in public buildings or buildings used by the public. Installation All activities connected to the installation of Comelit products must be carried out by qualified technical personnel, with careful observation of the indications provided in the Manuals / Instruction sheets supplied with those products.
-
Page 3: Technical Features
Description Module that allows the cyclical management of the video signals from up to 3 cameras on a door entry monitor via a dedicated key. Power supply: 12 V AC or 20 V DC. Can be used in SBTOP systems. 1. - Page 4 Connection VIDEO ENTRY SYSTEM RISER CAMERA CONTROL KEY 12V~ 230V~ IN IN 1259C 1200 VIDEO ENTRY SYSTEM RISER Requires separate power supply.
-
Page 5: Operation And Programming
Operation and Programming Art. 1259C can be used to manage analogue CCTV cameras (up to 3). Art. 1259C can be used in systems with Art. 4888C in the SB1 section (running from the mixer power supply unit towards the external units). - Page 6 In this mode, every time a call is received from the external unit or when self-ignition takes place, the monitor switches on and displays the image from the first camera connected to Art. 1259C. It will be possible to cycle through all cameras connected by...
-
Page 7: System Performance And Layouts
In this mode, every time a video call is made from the switchboard, the monitor switches on as soon as the handset is lifted (or the audio button is pressed), and the image displayed will be the one from the first camera connected to Art. 1259C. - Page 8 C E R T I F I E D M A N A G E M E N T S Y S T E M S w w w . c o m e l i t g r o u p . c o m Via Don Arrigoni, 5 - 24020 Rovetta (BG) - Italy...
