ATTENTION
Be careful when you enable the filter function:
Drop + "no entity on list is activated" = all packets are allowed
Accept + "no entity on list is activated" = all packets are denied

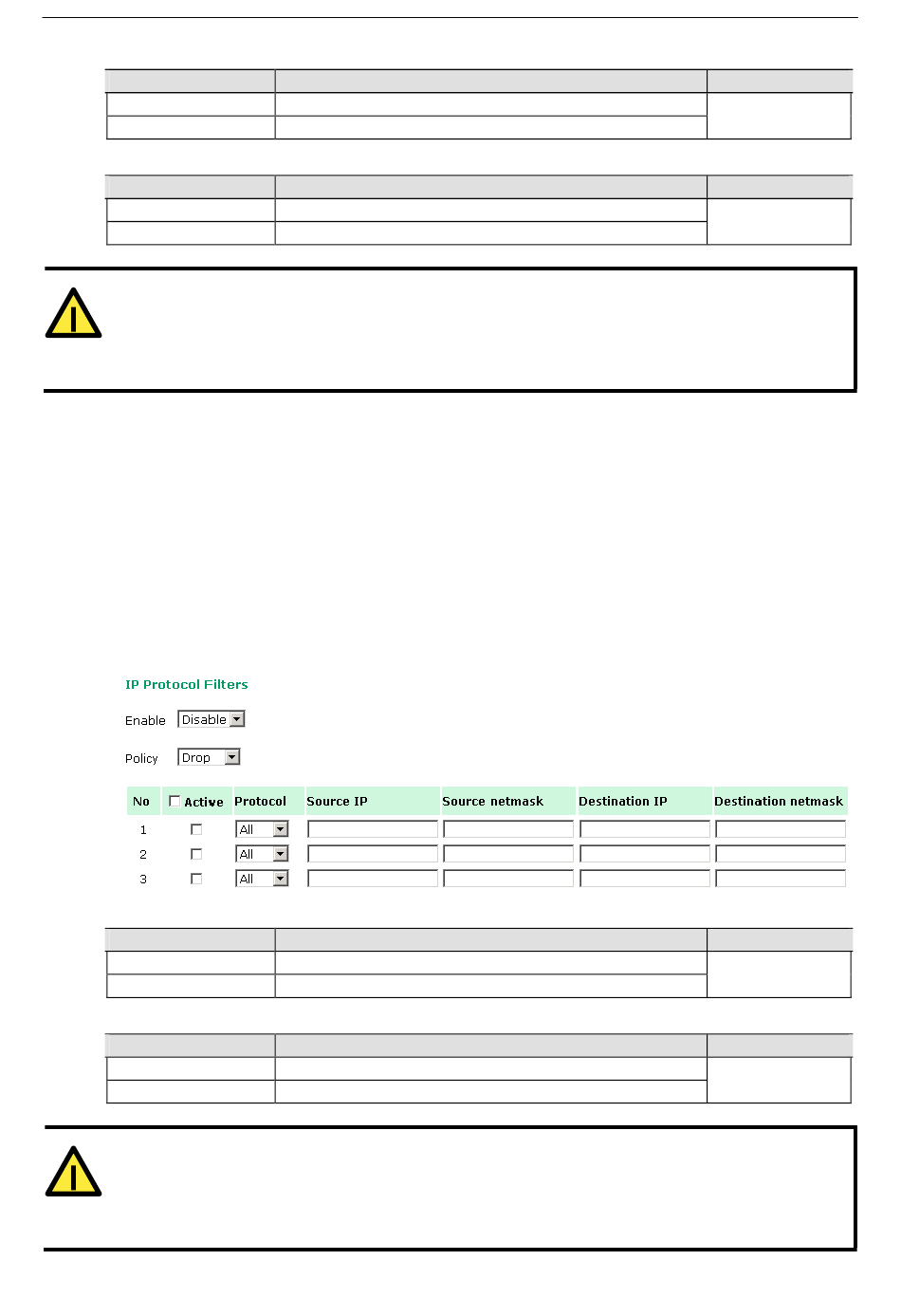

IP Protocol Filter
The AWK-1131A's IP protocol filter is a policy-based filter that can allow or filter out IP-based packets with
specified IP protocol and source/destination IP addresses.
The AWK-1131A provides 8 entities for setting IP protocol and source/destination IP addresses in your filtering
policy. Four IP protocols are available: All, ICMP, TCP, and UDP. You must specify either the Source IP or the
Destination IP. By combining IP addresses and netmasks, you can specify a single IP address or a range of IP
addresses to accept or drop. For example, "IP address 192.168.1.1 and netmask 255.255.255.255" refers to
the sole IP address 192.168.1.1. "IP address 192.168.1.1 and netmask 255.255.255.0" refers to the range of
IP addresses from 192.168.1.1 to 192.168.255. Remember to check the Active check box for each entity to
activate the setting.
Enable
Setting
Enable
Disable
Policy
Setting
Accept
Drop
ATTENTION
Be careful when you enable the filter function:
Drop + "no entity on list is activated" = all packets are allowed.
Accept + "no entity on list is activated" = all packets are denied.
Description
Enables MAC filter
Disables MAC filter
Description
Only the packets fitting the entities on list can be allowed.
Any packet fitting the entities on list will be denied.
Description
Enables IP protocol filter
Disables IP protocol filter
Description
Only the packets fitting the entities on the list can be allowed
Any packet fitting the entities on the list will be denied
3-22
Web Console Configuration
Factory Default
Disable
Factory Default
Drop
Factory Default
Disable
Factory Default
Drop
