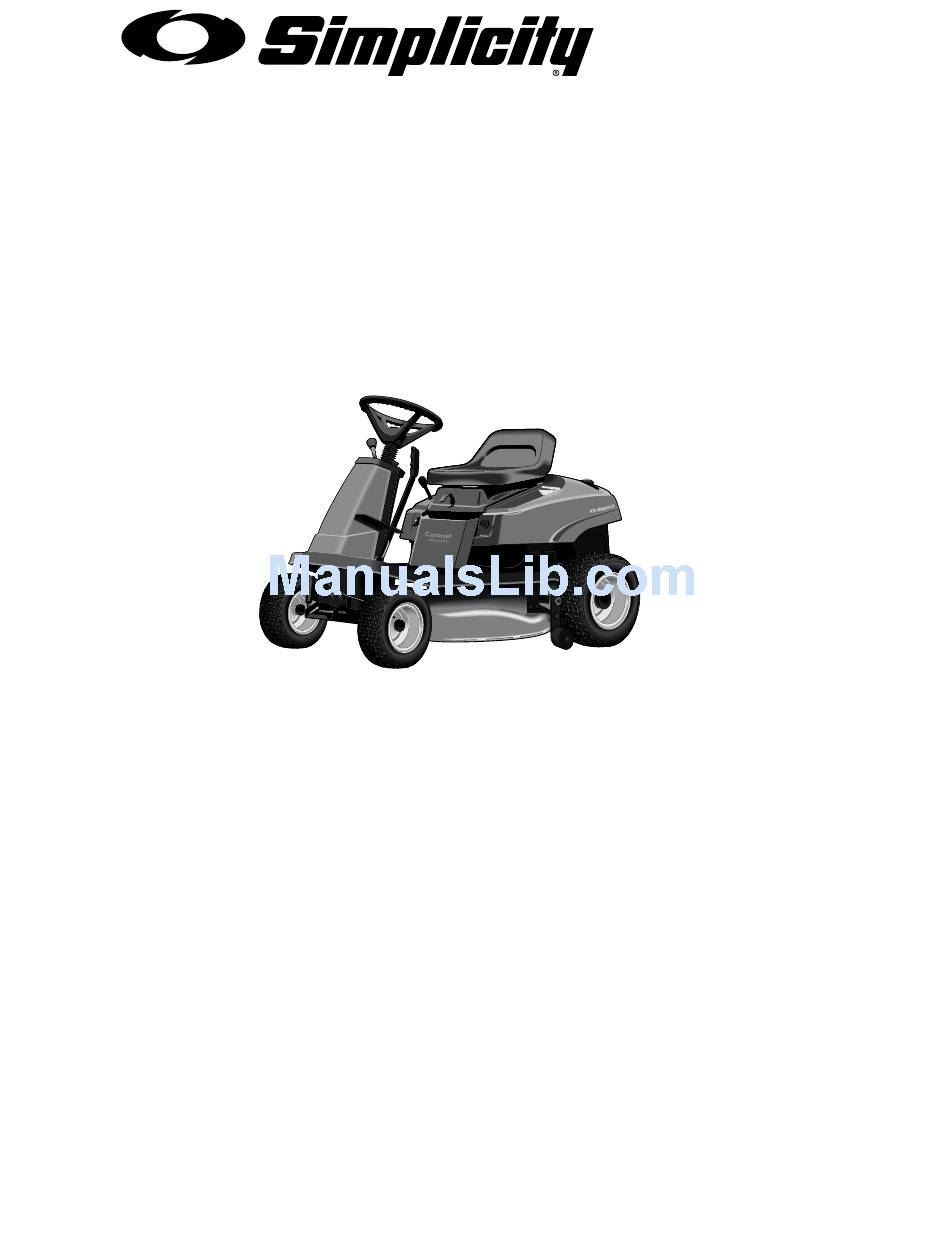

Page 1 OPERATOR’S MANUAL Coronet Series 11HP Gear Riders Mfg. No. Description 1693030 Coronet, 11HP Gear 1693032 Coronet, 11HP Gear (Export) 13HP Hydro Riders Mfg. No. Description 1693034 Coronet, 13HP Hydro 1693036 Coronet, 13HP Hydro (Export) 14HP Hydro Riders Mfg. No. Description...
Page 2 M A N U F A C T U R I N G , I N C . 500 N Spring Street / PO Box 997 Port Washington, WI 53074-0997 www.simplicitymfg.com © Copyright 1997 Simplicity Manufacturing, Inc. All Rights Reserved. Printed in USA.
Page 3: Mower Decks
OPERATOR’S MANUAL 400 Series Riders Mfg. No. Description 1693042 411G, 11HP Gear 1693044 412H, 13HP Hydro 1693046 414H, 14HP Hydro Mower Decks Mfg. No. Description 1692544 30” Mower Deck 1692546 34” Mower Deck 1717740 Rev 4/97 TP-100-2064-00-CO-A...
Page 4 AGCO-Allis Lawn & Garden Equipment 500 N. Spring Street \ P.O. Box 997 Port Washington, WI 53074-0997 USA www.allislawn.com © Copyright 1997 Simplicity Manufacturing, Inc. All Rights Reserved. Printed in USA.
Page 5 OPERATOR’S MANUAL 2400 Series Riders Mfg. No. Description 1693048 2411G, 11HP Gear 1693050 2414H, 13HP Hydro Mower Decks Mfg. No. Description 1692544 30” Mower Deck 1692546 34” Mower Deck 1717741 Rev 4/97 TP-100-2064-00-CO-M...
Page 6 Massey Ferguson Lawn & Garden Equipment is Manufactured and Distributed by Simplicity Manufacturing, Inc. 500 N. Spring Street • P.O. Box 997 • Port Washington, WI 53074-0997 USA www.masseylawn.com © Copyright 1997 Simplicity Manufacturing, Inc. All Rights Reserved. Printed in USA.
Page 7: Table Of Contents
Servicing the Mower Blades ...17 STORAGE ...19 Temporary Storage...19 Long Term Storage...19 Starting After Long Term Storage...20 © Copyright 1997 Simplicity Manufacturing, Inc. All Rights Reserved. Printed In USA. TP 100-2064-00-CO-SMA TROUBLESHOOTING & REPAIR...21 General...21 Troubleshooting The Rider ...21 Troubleshooting The Mower ...22 Checking the Battery ...22...
Page 8: Rider & Mower Identification
Rider & Mower Identification IDENTIFICATION NUMBERS Record your model number, manufacturer number and engine idnetification number in the space provided for easy reference. The models and manufacturer numbers covered in this manual are listed on the front cover. The rider I.D. tag is located on the left-side of the frame, in front of the rear tire, as shown below.
Page 9: General Operation
Read these safety rules and follow them closely. Failure to obey these rules could result in loss of control of rider, severe personal injury or death to you, or bystanders, or damage to property or equipment. This mowing deck is capable of amputating hands and feet and throwing objects. The triangle signifies important cautions or warnings which must be followed.
Page 10: Transporting And Storage
Safety Rules CHILDREN Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the unit and the mowing activity. Never assume that chil- dren will remain where you last saw them. •...
Page 11: Safety Decals
This unit has been designed and manufactured to pro- vide you with the safety and reliability you would expect from an industry leader in outdoor power equipment manufacturing. Although reading this manual and the safety instructions it contains will provide you with the necessary basic knowledge to operate this equipment safely and effec- tively, we have placed several safety labels on the unit to remind you of this important information while you are...
Page 12: Features & Controls
Features & Controls RIDER FEATURES & CONTROLS Figure 2. Rider Features NAME Mower Lift Lever Fuel Tank Ignition Switch Auto-Levelling Rod Mower Hitch Mower Deflector PTO (Electric Clutch) Switch Ground Speed Control Lever Clutch/Brake Pedal Parking Brake Control Knob Dial-A-Cut Control Seat Adjustment Lever Engine Throttle/Choke Lever Seat Deck...
Page 13: Engine Compartment
ENGINE COMPARTMENT *2387 Figure 3. Engine Compartment NAME Fuel Tank Ignition Switch Battery Throttle/Choke Cable PTO Switch (Electric Clutch) Air Filter Oil Fill/Dipstick Oil Drain Fuel Filter Shown FUNCTION 2 gal. (7.6L) see-through tank for fuel level reading. Starts and stops the engine. 12 volt, 340 amp battery recharged by engine alternator Controls engine speed and choke position.
Page 14: Safety Interlock System
Features & Controls SAFETY INTERLOCK SYSTEM Your rider is equipped with a seat switch safety system that will automatically shut the engine off when the oper- ator leaves the seat with the ground speed control lever in gear or PTO engaged. Once the engine has stopped, the electric PTO switch must be turned off after operator returns to the seat in order to start the engine.
Page 15: Operation
GENERAL Before operating this rider for the first time, the owner should operate in an open area without mowing, to become accustomed to the unit. The left side of the mower can be used to trim close to objects. Be sure to read all information in the Safety and Operation sections before attempting to operate this rider and mower.
Page 16: Operating The Mower
Operation *2390 Figure 6. Mower Hitch A. Lever C. Rider Hitch Brackets B. Mower Hitch 2. On left-hand side of 34” mower, push idler pulley arm (A, figure 5) to relieve belt tension. On right-hand side of 30” mower, pull idler pulley arm to relieve belt tension.
Page 17: Clutch/Brake Pedal Operation
WARNING Gasoline is highly flammable and must be han- dled with care. Never fill the tank when the engine is still hot from recent operation. Do not allow open flame, smoking or matches in the area. Avoid over-filling and wipe up any spills. CLUTCH/BRAKE PEDAL OPERATION - HYDRO MODELS 1.
Page 18: Stopping The Rider
Operation WARNING Make sure desired direction of travel is clear of objects, people and animals. 1. If you are ready to mow, lower the mower from the transport position using lever (A, figure 11) and set the mowing height using the Dial-A-Cut figure 11).
Page 19: Mowing Pattern & Tips
GENERAL For the first use of the mower, choose a smooth level area. Cut long straight strips overlapping slightly. The size and type of area to be mowed determines the best mowing pattern to use. Obstructions such as trees, fences and buildings must also be considered. Where possible, make one or two passes in a counterclockwise direction around the outside of the area to keep the cut grass off fences and walks.
Page 20 Mowing Patterns & Tips • If mulching baffles are removed, the original deflector must be in operating position for safe side-discharge mowing. How Much Grass To Cut Off Removing too much grass height in one cutting may result in an unsatisfactory cut: windrowing, clumping, or uneven dispersal of clippings may result.
Page 21: Normal Care
SCHEDULE The following schedule should be followed for normal care of your rider and mower. You will need to keep a record of your operating time. Determining operating time is easily accomplished by multiplying the time it takes to do one job by the number of times you’ve done the job, or you can install the optional hour meter.
Page 22: Lubrication
Normal Care LUBRICATION Lubricate the rider and mower as shown in figures 13 - 18. When a grease gun is shown, wipe the fitting clean, apply two or three shots of lithium base automotive *2388B Figure 13. Brake Pedal Pivot Point Figure 14.
Page 23: Battery Maintenance
BATTERY MAINTENANCE Checking the Battery Fluid 1. Raise the seat deck. 2. Remove battery filler cap. Fluid must be even with split ring full mark. If not, add distilled water. 3. Reinstall filler cap. WARNING Be careful when handling the battery. Avoid spilling electrolyte.
Page 24 Normal Care 3. To remove blade for sharpening, use wooden block to hold blade while removing the blade mounting cap- screw (figure 20). 4. Use a file to sharpen blade to fine edge. Remove all nicks and dents in blade edge. If blade is severely damaged, it should be replaced.
Page 25: Storage
Never store the rider, with gasoline in engine or fuel tank, in a heated shelter or in enclosed, poorly venti- lated enclosures. Gasoline fumes may reach an open flame, spark or pilot light (such as a furnace, water heater, clothes dryer, etc.) and cause an explosion. Handle gasoline carefully.
Page 26: Starting After Long Term Storage
Storage 11. Transport the rider to a suitable, dry, indoor location. If the rider is to be stored 6 months or longer, block the rider up off the wheels to relieve weight and also to keep the tires off a damp floor. Protect tires from prolonged exposure to direct sunlight.
Page 27: Troubleshooting & Repair
GENERAL WARNING To avoid serious injury, perform maintenance on the rider or mower only when the engine is stopped and the parking brake engaged. Always remove the ignition key, disconnect spark plug wire and fasten away from the plug before begin- ning the maintenance, to prevent accidental starting of the engine.
Page 28: Troubleshooting The Mower
Troubleshooting & Repair TROUBLESHOOTING THE MOWER Mower will not raise. 1. Lift cable not properly attached or damaged. Attach or repair. Mower cut is uneven. 1. Mower not leveled properly. See Mower Adjustment. 2. Rider tires not inflated equally or properly. See Normal Care.
Page 29: Discharged Battery
6. Charge the battery until fully charged (i.e. until the specific gravity of the electrolyte is 1.250 or higher and the electrolyte temperature is at least 60° F). The best method of making certain a battery is fully charged, but not over charged, is to measure the specific gravity of a cell once per hour.
Page 30 Troubleshooting & Repair THIS HOOK-UP FOR NEGATIVE GROUND VEHICLES Starter Switch Starting Vehicle Battery To Ground MAKE CERTAIN VEHICLES DO NOT TOUCH Figure 23. Battery Jump Starting Diagram Jumper Cable Jumper Cable **1582 Starter Switch Discharged Vehicle Battery Engine Block...
Page 31: Adjustments
WARNING To avoid serious injury, perform adjustments only with engine stopped, key removed and rider on level ground. SEAT ADJUSTMENT Use the lever to adjust the seat forward or rearward for best rider comfort. BRAKE ADJUSTMENT Brake Adjustment - Gear Models 1.
Page 32: Steering Gear Adjustment
Adjustments STEERING GEAR ADJUSTMENT If there is excessive slack in the steering system, the steering gear can be reindexed to the steering shaft. 1. See figure 30. Loosen the two capscrews and push bracket so that gear teeth are closely meshed. 2.
Page 33 Figure 31. Leveling The Mower Side-to-Side A. Nut B. Eccentric Nut C. Rear Rollers 6. See figure 31. On left side of mower, make sure eccentric nut is in correct position as shown. Loosen outside nut (A) and rotate eccentric nut (B) so that flat side with hole closest to it is towards the rear.
Page 34: Blade Brake Adjustment
Adjustments Front-To-Back Levelling 1. Make sure mower is level side-to-side and that rear rollers are on the ground. 2. Position blade(s) front-to-back. Measure the distance from the ground to front tip of blade(s), and from ground to rear tip of blade(s). On 30”...
Page 35: Belt Replacement
CAUTION To avoid damaging belts, do not pry belts over pulleys. RIDER DRIVE BELT Replacement of the riderdrive belt requires removal of the transmission and carrier frame. Should the drive belt ever fail, contact your dealer for replacement. MOWER BELT - 30” See figure 35.
Page 36: Specifications
Specifications NOTE: Specifications are correct at time of printing and are subject to change without notice. ENGINE 11 HP I/C — Briggs & Stratton Horsepower 10.5 HP @ 3600 rpm Cylinders Bore 3.44 In. (87 mm) Stroke 3.06 In. (77 mm) Displacement 28.4 Cu.
Page 37: International Symbols
DIMENSIONS Rider Overall Length 61 In. (155 cm) Overall Width - w/30 mower 38.5 In. (97.8 cm) - w/34 mower 45.5 In. (115.6 cm) - at rear wheels 33 In. (83.8 cm) Height at - steering wheel 41 In. (104.1 cm) - seat back 35 In.
Page 38: Parts & Accessories
Please allow 3 to 4 weeks for delivery. MAINTENANCE ITEMS • Simplicity Engine Oils Case of 12 qts. (Your dealer has 1 qt. cans) -SAE 5W-30 SF/CD (Cold Weather 30° & under) -SAE 30 SG/CC (Warm weather 32° & up) •...
