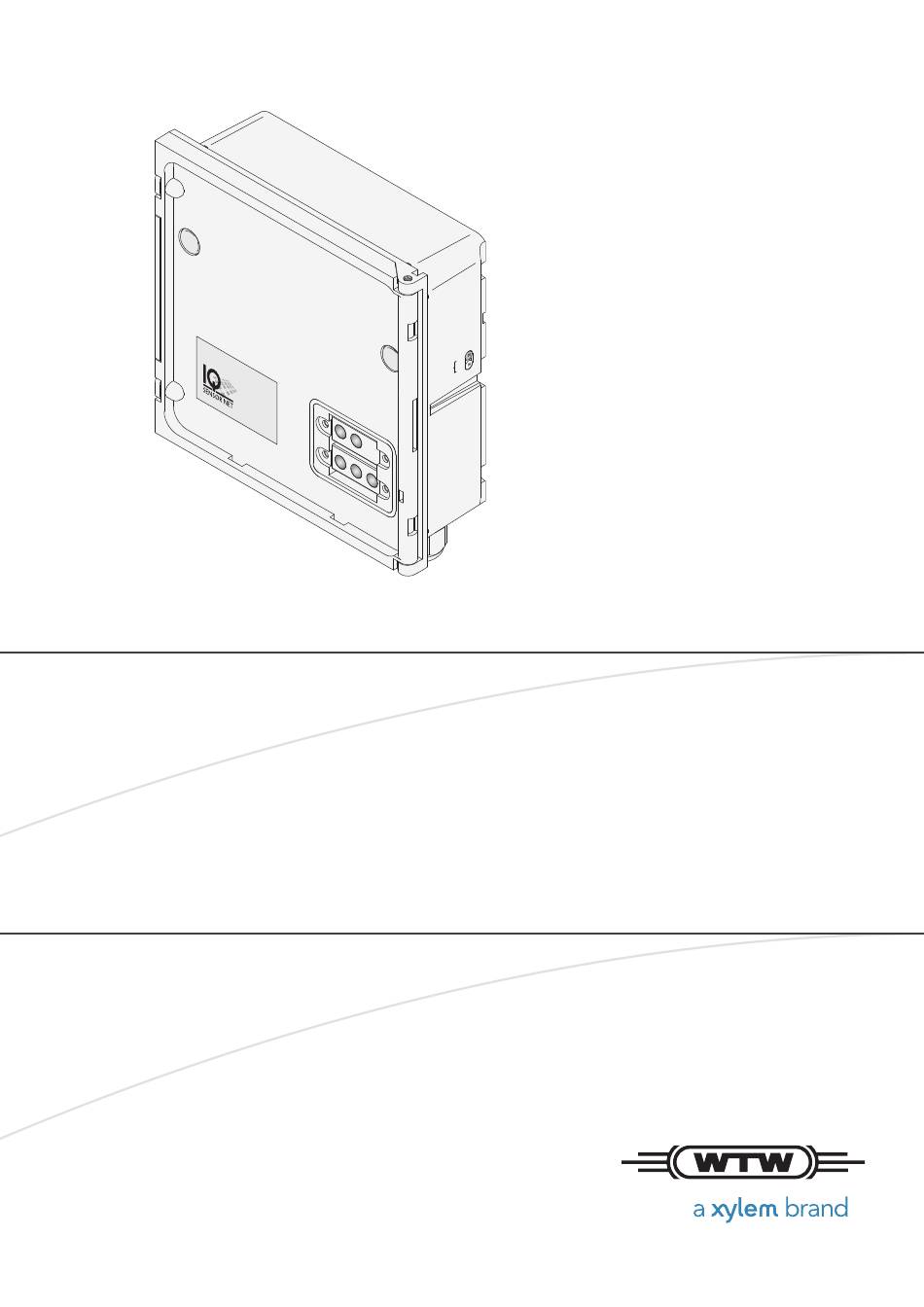

- Page 1 OPERATING MANUAL ba75541e07 03/2018 P o w IQ S ENSOR MIQ/R6 IQ S SIX CHANNEL RELAY OUTPUT MODULE ENSOR...
- Page 2 MIQ/R6 © Copyright 2018 Xylem Analytics Germany GmbH Printed in Germany. ba75541d07 03/2018...
-
Page 3: Table Of Contents
MIQ/R6 List of contents MIQ/R6 - List of contents Overview ....... 5 1.1 How to use this component operating manual . - Page 4 List of contents MIQ/R6 Indexes ....... 22 7.1 Explanation of the messages ....22 7.1.1 Error messages .
-
Page 5: Overview
MIQ/R6 Overview Overview How to use this component operating manual Structure of the IQ Sensor Net Operating Manual IQ S ENSOR operating manual System Operating Manual (Ring Binder) Operating Operating Operating Manual Manual Manual IQ Sensor MIQ Module Option (e.g. Fieldbus) Components and Options Fig. -
Page 6: Features Of The Miq/R6
Overview MIQ/R6 Features of the MIQ/R6 General The MIQ/R6 output module has six relay outputs. You can link relay outputs to characteristics sensors. The linked relay outputs can be used to monitor sensors or to output measured values. Unlinked relay outputs can be used for general monitoring functions. -
Page 7: Safety Instructions
MIQ/R6 Safety instructions Safety instructions Safety information 2.1.1 Safety information in the operating manual This operating manual provides important information on the safe operation of the product. Read this operating manual thoroughly and make yourself familiar with the product before putting it into operation or working with it. The operating manual must be kept in the vicinity of the product so you can always find the information you need. -
Page 8: Safe Operation
Safety instructions MIQ/R6 Safe operation 2.2.1 Authorized use The authorized use of the MIQ/R6 consists of providing relay outputs in the IQ S . Only the operation and running according to the instructions ENSOR and technical specifications given in this operating manual is authorized (see chapter 6 T ). -
Page 9: Installation
MIQ/R6 Installation Installation Scope of delivery MIQ module Accessory set, including: – 4 x cable glands (clamping range 4.5-10 mm) with seals and blind plugs – 4 x ISO blind nuts M4 with suitable cheese-head screws and plain wash- –... -
Page 10: Installation In The Iq S
Installation MIQ/R6 – Temperature resistance (minimum and maximum temperature) – Stability against UV light when used outdoors – Protection against water and dust (Nema or IP protection class). Suitable fusing of the electrical circuit – Overcurrent fuses (in accordance with the technical data of the device input or output) –... -
Page 11: Electrical Connections: General Instructions
MIQ/R6 Installation Electrical connections: General instructions Cable glands All electric cables are fed from below via prepared openings in the enclosure of the MIQ/R6. Cable glands with different clamping ranges are included with the MIQ/R6 to provide sealing between the cable and enclosure as well as for strain relief. - Page 12 Installation MIQ/R6 them to the terminal strip Any wires that are not used and project into the enclosure must be cut off as closely as possible to the cable gland. Screw a small cable gland with sealing ring into each remaining free opening and close it with a blind plug.
-
Page 13: Connections To The Relay Outputs
MIQ/R6 Installation Connections to the relay outputs WARNING If external electrical circuits that are subject to the danger of physical contact are incorrectly connected to the relay contacts, there may be a danger of life threatening electric shock. Electrical circuits are regarded to be subject to the danger of physical contact when there are voltages higher than the Safety Extra Low Voltage (SELV). - Page 14 Installation MIQ/R6 Connecting lines Open the module. to the terminal strip 240 VAC 240 VAC 240 VAC 240 VAC 240 VAC 240 VAC 2 A AC 2 A AC 2 A AC 2 A AC 2 A AC 2 A AC SENSORNET 2 SENSORNET 1 Segment 2...
- Page 15 MIQ/R6 Installation Close the module. ba75541d07 03/2018...
-
Page 16: Settings
Settings MIQ/R6 Settings The MIQ/R6 module has six relay outputs. Relay outputs operate as openers (normally closed) or closers (normally open). On the IQ S terminal, you can ENSOR assign a name to the outputs. link outputs with sensors ... -
Page 17: Maintenance And Cleaning
MIQ/R6 Maintenance and cleaning Maintenance and cleaning Maintenance The MIQ/R6 requires no special maintenance. The general maintenance of IQ S components is described in the IQ S system ENSOR ENSOR operating manual. Cleaning The cleaning of IQ S components is described in the IQ S ENSOR ENSOR system operating manual. -
Page 18: Technical Data
Technical data MIQ/R6 Technical data General data Dimensions 144.0 52.2 Front view: Side view: 115.0 11.0 70.0 16.5 Rear view: Stack mounting: Fig. 6-1 Dimension drawing of MIQ module (dimensions in mm) Mechanical Maximum number of structure MIQ modules in a mod- ule stack Enclosure material Polycarbonate with 20 % glass fiber... - Page 19 MIQ/R6 Technical data Weight Approx. 0.5 kg Type of protection IP 67 (not suitable for conduit connection). Cable glands Suitable for cable 4.5 - 10 mm or sheath diameter 9.0 - 13 mm Ambient Temperature conditions Mounting/installation/ + 5 °C ... + 40 °C (+ 41 ... +104 °F) maintenance Operation - 20 °C ...
-
Page 20: Miq/R6
Technical data MIQ/R6 MIQ/R6 Electrical data Nominal voltage Max. 24 VDC via the IQ S (for ENSOR details, see the T chapter of ECHNICAL DATA the IQ S system operating ENSOR manual) Power consumption 1.5 W Protective class Overvoltage category Terminal IQ S con-... - Page 21 MIQ/R6 Technical data Relay functions – System monitoring – Sensor monitoring – Limit indicator – Frequency output – Pulse-width output – Cleaning – Sensor-controlled – Manual control – Alarm contact ba75541d07 03/2018...
-
Page 22: Indexes
Indexes MIQ/R6 Indexes Explanation of the messages In this chapter you will find a list with all the message codes and corresponding message texts that may occur in the log book of the IQ S system for ENSOR the MIQ/R6 output module. Information about ... - Page 24 For more information on how Xylem can help you, go to xyleminc.com. ® Service address: Xylem Analytics Germany Sales GmbH & Co. KG Dr.-Karl-Slevogt-Str. 1 82362 Weilheim Germany Tel.: +49 881 183-325 Fax: +49 881 183-414 E-Mail wtw.rma@xyleminc.com Internet: www.WTW.com Xylem Analytics Germany GmbH Dr.-Karl-Slevogt-Str. 1 82362 Weilheim Germany...
