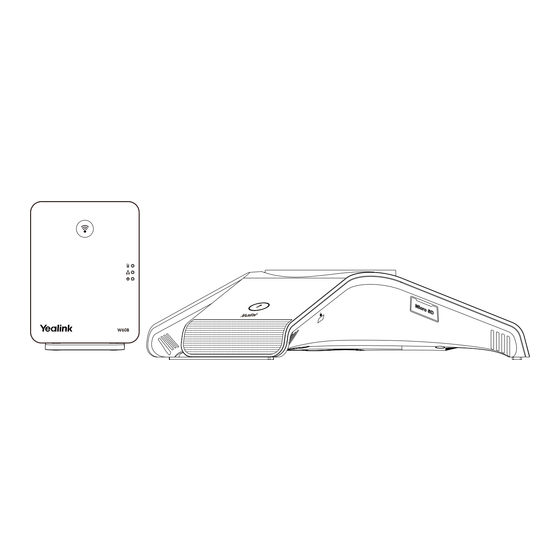

DECT Conference Phone
CP930W-Base & CP930W
Quick Start Guide(V83.21)
For W60B firmware: 77.83.0.20 or later
For CP930W firmware: 87.83.0.20 or later

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CP930W-Base and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Yealink CP930W-Base

Summary of Contents for Yealink CP930W-Base

  • Page 1 DECT Conference Phone CP930W-Base & CP930W Quick Start Guide(V83.21) For W60B firmware: 77.83.0.20 or later For CP930W firmware: 87.83.0.20 or later...
  • Page 2 Base Stand CP930W CP930W-Base & CP930W 2 Power Adapters Ethernet Cable Quick Start Guide Note: Yealink CP930W-Base DECT conference phone consists of one W60B base station and one CP930W. CP930W Package Contents CP930W-Base & CP930W Power Adapter Charging Cradle CP930W...
  • Page 3 PoE (Power Over Ethernet) Option Note: • If you choose method a, use Yealink-supplied power adapter (5V/600mA). A third-party power adapter may damage the base station. • If you choose method b, you do not need to connect the power adapter. Make sure the hub/switch is PoE-compliant.
  • Page 4 3. Connect the charging cradle and charge the CP930W. Note: • Use Yealink-supplied power adapter (12V/1A). A third-party power adapter may damage the DECT conference phone. • Check the charging status on the top-right corner of the LCD screen. 4. Connect the optional PC.

  • Page 5: Getting Started

    Getting Started Hardware Overview Microphone Microphone Mute Key Speaker LCD Screen Welcome Initializing...Please wait Soft Keys Off-hook Key On-hook/Power Key Up Navigation Key Bluetooth Key Keypad Down Navigation Key OK Key Volume(+) Key Volume(—) Key Registration You can register up to 8 CP930W to one W60B base station. Each CP930W can only be regis- tered up to one base station.

  • Page 6: Basic Operations

    Note: • If the CP930W is registered to the base station successfully, the LCD screen prompts “Handset Subscribed” and “Base NO.”( the “NO.“ indicates the last 4 characters of the base station’s MAC address). • If the CP930W LCD screen prompts “Searching for Base”, check that your base station is powered on.

  • Page 7: Handset Settings

    1. Long tap The LCD screen prompts you whether to power off the phone. 2. Tap the Yes soft key to continue. Handset Settings Handset Name To rename the handset: 1. Tap Menu->Settings->Basic Settings->Phone Name. 2. Enter the value in the Phone Name field. 3.

  • Page 8: Basic Call Features

    2. Select the desired contact, tap the Options soft key and then select Delete. The LCD screen prompts you whether to delete the selected item. 3. Tap Yes to continue. Basic Call Features Placing Calls To place a call directly: 1.

  • Page 9: Call Hold And Resume

    Call Mute and Unmute To mute a call , the mute key LED illuminates solid red. To unmute a call again to unmute the call. The mute key LED illuminates solid green. Call Hold and Resume To hold a call: Tap the Hold soft key during a call.

  • Page 10: Call Forward

    Blind Transfer 1. Tap the Transfer soft key during a call. The call is placed on hold. 2. Enter the number you want to transfer the call to. You can also select a contact you want to transfer to from Directory. 3.

  • Page 11: Regulatory Notices

    We are not liable for problems with Yealink device • Do not open or mutilate the battery, released electrolyte is corrosive and arising from the use of this product;...

  • Page 12: Technical Support

    As one of the best providers in more than 140 countries and regions including the US, the UK and Australia, Yealink ranks No.1 in the global market share of SIP phones shipments.
