The Reset button is used to setup the RF device. Please go to (RF Connection Setup) for more
instructions
4.) Link
The link will show if the IP Power 9268-PR (Slave) is connected to the 9268-M (Master) device

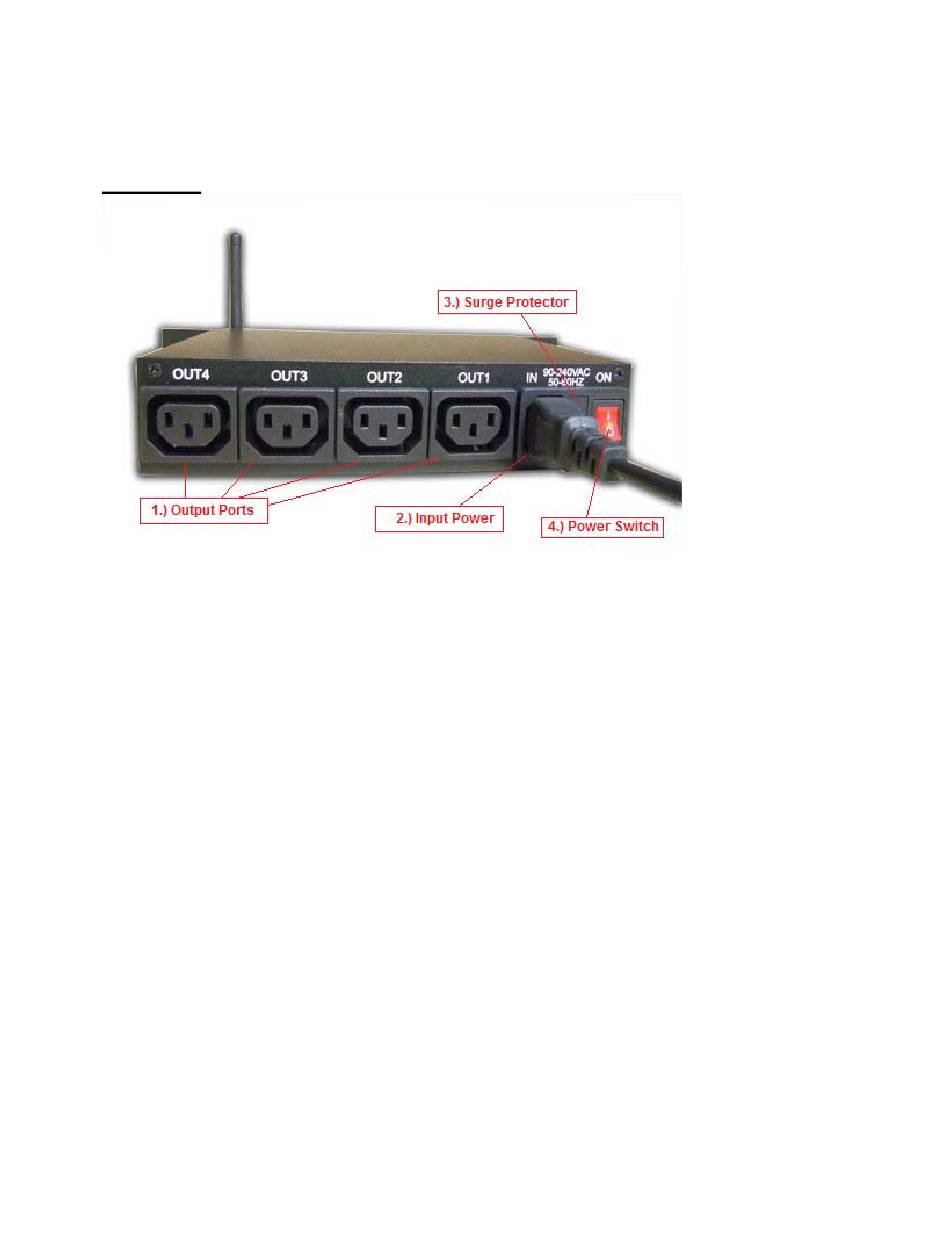

Rear View
1.) Output Ports
Connect the devices that need to be controlled in the Output Ports.
2.) Input Power
The Input Power allows the 9268-PR to power up the devices.
3.) Surge Protector
In the case of a power surge, the fuse in located in the Surge protector.
4.) Power Switch
Power switch turns on or/off the IP Power 9268
