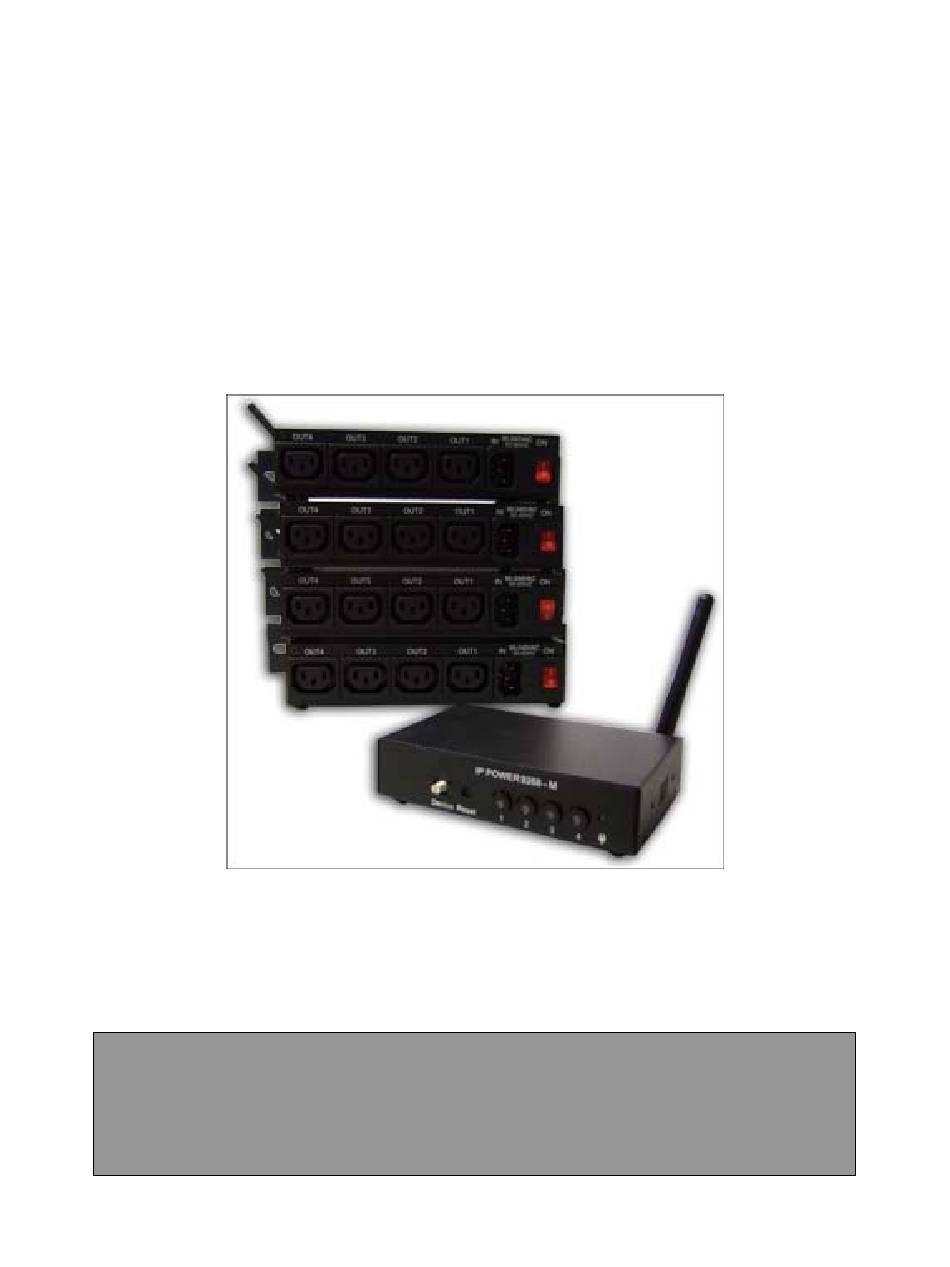

- Page 1 IP Power 9268 User Manual Firmware Version: 1.3 Date Released: 06/16/2009 - 1 -...
- Page 2 IMPORTANT NOTICE 1. IP Power 9268 was designed for indoor use, we carry no responsibility for possible damages caused by outdoor use, especially in the rain. 2. Please use the power adapter provided by the dealer, we carry no responsibility for the possible damage from using power adapters not .
-
Page 3: Table Of Contents
9268-M (Master) ............................8 9268-PR (Power Receiver) ........................... 9 4.) SETTING UP THE IP POWER 9268 ............. 11 Step 1: Setting up the Hardware ....................... 11 Step 2: Setting up the device with IP Edit ....................11 ... - Page 4 Control Center ............................19 RF Control Panel: ............................ 20 System Configuration ..........................21 RF Setup ..............................21 System Setup ............................22 DDNS Setup ............................23 Email Setup .............................. 24 Change Password ............................. 25 ...
-
Page 5: Welcome
1.) Welcome Introduction The IP Power 9268 is a state of the art Power Distribution Unit (PDU) & Remote Power Control (RPC) system. The various applications of the 9268 includes: Power Management, System Integration, Remote Power Control in Remote locations, & etc. -
Page 6: Product Overview
2.) Product Overview Features 1. One Master Connects 4 Receiver devices 2. Each slave device can connect up to a distance of 30 - 50 Meters 3. Email Capabilities 4. Supports: TCP/IP, Http API, Web Server, SMTP Server, DDNS, Log file, CNT, XML 5. -
Page 7: Package Contents
Package Contents Package Contents 1.) 9268-M (Master) Unit x 1 2.) 12V 1A Power Adapter 2.) 9268 PR (Power Receiver) Unit x 4 3.) Antenna Unit x 5 2.) 9268 Installation CD 4.) RJ45 Cable x 1 (Optional) 5.) Input Power Cable (Optional) - 7 -... -
Page 8: Interface Description
2.) 9268 Reset: To reset to original manufacture settings, hold down the reset button with a pen or a pin for 7 seconds or more. The Default Values of the IP Power 9268 are Default IP Address: 192.168.1.192 Default Login: admin Default Password: 12345678 3.) Power Controls:... -
Page 9: 9268-Pr (Power Receiver)
Rear View 1.) 9268-M Network Jack RJ45: Connect the 9268-M to the Ethernet / internet though this jack 2.) 9268 Reset: Use a DC 5V 1A Power Adaptor. 9268-PR (Power Receiver) Front View 1.) RS232 Com Port The RS232 Com Port is currently used by the manufacturer for debugging purposes 2.) Output Ports The green LED lights will light up with the output has been turned on 3.) Reset... - Page 10 The Reset button is used to setup the RF device. Please go to (RF Connection Setup) for more instructions 4.) Link The link will show if the IP Power 9268-PR (Slave) is connected to the 9268-M (Master) device Rear View 1.) Output Ports Connect the devices that need to be controlled in the Output Ports.
-
Page 11: Setting Up The Ip Power 9268
Max Output Current: (total of each four outlets) 15A, (each outlet) 6A Step 1: Setting up the Hardware 1.) Connect the IP Power 9268-M to a HUB or Router with a RJ45 network cable. 2.) Connect the HUB or Router to the internet (May through ADSL/XDSL modem). -
Page 12: Step 3: Setting Up The 9268-Pr Rf Settings
“Beeping sounds” 3.) Then Open IPEdit double click on your device in the local Area section. Or enter the IP Address of your device into Internet Explorer. 4.) Login to the IP Power 9268-M - 12 -... - Page 13 The Default Values of the IP Power 9268: IP Address: 192.168.1.192 Login: admin Password: 12345678 5.) After logging into the device Select the RF Setup link 6.) While the 9268-PR is still beeping hit the GetID button. Example: If you want the device to be in...
-
Page 14: Step 4: Accessing The Device From Outside The Network
7.) Once the device has been setup click on RF control link to left of the page to check to make sure the device has been connected. Step 4: Accessing the device from outside the network Note: To access the device from outside of the network you must port forward, port triggering, the routers that is being used to connect the device. -
Page 15: Hardware Interface
Reset to Default values Resetting Values to Manufacturer Default To reset to original manufacture settings on the IP Power 9268-M (Master), hold down the reset button with a pin or pen for 7 seconds or more. The Default Values of the IP Power 9268: IP Address: 192.168.1.192... - Page 16 “Super User” Password Reset In an even where the password cannot be recovered, the “super user” password reset can be used To reset the password: 1.) Go to the login page of the device 2.) Type in the words “super user” without the quotations. (There is a space between super and user.) 3.) Click the Ok button to confirm.
-
Page 17: Replacing The Fuse
3.) The fuse can be purchased at most electrical stores Model: U/C GFE 10A 250V (PF) 7.) Web Interface Log In to IP Power 9268 Once the 9268 has been setup correctly, log into the device. First Option 1.) Go to IPEdit find the device that is being used 2.) Double click on the device link and a IE window will appear with the loading screen... -
Page 18: Logging In
After the device has been configured it is time to login to the device via the web interface. 3.) Open IPEdit 4.) Find the IP Power 9268 Device on the right hand side 5.) Double click on the IP Power 9268 and a Internet Explorer window will appear Main Screen After the device is logged in the following page will be displayed on the screen. -
Page 19: Control Center
Control Center Control Center The Control center is where the 9268PR (slave) device(s) are controlled. From this screen each device can be controlled on/off. Access Number: The access number is the number of the device listed - 19 -... -
Page 20: Rf Control Panel
Receiver Name: Receiver name is the Name of the Power Receiver that is selected. If no name has been selected then it will be left blank Receiver ID: Receiver ID is the physical address of the Power Receiver that is used by the 9268-M to identify the device Status: The status on the 9268 will show the following: On: The 9268 Slave device has been setup correctly and is currently detectable... -
Page 21: System Configuration
(Control Panel) From the control panel each power outlet for that device can be customized. Hit the apply button after the changes have been made. To turn on or off the outlet select On or Off and then hit the apply button to activate the command. -
Page 22: System Setup
DNS: DNS settings of the IP Power 9268 DHCP Client: Enable or Disable Automatic DHCP Beeper: Turns off the beeper sound of the IP Power 9268 Http Command Verification: Turns on / off the Http: commands of the device. Device Name: Enter name for the device. -
Page 23: Ddns Setup
DDNS Setup DDNS setup allows the IP Power 9268 to be used on DDNS. A DDNS account must be applied for The following information will need to be inputed: DDNS Server IP: This is where you Enter the DDNS Server IP... -
Page 24: Email Setup
Email Setup The Email function of the IP Power 9268 allows the device to notify the user when changes have been made, power outlets are turned on or off, or any modification of the fields. Smtp Server: Type in the server address of the Email provider... -
Page 25: Change Password
Change Password The default login and password: Login: admin Password: 12345678 To change the password: 1.) Type in Old Password 2.) Type in the New Password 3.) Confirm New Password Firmware Update Warning: Please be sure before you are ready to update the device. To update the device: 1.) Make sure that you have received the proper firmware for the IP Power Device 2.) Then on the web page select the Firmware Update page... -
Page 26: System Log
System Log The System Log keeps track of the movements of the IP Power 9268. From this page, information on the device, which ports are being will be collected and gathered. Refresh: Refresh will refresh the current log Clear: Clear will clear the current log information Change Time The change time feature allows the device to always have the correct time / date. -
Page 27: Frequently Asked Questions (F.a.q)
8.) Frequently Asked Questions (F.A.Q) Q1: How do I reset the device back to manufacturer default values? Ans: In the front panel of the 9268-M, there is a reset feature that will reset the device back to manufacturer default settings. Take a pen or small pin, then press and hold for about 10-15 seconds.
