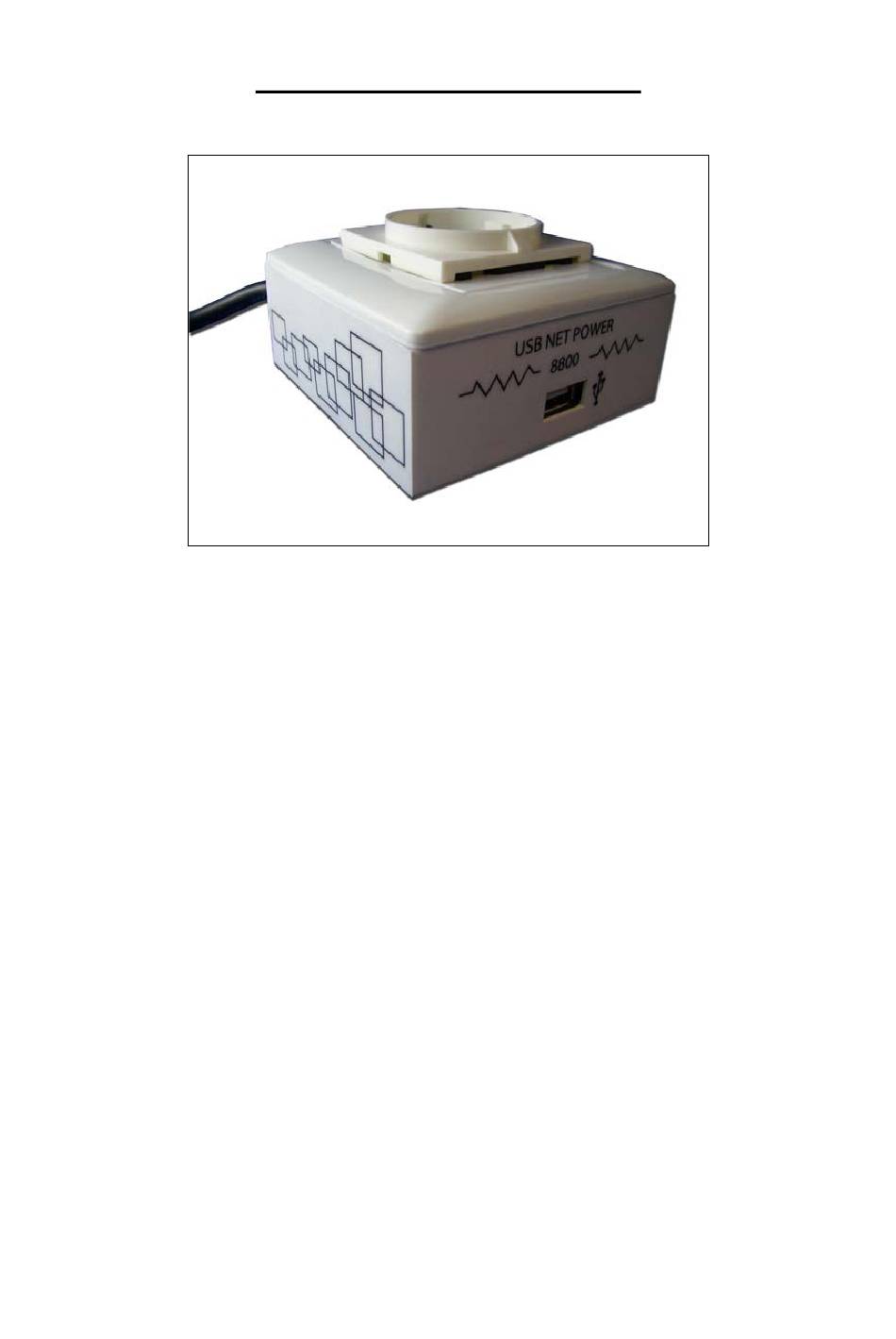

- Page 1 USB Net Power 8800 Manual Release Date: 01/27/2010 Manual Version:1.0...
-
Page 2: Table Of Contents
Table of Contents Welcome ........................3 Introduction ......................3 Minimum System Requirements ................3 Product Overview ......................4 Features ........................4 Specifications ......................4 Package Contents ....................5 Product Interface ......................6 Hardware Interface ....................6 Front View ...................... 6 Back View ....................... -
Page 3: Welcome
Also with a scheduler function included this device can easily become automated to turn on and turn off anything connected. Based off of Aviosys IP Power design this new 1 port economical solution allows flexibility of using this device for any situation and location. All you need is a PC and a power jack and you can control anything. -
Page 4: Product Overview
Timer Scheduler: Preset the time to control power on / off Exchangeable Fuse Protection. SDK Available User friendly, compact, and simply just plug & play. Specifications Model: USB Net Power 8800 Input Voltage Range: 100V ~ 240V Maximum Current: 6A Weight: 300 grams Dimensions: 85mm x 85mm x 50mm... -
Page 5: Package Contents
Package Contents 8800 Device x 1 USB Cable USB cable that is used to connect the 8800 to the computer that will be controlling the device. Installation CD Comes with drivers, manual, and software. Extra Fuse Extra fuse is provided. -
Page 6: Product Interface
Product Interface Hardware Interface Front View The front view of the 8800 consists of a USB port that allows you to connect the 8800 to the computer. Back View On the back of the device there will be a fuse section and the Power Input cord that will be connected to your power source. -
Page 7: Replacing The Fuse
Replacing the Fuse The specs for the device are the following: Model: USB Net Power 8800 Input Voltage Range: 100V ~ 240V Maximum Current: 6A Weight: 300 grams Dimensions: 85mm x 85mm x 50mm Operation Temp: 0℃ ~50℃ , (32℉ ~120℉ ) Fuse Specs: European Standard: 6.3A... -
Page 8: Software
Software Installation Instructions The software for the device is located on the Media Link-IP Family CD that came with the device. IP Kamera Pack is located on the main page of the CD. Please follow the directions carefully and install the necessary files 1.) First place the Media Link-IP Family CD that came with your device into your CD/DVD Rom drive. - Page 9 2.) Select the Usb Net Power 8800 in the USB Series section. 3.) Download the following software and save them to the appropriate locations. USB Net Power – The USB Net Power software is specifically used to control the device, set a schedule, and setup remote control IP Power Center –...
-
Page 10: Software Interface
Software Interface Date & Time The date and time section will automatically synchronize the time and date with the computer that is being used. This time will be used to setup the scheduler for the device so that it can correctly turn on and off devices at the desired times. - Page 11 Start Date: Choose the date of when you want the device to turn on or off. Simply type in the date you would like or click on the dropdown menu to present the calendar. Then simply click on the desired date. End Date: Choose the date when you want the event to stop happening.
-
Page 12: On / Off Controls
everyday at the desired time until the end date has been reached. 3.) Then select a Time and for the command choose on or off 4.) Once everything has been set make sure to hit the New button to add this new event to your scheduler Edit Event To edit an existing event, follow the following steps:... -
Page 13: Remote Settings
To the right side of the program you will see a message log that will keep track of power statuses being used. It will report the time and status so that you can easily keep track of your power status. Remote Settings The remote setting section is where you can setup the device so that it can be controlled from outside the network. -
Page 14: Logs & Messages
Logs & Messages The logs and messages section will basically keep track of the actions of your device. It will state the time and action that was performed at that time. Clear Logs The clear logs button will clear the logs section of the software. Simply just click on the Clear Logs button. Update Software When there is an update for the device software, the update button will become activated. -
Page 15: Controlling Power Remotely
Controlling Power Remotely Using Mac With CNT technology connecting to your device without any type of port forwarding has become easy. When you select this option to control the device using Mac you will be required to use this following program: IP Power Center With IP Power center you can connect to your device from any networked location. - Page 16 3.) Type the username of your device and click the search button. Then your USB Power will appear. Double click on the device name and a login window will open 4.) Type in the correct the username and password and click the add button to add to IP Power Center 5.) Then expand the group device section and you will find your device there.
-
Page 17: Using Gae
Using GAE GAE adds a new way to remotely control the USB Net Power. With the power google cloud computing, this GAE functionality allows you to control the USB Net Power from any remote location with internet. To use this functionality simply follow the following steps: 1.) Setup the USB Net Power to accept GAE and hit the send button. - Page 18 4.) In the link provide type in the user name of your device and click the search button. 5.) Click on your device and a login page will appear to connect to your device. 6.) Then type in the username and login password for your device and press the send button.
-
Page 19: Faq
Your Feedback is definitely important for us to continue providing the great quality products and service that Aviosys has to offer. We definitely would like to know what you think about our products and how we can we can make your Aviosys experience even better.
