U-F-M KATflow 230 Operating Instructions Manual

Portable ultrasonic flowmeter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

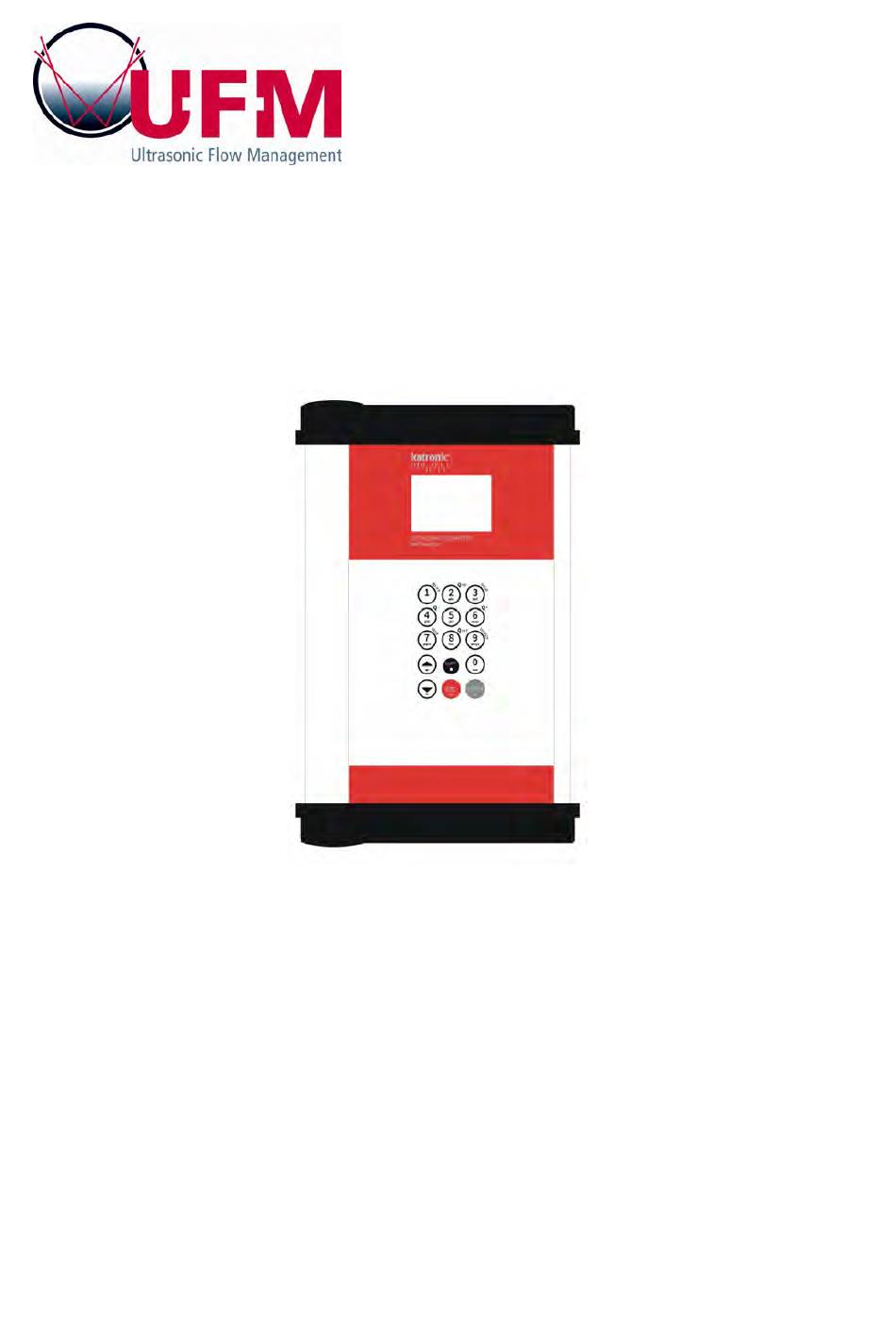

Operating Instructions
Portable
Ultrasonic Flowmeter
KATflow 230

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KATflow 230 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for U-F-M KATflow 230

  • Page 1 Operating Instructions Portable Ultrasonic Flowmeter KATflow 230...
  • Page 2 Official Katronic distributor: U-F-M B.V. Argon 24 NL-4751 XC Oud-Gastel The Netherlands T +31 (0)165 856 555 E info@u-f-m.nl www.u-f-m.nl Operating Instructions KATflow 230 Version V17EN140917 Copyright © 2014 All rights reserved.

  • Page 3: Table Of Contents

    Table of Contents KATflow 230 KATflow 230 Operating Instructions Table of Contents Page 1 Safety instructions, legal requirements, warranty, return policy....5 1.1 Symbols used in these operating instructions..........5 1.2 Safety instructions..................5 1.3 Warranty......................6 1.4 Return policy....................6 1.5 Legislative requirements................6 2 Introduction......................7 2.1 System configyration..................8...
  • Page 4 KATflow 230 Table of Contents 5.3.1 Main PV....................33 5.4 Output configuration..................34 5.4.1 Serial interface RS 232................34 5.4.2 Analogue current output 0/4 ... 20 mA...........35 5.4.3 Digital Open-Collector output..............35 5.4.4 Digital relay output.................35 5.5 Input configuration..................36 5.5.1 PT100 inputs..................36 5.6 Inputs/Outputs using serial expansion box...........36 5.7 Heat quantity measurement (HQM)..............39...

  • Page 5: Safety Instructions, Legal Requirements, Warranty, Return Policy

    1 Safety instructions, legal requirements, warranty, return policy KATflow 230 1 Safety instructions, legal requirements, war- ranty, return policy 1.1 Symbols used in these operating instructions Danger This symbol represents an immediate hazardous situation which could result in a serious injury, death or damage to the equipment. Where this symbol is shown, do not use the equipment further unless you have fully understood the nature of the hazard and have taken the required precautions.

  • Page 6: Warranty

    1 Safety instructions, legal requirements, warranty, return policy KATflow 230 1.3 Warranty Any product purchased from KATRONIC is warranted in accordance with ● the relevant product documentation and as specified in the sales contract provided it has been used for the purpose for which it has been designed and operated as outlined in these operating instructions.

  • Page 7: Introduction

    The clamp-on sensors are attached to the outside of the pipes. The KATflow 230 uses ultrasonic signals for the measure- ment of the flow, employing the transit-time method.

  • Page 8: System Configyration

    KATflow 230 2 Introduction 2.1 System configuration A maximum of 2 sensor pairs can be installed - if two pairs are installed these can be configured either in a 1-pipe dual-path or a 2-pipe single path configuration. Illustration 3: KF230 in a 1 pipe 2 path configuration...

  • Page 9: Installation

    3.1.3 Identification of components The following items are typically supplied (please refer to your delivery note for a detailed description): KATflow 230 portable flowmeter ● Clamp-on sensors (usually one or two pairs depending on pipe sizes to be ●...

  • Page 10: Clamp-On Sensor Installation

    KATflow 230 3 Installation 3.2 Clamp-on sensor installation The correct selection of the sensor location is crucial for achieving reliable meas- urements and a high accuracy. Measurement must take place on a pipe in which sound can propagate (see Acoustic Propagation) and in which a rotationally sym- metrical flow profile is fully developed (see Straight Pipe Lengths).
  • Page 11 KATflow 230 3 Installation For a free inlet or outlet pipe section: Select the measuring point at a location where the pipe cannot run empty. Correct Disadvantageous Correct Disadvantageous For a vertical pipe: Select the measuring point at a location where the liquid flows upward to ensure that the pipe is completely filled.
  • Page 12 KATflow 230 3 Installation Disturbance source: 2 x 90° -elbows in different planes Inlet Outlet L ≥ 40 D L ≥ 5 D Disturbance source: T-section Inlet Outlet L ≥ 50 D L ≥ 10 D Disturbance source: diffuser Inlet Outlet L ≥...

  • Page 13: Pipe Preparation

    KATflow 230 3 Installation 3.4 Pipe preparation Clean dirt and dust from around the area of the pipework where the ● sensors are to be placed. Remove loose paint and rust with a wire brush or file. ● Firmly bonded paint does not necessarily need to be removed provided the flow- meter diagnostics indicate sufficient signal strength.

  • Page 14: Flowmeter Installation

    KATflow 230 3 Installation 3.6 Flowmeter installation 3.6.1 Outline dimensions The KATflow 230 is a portable, battery operated device with the following outline di- mensions. Flowmeter outline dimensions Drawing 1: Outline dimensions KATflow 230 Process I/O connector K1 type transducer...

  • Page 15: Electrical Connections

    KATflow 230 3 Installation 3.6.2 Electrical connections Drawing 3: Electrical connections overview KATflow 230 3.7 Clamp-on sensor mounting Before the sensors can be mounted the installation location should have been determined, ● a sensor mounting method should be chosen, ●...

  • Page 16: Sensor Pipe Mounting Configurations

    KATflow 230 3 Installation 3.7.1 Sensor pipe mounting configurations Illustration 6: Sensor pipe mounting configurations 3.7.2 Acoustic coupling gel In order to obtain acoustical contact between the pipe and the sensors, apply a bead of acoustic coupling gel lengthwise down the centre of the contact area of the sensors.

  • Page 17: Correct Positioning Of The Sensors

    KATflow 230 3 Installation 3.7.3 Correct positioning of the sensors Illustration 8: Correct positioning of the sensors Mount the transducer pair so that the front edges of the sensors (opposite the cable entry) face each other. There is a different engraving on the top of each transducer. The transducers are mounted correctly if the engravings on the two transducers form an arrow.
  • Page 18 KATflow 230 3 Installation Place the transducer on the side of the pipe or alternatively up to 45 de- ● grees from the horizontal plane through the pipe. This is advisable to establish the best acoustic contact since on top of the pipe air pockets could develop and deposits could accumulate at the bot- tom of the pipe.

  • Page 19: Operation

    KATflow 230 4 Operation 4 Operation 4.1 Switching On/Off The flowmeter is switched on by holding the <ON> key for more than 2 seconds continuously. Equally it can be switched off by pressing the <OFF> key for more than 2 seconds.

  • Page 20: Keypad And Display

    KATflow 230 4 Operation 4.3 Keypad and display Display Keypad RS 232 Serial Interface Illustration 12: Keypad and display overview 4.3.1 Keypad key functions Main function Secondary function Character entry: Show NEXT available item (1 short key stroke) (2 short key strokes)
  • Page 21 KATflow 230 4 Operation Character entry: > Character entry: = Reset positive total value Character entry: Toggle MUltipleXer (where multi- channel functions are provided) Character entry: = Stop totaliser function Character entry: Move menu/list selection item Character backspace clear Character entry:...

  • Page 22: Display Functions

    KATflow 230 4 Operation 4.3.2 Display functions Display icons Menu header Display line 1 Display line 2 Date, time Illustration 13: Main display functions Display icon Function Icon not used Datalogger recording Datalogger switched off 1 segment = 33% battery power available...

  • Page 23: Quick Setup Wizard

    KATflow 230 4 Operation RTC operating RTC failure Error recorded in error log No error detected Serial output RS 232 switched on Serial output RS 232 switched off Displays whether flow is laminar, turbulent or mixed "L", "T" or "LT"...
  • Page 24 KATflow 230 4 Operation Enter outside pipe diameter using alphanumer- ical keys and confirm by pressing <ENTER>. Use key <UP> as character backspace clear to correct for data entry errors. If 0 is entered, an additional screen appears that allows entering the pipe circumference.

  • Page 25: Measurements

    KATflow 230 4 Operation Use cursor keys to select Start Measurement. Confirm by pressing <ENTER>. Sensor placement screen: Mount transducers with suggested spacing and use middle bar for fine adjustment of position (central position is desired). Observe signal-to-noise (upper bar) and quality (lower bar).

  • Page 26: 3-Line Display

    KATflow 230 4 Operation 3-line display format Display screen Operation The three-line display screen is configure- able to show flow, totalizers and diagnostic functions. Change to diagnostic displays by pressing <DISP> and to totalizer and dual mode screens by pressing <NEXT>.

  • Page 27: Dual Channel Measurement Screen

    KATflow 230 4 Operation 4.5.4 Dual PV display (multi-channel meters) Display screen Operation Line 1 shows the PV on the selected channel. Line 2 shows the selected units. Line 3 shows the PV on the other channel (in its selected units) Change to diagnostic displays by pressing <DISP>...

  • Page 28: Commissioning

    KATflow 230 5 Commissioning 5 Commissioning 5.1 Menu structure Menu structure Main menu Menu level 1 Menu level 2 Description/settings Quick Start Setup Wizard Sensor type Indication of sensor type and serial number if automatically detected, otherwise select from list ↑↓...
  • Page 29 KATflow 230 5 Commissioning None, Epoxy, Rubber, PVDF, PP, Glass, Cement, User (liner c-speed) Liner c-speed Only if lining material selected 600 ... 6553.0 m/s Liner thickness Only if lining material selected 1.0 ... 99.0 mm Select from list ↑↓...
  • Page 30 KATflow 230 5 Commissioning Kinematic 0.001 ... 30000 mm (viscosity) Density 100 ... 2000 kg/m C-speed 100 ... 3500 m/s Temperature -30 ... 300 ° C Lining Select from material list ↑↓ Material Thickness 1 ... 99 mm C-speed 600 ... 6553.0 m/s Passes Select from list ↑↓...
  • Page 31 KATflow 230 5 Commissioning Alarm (select on point, off point) Pulse (select value, width) Linear (select min value, max value, damping) PT100 4 WIRE Select from list ↑↓ Source Channel 1, Channel 2 Math 1, Math 2 System, Test Select from list ↑↓...
  • Page 32 KATflow 230 5 Commissioning User Identifier Example: Pump P3A 9 character string Tag No. Example: 1FT-3011 9 character string Test Installation Control system simulation: 60 second ramping up of flow velocity in m/s from 0 to programmed Max F Cut and subsequent 60 second ramping down, i.e.

  • Page 33: Diagnostics

    KATflow 230 5 Commissioning g, t, kg, W, kW, MW, J, kJ, MJ, Sig dB (signal), noise dB, SNR, C m/s (sound speed), CU (housing temperature) Tin, Tout (inlet and outlet temperature) TEMP (specified or measured fluid temperature), SOS, DEN. KIN (derived sound speed, density, kinematic viscosity) Math (Calculated value –...

  • Page 34: Output Configuration

    KATflow 230 5 Commissioning 5.4 Output configuration There are two output connectors at the bottom of the KF230 enclosure. One is for serial communication, the other provides process inputs and outputs using an ex- pansion junction box. Illustration 14: Process output box 5.4.1 Serial interface RS 232...

  • Page 35: Analogue Current Output 0/4

    KATflow 230 5 Commissioning Analogue outputs 5.4.2 Analogue current output 0/4 ... 20 mA The analogue current outputs can be selected to operate in either 4 ... 20 mA mode or at 0 ... 20 mA across terminals 1 & 2 and 3 & 4 in standard configuration.

  • Page 36: Input Configuration

    KATflow 230 5 Commissioning 5.5 Input configuration There are two 4-wire circuit PT100 inputs available at the bottom of the enclosure. Two further inputs are possible using the expansion box. 5.5.1 PT100 inputs Inputs Wiring 4 wire configuration Plug connection...
  • Page 37 KATflow 230 5 Commissioning 5.6.2 HART compatible output The KF230 can also be configured with an optional module which responds to out- put commands conforming to the HART protocol. Please refer to customer support for further information. HART® is a registered trademark of the HART Communication Foundation.
  • Page 38 KATflow 230 5 Commissioning 5.6.5 Analogue frequency output (passive) Frequency outputs may be assigned to process values in the “mode” section of the output menu. The outputs can be programmed and scaled within the menu struc- ture. Wiring Electrical Galvanically isolated from main electronics and from other I/O's.

  • Page 39: Heat Quantity Measurement (Hqm)

    KATflow 230 5 Commissioning 5.6.8 PT100 inputs Inputs Wiring Electrical 3 and 4 wire options. Galvanically isolated from main electronics and from other I/O's. characterist- Temperature: Range -50 ... 400 ° C. Resolution: 0.01 K. Accuracy: ±0.1 K. 5.6.9 Analogue current input 0/4 ... 20 mA...

  • Page 40: Dual-Channel Flow Calculations (Maths Functions)

    KATflow 230 5 Commissioning 5.9 Dual-channel flow calculations (maths functions) Where suitably equipped, dual channel calculations are available from the System/Calculation/Math menu. These allow the user to select the sum, difference, average (mean) or maximum of the two flow channels.

  • Page 41: Scope Function

    KATflow 230 5 Commissioning 5.11 Scope function Katronic flowmeters have an additional scope function which shows a representa- tion of the pulse received by the sensors on Channel 1. In addition to displaying the received pulse, this screen lists the following data (from...

  • Page 42: Maintenance

    KATflow 230 6 Maintenance 6 Maintenance KATflow flowmeters are maintenance free concerning the flow measurement func- tions. Within the scope of periodic inspections, regular inspection for signs of dam- age or corrosion is recommended for the transducers, the junction box if installed, and the flowmeter housing.

  • Page 43: Troubleshooting

    KATflow 230 7 Troubleshooting 7 Troubleshooting Should there be the need to call customer service, please let us know the following details: Model code ● Serial number ● SW, HW revision ● Error log list ● Possible error messages may include the following:...
  • Page 44 KATflow 230 7 Troubleshooting COMM HS1 ERR Hardware Internal communication Power on/off, otherwise error call customer support COMM READ AVE Hardware Internal communication Power on/off, otherwise error call customer support COMM READ RAW Hardware Internal communication Power on/off, otherwise error...

  • Page 45: Technical Data

    KATflow 230 8 Technical data 8 Technical data Sound Speed* Shear Wave (at 25 ºC) Material ft/s Steel, 1% Carbon, hardened 3,150 10,335 Carbon Steel 3,230 10,598 Mild Steel 3,235 10,614 Steel, 1% Carbon 3,220 10,565 302 Stainless Steel 3,120...
  • Page 46 KATflow 230 8 Technical data All data given at 25 ºC (77 ºF) unless otherwise stated Change Kinematic Viscosity Sound Speed v/ºC Chemical Specific Substance ft/s m/s/ºC mm x10-6 ft Formula Gravity Acetic anhydride (CH3CO)2O 1.082 (20 ºC) 1,180 3,871.4 0.769...
  • Page 47 KATflow 230 8 Technical data (-89 ºC) (-128 ºF) Methanol CH4O 0.791 (20 ºC) 1,076 3,530.2 0.695 7.478 Methyl acetate C3H6O2 0.934 1,211 3,973.1 0.407 4.379 Methyl alcohol CH4O 0.791 1,076 3,530.2 0.695 7.478 1,328 4,357 Methyl benzene C7H8 0.867 4.27...
  • Page 48 KATflow 230 8 Technical data Tetrachloro-Methane CCl4 1.595 (20 ºC) 3,038.1 0.607 6.531 Tetrafluoro-methane 875.24 (- 2,871.5 1.75 (-150 ºC) 6.61 (Freon 14) 150 ºC) (-283 ºF) 1,328 4,357 Toluene C7H8 0.867 (20 ºC) 4.27 0.644 6.929 (20 ºC) (68 ºF)
  • Page 49 KATflow 230 8 Technical data 100.4 1525 4997 102.2 1527 5010 104.0 1528 5013 105.8 1530 5020 107.6 1532 5026 109.4 1534 5033 111.2 1535 5036 113.0 1536 5040 114.8 1538 5046 116.6 1538 5049 118.4 1540 5053 120.2 1541 5056 122.0...
  • Page 50 KATflow 230 8 Technical data 197.6 1549 5082 199.4 1548 5079 201.2 1547 5076 203.0 1547 5076 204.8 1546 5072 206.6 1545 5069 208.4 1544 5066 210.2 1543 5063 212.0 1543 5063 220.0 1538 5046 230.0 1532 5026 240.0 1524 5000 250.0...

  • Page 51: Specification

    KATflow 230 9 Specification 9 Specification General Measuring principle : Ultrasonic time difference correlation principle Flow velocity range : 0.01 ... 25 m/s Resolution : 0.25 mm/s Repeatibility : 0.15 % of measured value ± 0.015 m/s Accuracy : Volume flow ±...
  • Page 52 KATflow 230 9 Specification Internal data logger Storage capacity : In excess of 1 million data points (16MB) Logging data : Up to ten selected variables Communication Serial interface : RS 232, RS 485 (optional) Data : Instantaneous measured value,...
  • Page 53 KATflow 230 9 Specification Clamp-on sensors Type K1L,K1N, K1E Diameter range : 50 ... 3000 mm Dimensions : 60 x 30 x 34 mm Material : Stainless steel Temperature range : Type K1N: -30 ... 130 ° C (-22 ... 266 ° F) Type K1E: -30 ...

  • Page 54: Index

    KATflow 230 9 Specification 10 Index Acoustic coupling gel Outer Diameter Analogue current output Output Configuration Certificate of Conformity Output settings Commissioning Packaging Customer Return Note (CRN) Passes Datalogger Pipe material selection Diagnostic displays Pipe parameters Diagnostics Pipe preparation Diagonal mode...
  • Page 55 KATflow 230 Appendix A Appendix A Certificate of Conformity...
  • Page 56 KATflow 230 Appendix B Appendix B Customer Return Note (CRN) Company Address Name Tel. No. E-mail Instrument model Katronic contract no. (if known) Serial number Sensor type(s) Sensor serial number(s) The enclosed instrument has been used in the following environment (please √):...
