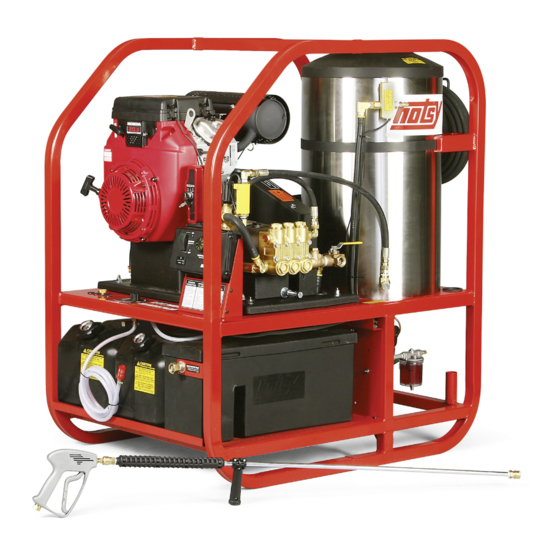

- Page 1 Hotsy 1200 Series Diesel Hot Water - Diesel Engine - Diesel Fired Pressure Washer Super Skid Operator Manual MODELS: 1265SSD 1.110-073.0 1265SSDS 1.110-074.0 For the Hotsy Dealer nearest you, consult our web page at www.hotsy.com 9.808-057.0-A 10/16/18...
-
Page 2: Machine Data Label
Machine Data Label Manual Operator HOTSY 1265SSD/S 9.808-057.0 - A... -
Page 3: Table Of Contents
Oil Change Record ......21 Troubleshooting ......22 Manual Operator HOTSY 1265SSD/S 9.808-057.0 - A... -
Page 4: How To Use This Manual
Sales Representative: NOTE: The manual part number is located on the lower right corner of the front cover. The model and serial number of your machine is located on the back of the machine. Manual Operator HOTSY 1265SSD/S 9.808-057.0 - A... -
Page 5: Safety
English, the manufacturer’s instructions and warnings shall be read to and discussed with the operator in the operator’s native language by the purchaser/owner, making sure that the operator comprehends its contents. Manual Operator HOTSY 1265SSD/S 9.808-057.0 - A... - Page 6 WARNING: Flammable liquids can create fumes which can ignite, causing property damage or severe injury. AVERTISSEMENT: Des liquides inflammables peuvent produire des vapeurs qui peuvent s'enflammer, causant ainsi des dommages à la propriété ou des blessures graves. Manual Operator HOTSY 1265SSD/S 9.808-057.0 - A...
- Page 7 HOT DISCHARGE FLUID: DO NOT TOUCH OR directement le jet vers des DIRECT DISCHARGE STEAM AT PERSONS personnes ou des animaux, car OR ANIMALS. cela risquerait de causer des blessures graves ou même la mort. Manual Operator HOTSY 1265SSD/S 9.808-057.0 - A...
- Page 8 16. Manufacturer will not be liable for any changes made to our standard machines or any compo- nents not purchased from us. 17. The best insurance against an accident is precau- tion and knowledge of the machine. Manual Operator HOTSY 1265SSD/S 9.808-057.0 - A...
-
Page 9: Operations
AVERTISSEMENT: Ne pas vaporiser sur la machine ou les gens, les animaux ou les pièces électriques. DO NOT SPRAY MACHINE OR ANY PEOPLE, ANIMALS OR ELECTRICAL PARTS. Follow the maintenance instructions specified in the manual. Manual Operator HOTSY 1265SSD/S 9.808-057.0 - A... -
Page 10: Component Identification
Wand — Must be connected to the spray gun. ture from exceeding high temperatures. Is not used to maintain constant temperature setting. Safety Relief Valve — Prevents over pressurization Flow Switch — Turns off burner when spray gun is closed. Manual Operator HOTSY 1265SSD/S 9.808-057.0 - A... - Page 11 Machine Dimensions Model # Stack Weight Weight 1265SSD 10” Kubota Z602 750 Lbs 840 Lbs L45” x W33” x H52” 1265SSDS 10” Kubota Z602 750 Lbs 840 Lbs L45” x W33” x H52” Manual Operator HOTSY 1265SSD/S 9.808-057.0 - A...
- Page 12 Inspect inlets. CAUTION: Do not run the pump without water or pump damage will result. ATTENTION: Ne pas faire fonctionner la pompe sans eau pour éviter d'endommager la pompe. Manual Operator HOTSY 1265SSD/S 9.808-057.0 - A...
-
Page 13: Operating Instructions
15° or red 0° safety latch on the spray gun nozzle. trigger.AVERTISSEMENT: Ne jamais remplacer les buses sans d'abord mettre le dispositif de sécurité sur la détente du pistolet pulvérisateur. Manual Operator HOTSY 1265SSD/S 9.808-057.0 - A... -
Page 14: Applying Detergents & General Cleaning Techniques
STEP 3: With the engine running, pull trigger to operate machine. Liquid detergent is drawn into the machine and mixed with water. Apply detergent to work area. Do not allow detergent to dry on surface. Manual Operator HOTSY 1265SSD/S 9.808-057.0 - A... - Page 15 Ammoniac ou produits à base d'acide Rinsing It will take a few seconds for the detergent to clear. Apply safety latch to spray gun. Open detergent valve. Select and install the desired high pressure nozzle. Manual Operator HOTSY 1265SSD/S 9.808-057.0 - A...
-
Page 16: Shutting Down And Clean-Up
STEP 4: Press trigger to release STEP 5: Disconnect the water pressure hose from pump water pressure. supply from the water inlet on the discharge fitting. machine. Safety Latch STEP 7: Engage the spray gun safety lock. Manual Operator HOTSY 1265SSD/S 9.808-057.0 - A... -
Page 17: Storage
4. Stop the engine, allow to cool enough to safely drain the engine oil as shown. Re-install the oil 3. Replace anti-freeze every 2 years. drain plug. 5. Refill the engine with standard recommended lubricating oil. Manual Operator HOTSY 1265SSD/S 9.808-057.0 - A... -
Page 18: Maintenance
Periodic flushing of coils or optional float tank is recom- void the manufacturer's warranty. mended. Step 1 Fill a container with 4 gallons of water, then add 1 lb. of deliming powder. Mix thoroughly. Pour mixture into float tank. Manual Operator HOTSY 1265SSD/S 9.808-057.0 - A... -
Page 19: Removal Of Soot From Heating Coil
This machine utilizes a fuel solenoid valve located on 1/4" ahead for 5.00 to 6.00G PH. the fuel pump to control the flow of fuel to the combustion chamber. The solenoid, which is normally Manual Operator HOTSY 1265SSD/S 9.808-057.0 - A... -
Page 20: Burner Nozzle
Air Band Locking Screw For additional burner component information, see Burner Assembly Exploded View page. It is recom- mended that the oil burner be serviced yearly or as needed. Contact your local service center. Manual Operator HOTSY 1265SSD/S 9.808-057.0 - A... -
Page 21: Preventative Maintenance
NOTE: Read Kubota engine manual for any maintenance or service questions. Oil Change Record PUMP OIL Estimated Operating ENGINE OIL Estimated Operating Date Changed Hours Since Last Oil Date Changed Hours Since Last Oil Month/Day/Year Change Month/Day/Year Change Manual Operator HOTSY 1265SSD/S 9.808-057.0 - A... -
Page 22: Troubleshooting
Little or no fuel pressure from fuel Increase fuel pressure to specification and/or pump replace fuel pump. Test with pressure gauge. Test transformer for proper arc between Faulty burner transformer contacts. Replace as needed. Manual Operator HOTSY 1265SSD/S 9.808-057.0 - A... - Page 23 Heavy accumulation of soot on coils Remove coils and burner assembly, clean and burner assembly thoroughly. Misaligned electrode setting Realign electrodes to specifications. Obstruction in smoke stack Check for insulation blockage or other foreign objects. Manual Operator HOTSY 1265SSD/S 9.808-057.0 - A...
- Page 24 Check and replace if necessary. WATER DRIPPING FROM UNDER PUMP Cracked piston Check and replace if necessary. Lower water supply pressure. Do not run with Pump protector spray gun closed longer than 2 minutes. Manual Operator HOTSY 1265SSD/S 9.808-057.0 - A...
- Page 25 BURNER MOTOR WILL Defective control switch Replace switch. NOT RUN Loose wire Check and replace or tighten wiring. Defective burner motor Replace motor. RELIEF VALVE LEAKS Relief valve defective Replace or repair. WATER Manual Operator HOTSY 1265SSD/S 9.808-057.0 - A...
- Page 26 If you need SERVICE on your pressure washer, contact your local Hotsy dealer or visit www.Hotsy.com. Smart phone users scan the code below to link directly to the Service Request page. To REGISTER your pressure washer, please visit our Warranty Registration page at www.hotsy.com/WarrantyRegistration.aspx or scan the code...
