FourStar 11226112 Assembly Instructions

MODEL: 11226112

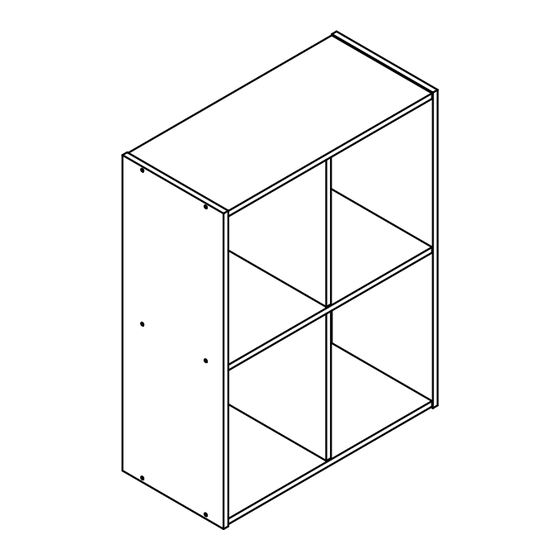

4 CUBE
ORGANIZER
STEP 1.
1.1 INSTALL DOWEL (2) INTO PANEL PRE-DRILLED HOLES ON PANEL (D).
1.2 ATTACH NAIL LEG (4) INTO PANEL (A) USING HAMMER AS SHOWN.
D
2
D
A
4
A
UNFINISHED
EDGE
STEP 4.
4.1 INSERT SCREW (1) INTO PRE-DRILLED HOLES ON PANEL (B)
TIGHTEN USING SCREWDRIVER, AS SHOWN.
B
D C
A
D
A
B
BEFORE YOU BEGIN, PLEASE READ THE ASSEMBLY INSTRUCTIONS CAREFULLY.
FOLLOW THEM STEP BY STEP.
CAUTION:
1. ADULT SUPERVISION IS REQUIRED DUE TO SMALL PARTS. HANDLE WITH CARE
WHEN UNPACKING AND ASSEMBLING THE PRODUCT.
2. ASSEMBLE ON A SOFT SURFACES TO PREVENT DAMAGE TO THE PRODUCT FINISH.
3. MAKE SURE ALL PARTS ARE INCLUDED BEFORE ASSEMBLY.
ASSEMBLY TOOLS REQUIRED
SCREWDRIVER HAMMER
Do you have any questions? Missing small parts or hardware? If you need assistance with the
assembly of your 4 CUBE ORGANIZER WITH 2 BINS please e-mail our Customer Service
support@fourstari.com or call us at (508) 473-7688,
Department at:
or visit www.fourstari.com
639-3803
Please include the following information when contacting us:
• Where item was purchased
• Item, model, style or SKU number listed on instructions or box
• Part number, description of the part and quantity needed
This information will help us get the proper part to you faster.
STEP 2
2.1 ATTACH PANEL (B)(D)(C) USING SHORT DOWEL (2) AND LONG DOWEL (3), AS SHOWN.
2.2 ATTACH PANEL (A) TO ASSEMBLED UNIT WITH SCREW (1) USING SCREWDRIVER.
FINISHED
EDGE
FINISHED
EDGE
FINISHED
EDGE
STEP 5.
5.1 ATTACH PANEL (E) TO ASSEMBLED UNIT.
5.2 TIGHTEN IT WITH POWER PIN (5) USING HAMMER, AS SHOWN.
UNFINISHED
SURFACE
1
PARTS LIST AND HARDWARE
NO HARDWARE LIST
1 SCREW
2 SHORT DOWEL
3 LONG DOWEL
4
NAIL LEG
5 POWER PIN
(800)
6 STICKER
FINISHED EDGE
A
B
D
C
A UNFINISHED SURFACE
3
1
5
E
A
B
QTY NO PARTS LIST QTY
12 PCS A SIDE PANEL 2 PC
TOP & BOTTOM
4 PCS B 2 PC
PANEL
2 PCS C 1 PC
CENTER PANEL
CENTER SIDE
D 2 PC
4 PCS
PANEL
22 PCS E BACK PANEL 1 PCS
12 PCS
STEP 3
3.1 ATTACH PANEL (D) TO ASSEMBLED UNIT AS SHOWN.
3.2 FOLLOWED BY PANEL (B).
1
B
D
A
STEP 6.
6.1 COVER THE SCREW WITH STICKER (6).
6.3 COMPLETE.
6
A
B
D
A
C
A
D
B
FINISHED
C
EDGE
A
D
B
B
D
C
A
D
