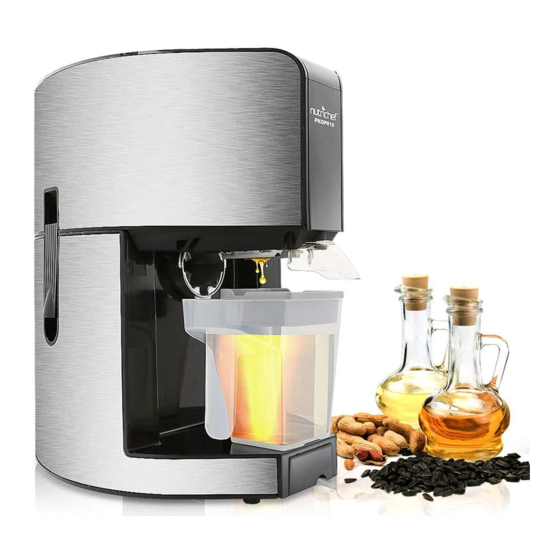

Summary of Contents for NUTRICHEF PKOPR15

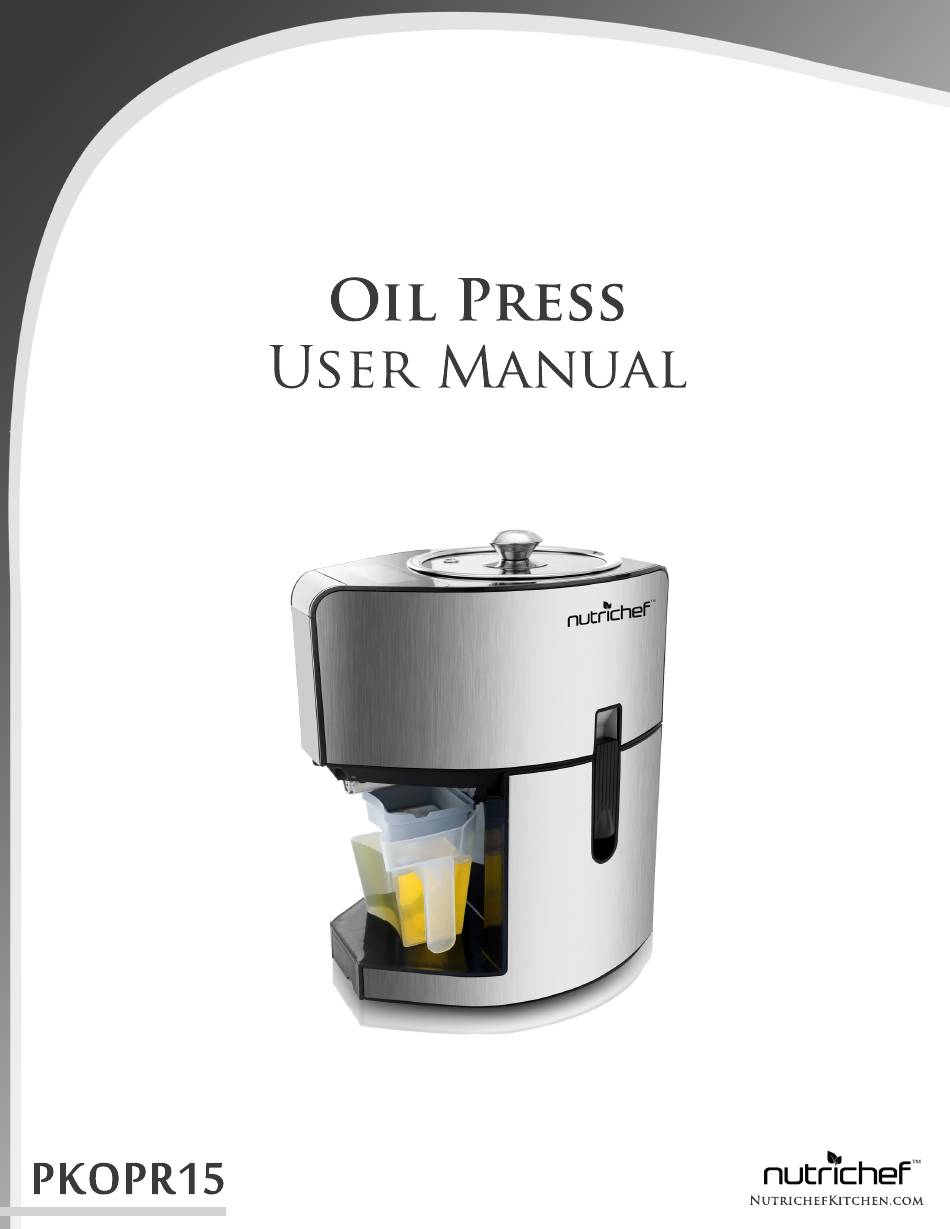

- Page 2 Don't connect this machine to a power source before you read this manual completely. Keep this manual for future reference. Picture is for reference only; there may be slight changes to the actual product. Continuous improvement made to the product is subject to change without being informed. PKOPR15...
-
Page 3: Safety Instructions
Safety Instructions Warning: Possible accidents could occur if you operate this machine without reading the instructions. Notice: If you operate this product with disregard to the instructions, your product, property, or yourself could be endangered. Please read the operation instruction of the manual in detail while using this machine, and keep this book for future reference. - Page 4 Product Scope This product is able to squeeze: peanuts, sesame seeds, vegetable seeds, tea seeds, soybeans (shell and grind to about 5mm before the extracting the oil), sunflower kernels and walnuts (shell and crumb to about 5mm before the extracting the oil). This product does not apply to grains or seeds where the oil content is low and cannot be shelled (such as corn).
- Page 5 manufacturer or the maintenance department. 15. While pulling out the plug, make sure to not pull the actual cord, but the plug itself. You are also prohibited from handling the plug or power cord with wet hands. 16. Before using the machine, please ensure that the oil press is placed on a firm, flat, table-top surface.
-
Page 6: Installation Instructions
Installation Instructions Silicon ring Check if the silicon ring is put on the hex head side of the screw 1. Put the lower main body on a smooth, flat table; insert the screw in the motor output bearing hole from the hex head side. 2. - Page 7 4. Put the protection cover onto the upper main body as shown in the above picture (arrow). 5. Attach the upper body to the lower body; fasten the screw to make both parts stable and firmly connected 6. Place the oil receiving container directly in front of the machine (underneath the nozzle) so as to catch the oil that is being extracted while the machine is in use.
- Page 8 Assembling the Waste Box Board B Board A Picture 1 Picture 2 1. Insert the two “Board B” pieces into the card slot on Board A from the bottom up, (Picture 1 and Picture 2) Picture 3 2. Insert the Board A card slots into the two Board B slots from top to bottom. (Picture 3) Picture 4 3.
- Page 9 Picture 6 5. Tighten the 4 buckles on Board A to Board B (Picture 6)
-
Page 10: Operating The Panel
Operating the Panel Black White Peanut Sesame Sesame Sunflower Rapeseed Flaxseed Seed Soybean Walnut Others W e ll M edi um M ild R a w D o n e In the process of the oil extraction, the LCD panel will flash and show the operation status and running time of the current stage. - Page 11 Method of Oil Extraction 1. Place the oil receiving cup and waste receiving box in the correct space. (Picture 7) Put the filter onto oil receiving cup Picture 7 2. Pour the oil plants/grains into the pan on the top of the machine and then cover it with the lid. Pay attention to the line indicating the Max Level;...
- Page 12 Heater, pan and glass cover is hot during and after the extraction of oil. Pay attention not to touch it while dismantling the upper shell, so as to prevent from scalding. (Picture 9) Heater Picture 9 During operation, please check whether the waste receiving box is full. You may replace this with a box with a bigger capacity if needed.
- Page 13 Reference Table Sunflower Oil plants Rapeseed Peanut Black sesame White sesame seed Oil extraction 35-48% 35-42% 40-48% 25-35% 40-50% rate Oil plants Soybean Flaxseed Tea seed Walnut Oil extraction 8-11% 25-34% 28-35% 40-68% rate Note: The production place, storing time, baking time and the like of oil plants will affect the oil extraction rate, so please select the highest quality oil plants for the extraction of oil when buying your plants/grains/nuts to obtain the best oil possible.
-
Page 14: Cleaning Method
Cleaning Method 1. Pull out the fasteners on both sides and remove the upper main body. 2. Twist the lock nut (Picture 11) in the counter-clockwise direction, and then pull them outward to take out the squeezing chamber components. 3. Hold the squeezing chamber with one hand, and pull the screw with the other hand, pulling them away from each other. -
Page 15: Electrical Schematic Diagram
Electrical Schematic Diagram Thermistor Stirring (Controlling Oil squeezing motor motor heating tape) Micro switch Brown Power Yellowgreen Control panel supply board Blue Thermosat Heating tape Heater on pan Troubleshooting Tips Problem Analysis Troubleshooting Method The display screen isn’t bright Check if the plug is Insert the plug into the enough while operating plugged in... - Page 16 then try again. Low oil yield The different production Choose good quality oil places, length plants. storing time and quality Prolong the baking time. of oil plant will affect the (Read "baking oil yield. method" steps carefully.) Baking time is too short The extraction is stopping in Do not extract oil from Cut the plants/grains/nuts...
