Summary of Contents for NUTRICHEF PKCWC120

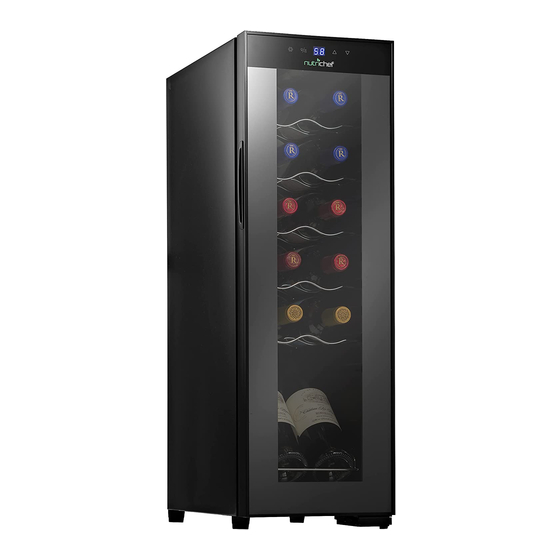

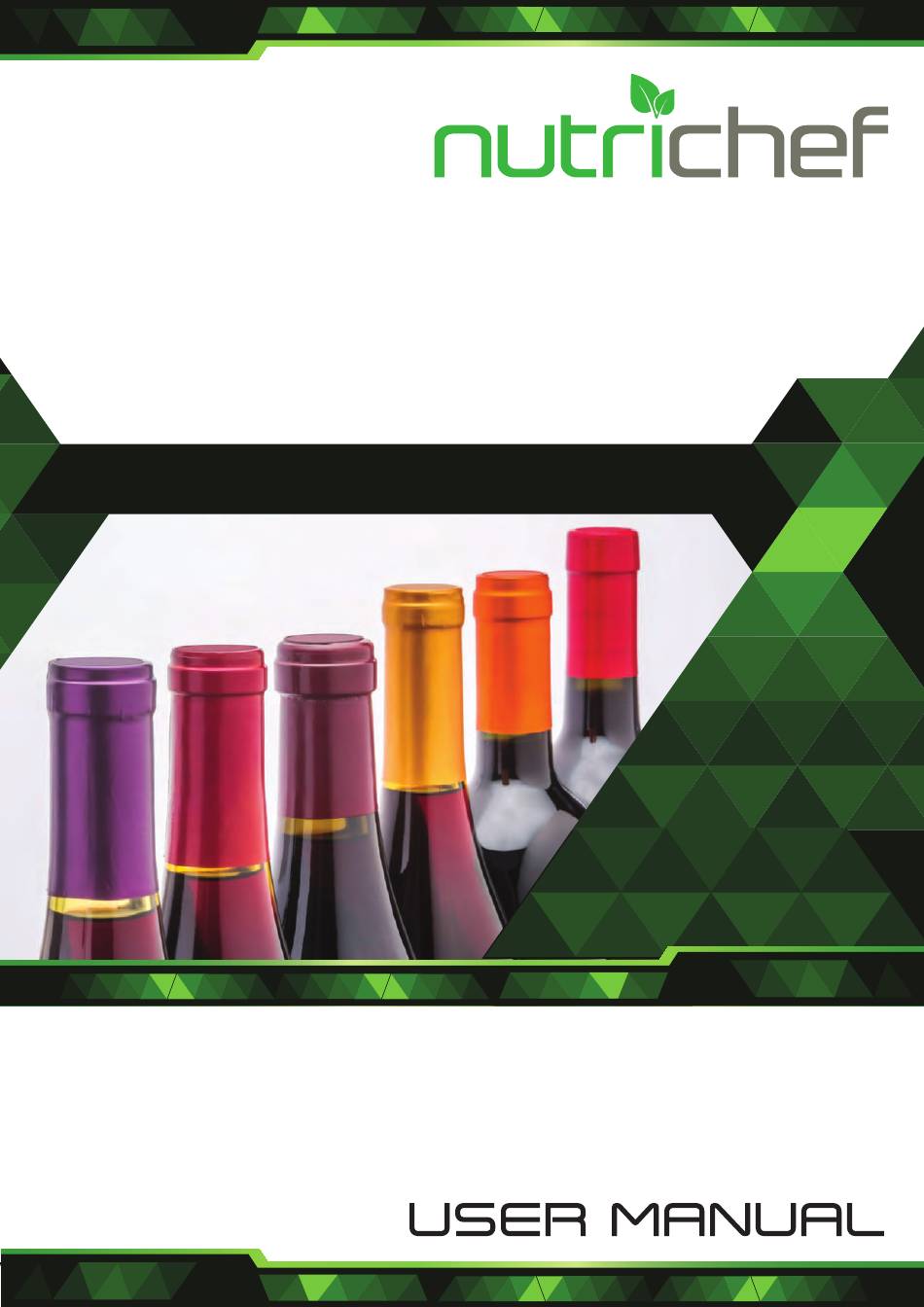

- Page 1 PKCWC Compressor Wine Cooler Wine Chilling Refrigerator...
- Page 2 CLASSIC GLASS DOOR SERIES STAINLESS STEEL DOOR SERIES PKCWC120 12 bottles PKCWC12 12 bottles PKCWC150 15 bottles PKCWC15 15 bottles CONTENTS I. IMPORTANT SAFETY INSTRUCTIONS ............................. 2 II. PARTS DIAGRAM ..................................3 INSTALLING THE STAINLESS STEEL HANDLE ........................4 III. TEMPERATURE CONTROL ............................... 5 IV.
- Page 3 II. PARTS DIAGRAM • Model No: PKCWC120 • Model No: PKCWC12 • Model No: PKCWC150 • Model No: PKCWC15 6. Upper Hinge 1. Cabinet 7. Door Gasket 2. Fan 8. Glass Door 3. Fan Cover 9. Stainless Steel Handle 4. Shelves 10.
- Page 4 INSTALLING THE STAINLESS STEEL HANDLE For PKCWC12, PKCWC15 Models only This wine cellar includes a stainless steel handle. To install the handle please follow the below instructions: 1. Pull away the door gasket in the area where the handle is to be installed on the left side as shown below in illustration #1.
- Page 5 5 - 18°C 41 - 64°F CONTROL PANEL ● For PKCWC12 / PKCWC120 / PKCWC15 / PKCWC150 Models only. ● You can select temperature display between Fahrenheit and Celsius setting by pressing this button ● You can turn the interior light ON or OFF by short pressing this button.
- Page 6 IV. ELECTRIC DIAGRAM (For PKCWC120, PKCWC150, PKCWC12, PKCWC15 only) V. INSTRUCTION Note: ● Position your wine cooler so that the plug is accessible ● Keep your wine cooler out of direct sunlight. ● Do not place next to heat generating appliance.
- Page 7 VIII. TROUBLE SHOOTING PROBLEM POSSIBLE CAUSES AND MAINTENANCE MEASURES ● The unit may be plugged in using a di erent voltage. Also, The wine cooler will not operate the circuit breaker may be tripped or there is a blown fuse. ●...
