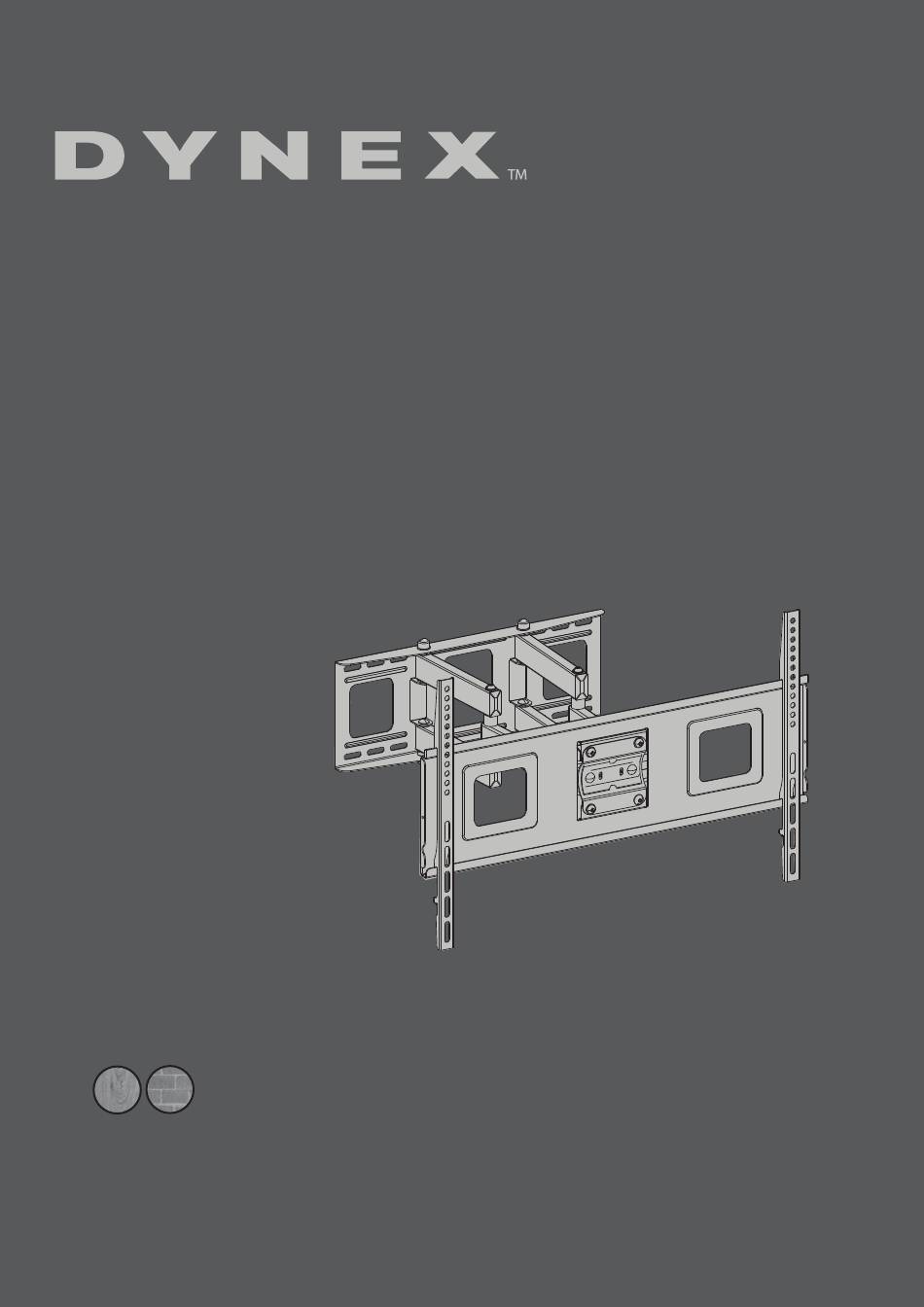

Full Motion Mount for TVs 47" - 70"
DX-HTVMM1703-C
For VESA patterns:
•
7.9 × 7.9" (200 × 200 mm)
•
11.8 × 7.9" (300 × 200 mm)
•
11.8 × 11.8" (300 × 300 mm)
•
15.7 × 7.9" (400 × 200 mm)
•
15.7 × 11.8" (400 × 300 mm)
•
15.7 × 15.7" (400 × 400 mm)
•
19.7 × 15.7" (500 × 400 mm)
•
23.6 × 15.7" (600 × 400 mm)
For wood-stud or
concrete wall
installations
USE R GU IDE
Before using your new product, please read these instructions to prevent any damage.
Advertisement
Table of Contents
Related Manuals for Dynex DX-HTVMM1703-C
Summary of Contents for Dynex DX-HTVMM1703-C
- Page 1 Full Motion Mount for TVs 47" - 70" DX-HTVMM1703-C For VESA patterns: • 7.9 × 7.9" (200 × 200 mm) • 11.8 × 7.9" (300 × 200 mm) • 11.8 × 11.8" (300 × 300 mm) • 15.7 × 7.9" (400 × 200 mm) •...
- Page 2 Safety information and specifications IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS CAUTION: Do not use this product for any purpose not explicitly specified by Dynex. Improper installation may cause property damage or personal injury. If you do not Maximum TV weight: 99 lbs. (45 kg) understand these directions, or have doubts about the safety of the installation, Screen size: 47 in.
-
Page 3: Tools Needed
DX-HTVMM1703-C Full Motion Mount for TVs 47" - 70" Tools needed You will need the following tools to assemble your new TV wall mount: Phillips screwdriver Pencil Edge-to-edge Measuring Drill stud finder tape Tape Hammer Socket 3/16 in. (5 mm) wood drill bit... - Page 4 DX-HTVMM1703-C Full Motion Mount for TVs 47" - 70" TV Hardware Bag Label Hardware Qty. Label Hardware Qty. M4 × 12 mm screw M4/M5 washer M4 × 30 mm screw M6/M8 washer M5 × 12 mm screw M5 × 30 mm screw Lag bolt M6 ×...
-
Page 5: Installation Instructions
DX-HTVMM1703-C Full Motion Mount for TVs 47" - 70" Installation instructions STEP 1 - Determine whether your TV has a flat back or an irregular or obstructed back 1 Carefully place your TV screen face-down on a cushioned, clean surface to protect the screen from damages and scratches. - Page 6 DX-HTVMM1703-C Full Motion Mount for TVs 47" - 70" STEP 2 - Select screws, washers, and spacers 1 Select the hardware for your TV (screws, washers, and spacers). A limited number of TVs come with mounting hardware included. (If there are screws that came with the TV, they are almost always in the holes on the back of the TV.) If you don't know the correct length of the mounting screws your TV...
- Page 7 DX-HTVMM1703-C Full Motion Mount for TVs 47" - 70" STEP 3 - Option 1: Attaching the mounting hardware to TVs with a flat back 1 Align the left and right TV brackets with the screw holes on the back of the TV. Make sure that the brackets are level.
- Page 8 DX-HTVMM1703-C Full Motion Mount for TVs 47" - 70" STEP 3 - Option 2: Attaching the mounting hardware to TVs with irregular or obstructed backs 1 Place spacers (A11) over the holes on the back of the TV. 2 Align the left and right TV brackets with the screw holes on the back of the TV. Make sure that the brackets are level.
- Page 9 DX-HTVMM1703-C Full Motion Mount for TVs 47" - 70" STEP 4 - Determine the wall-mount location Note: • For more detailed information on determining where to drill your holes, visit our online height-finder at: http://mf1.bestbuy.selectionassistant.com/index.php/heightfinder • Your TV should be high enough so your eyes are level with the middle of the screen. This is normally 40 to 60 in. from the ground.
- Page 10 DX-HTVMM1703-C Full Motion Mount for TVs 47" - 70" STEP 5 - Option 1: Installing on a wood stud* wall Note: Any drywall covering the wall must not exceed 5/8 in. (16 mm). 1 Locate the stud. Verify the center of the stud with an edge-to-edge stud finder.
- Page 11 DX-HTVMM1703-C Full Motion Mount for TVs 47" - 70" STEP 5 - Option 2: Installing on a solid concrete or concrete block wall CAUTION: To prevent property damage or personal injury, never drill into the mortar between blocks. Mount the wall plate directly onto the concrete surface.
- Page 12 DX-HTVMM1703-C Full Motion Mount for TVs 47" - 70" STEP 6 - Secure the TV to the wall plate 1 Holding the TV with the top of the screen tilted toward the wall, slide the upper edges of the right and left TV brackets into the notches on the upper lip of the TV wall plate.
- Page 13 DX-HTVMM1703-C Full Motion Mount for TVs 47" - 70" STEP 7 - Manage cables • Thread cables for attached devices along the mounting arm, then snap the popper buttons over the cables to hold them in place. Popper button Cables...
- Page 14 DX-HTVMM1703-C Full Motion Mount for TVs 47" - 70" STEP 8 - Adjust the mount arm and tilt anlges 1 To adjust the arms’ tension (to make the arm easier or harder to move), loosen or tighten the tension screws with an Allen wrench.
- Page 15 During the Warranty Period, if the original manufacture of the material or workmanship of the Product is determined to be defective by an authorized Dynex repair center or store personnel, Dynex will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts.
- Page 16 1-800-305-2204 www.dynexproducts.com DYNEX is a trademark of Best Buy and its affiliated companies Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A. ©2016 Best Buy. All rights reserved Made in China V2 ENGLISH 16-0713...
