Dynex DX-WD1335 Assembly Instructions Manual

Wood tv stand
Hide thumbs Also See for DX-WD1335:

Advertisement

Quick Links

Download this manual See also: Manual

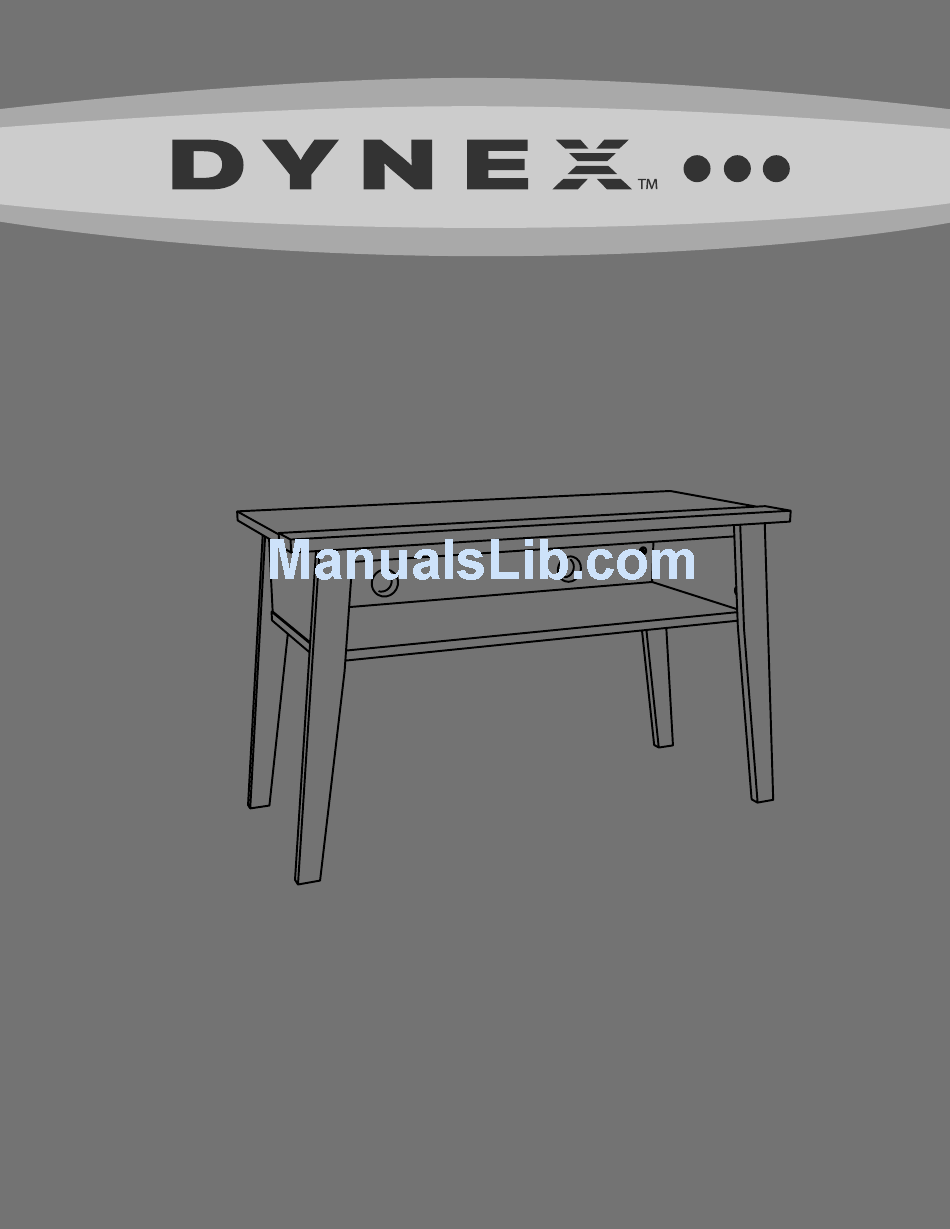

ASSEMBLY INSTRUC TIONS
DX-WD1335
Wood TV Stand
Tools needed........................................... 2
Parts ........................................................... 3
Hardware.................................................. 4
Assembly instructions ......................... 5

Advertisement

loading

Related Manuals for Dynex DX-WD1335

Summary of Contents for Dynex DX-WD1335

  • Page 1 ASSEMBLY INSTRUC TIONS DX-WD1335 Wood TV Stand Tools needed........... 2 Parts ............3 Hardware..........4 Assembly instructions ......5...

  • Page 2: Safety Information And Specifications

    Top shelf (W × D): 35.25 × 12.75 in. (89.54 × 32.39 cm) in instability, which may cause possible injury. Usable lower shelf (W × H × D): Model #: DX-WD1335 30.25 × 5.5 × 12.75 in. (76.84 × 13.97 × 32.39 cm) Distributed by Best Buy Purchasing, LLC Tools needed No.

  • Page 3: Package Contents: Parts

    DX-WD1335 Parts Package contents: parts Note: Some parts have a label on the edge to help distinguish similar parts from each other. Use this illustration to help identify similar parts. Item Description Qty. Item Description Qty. Right end Right front leg...

  • Page 4: Package Contents: Hardware

    DX-WD1335 Hardware Package contents: hardware Make sure that you have all the hardware necessary to assemble your new TV stand: Label Hardware Qty. Label Hardware Qty. Cam cover Twist-lock® fastener Hidden cam Glue Cam dowel Warning label Cam screw Angle bracket Black 1-7/8"...
  • Page 5 DX-WD1335 Assembly instructions Step 1: Caution: Assemble your TV stand on carpeted floor or on the empty carton to avoid scratching your stand or the floor. Push a Twist-lock® fastener (K) into each of the two the holes in the back (E).
  • Page 6 DX-WD1335 Step 2: Push 13 hidden cams (L) into the ends (A and B), top (C), and back (E). Make sure that the arrows on the hidden cams (L) are pointing toward the closest edge. Insert the metal end of a cam dowel (M) into each hidden cam, except in the top (C) and short edge of each end (A and B).
  • Page 7 DX-WD1335 Step 3: Screw seven cam screws (N) into the front legs (F and G) and stop molding (J). You’ll need: N (7) Need help? Call 800-305-2204...
  • Page 8 DX-WD1335 Tightening hidden cams: In the remaining steps, use these illustrations for instructions on tightening hidden cams. Warning: Risk of damage or injury. Hidden cams must be completely tightened. Hidden cams that are not completely tightened will loosen, and parts may separate.
  • Page 9 DX-WD1335 Step 4: Align the stop molding (J) with the top (C), then tighten the three hidden cams. You’ll need: Phillips screwdriver Need help? Call 800-305-2204...
  • Page 10 DX-WD1335 Step 5: Align the ends (A and B) with the back (E), then tighten the two hidden cams. Edges with hidden cams Edge with Twist-lock® fasteners Edges with hidden cams You’ll need: Phillips screwdriver Need help? Call 800-305-2204...
  • Page 11 DX-WD1335 Step 6: Caution: Check the parts carefully before assembling. Disassembly of glued parts is extremely difficult. Fill the holes in the stop molding (J) 1/4 to 1/2 full with glue (R), then insert the wood dowels (P) into the holes.
  • Page 12 DX-WD1335 Step 7: Attach two angle brackets (O) to the stop molding (J) using two black 9/16" large head screws (U). Fasten the skirt (I) to the stop molding (J) using two black 9/16" large head screws (U). Note: There are no pre-drilled holes in the skirt. The screws tighten into the groove.
  • Page 13 DX-WD1335 Step 8: Align right front leg (F) with the right end (A) and the left front leg (G) with the left end (B), then tighten the four hidden cams (L). Attach the rear legs (H) to the ends (A and B) using four black 1-7/8" flat head screws (T).
  • Page 14 DX-WD1335 Step 9: Fasten the lower shelf (D) to the ends (A and B) and back (E) using seven black 1-7/8" flat head screws (T). Long finished edge You’ll need: T (7) Phillips screwdriver Need help? Call 800-305-2204...
  • Page 15 DX-WD1335 Step 10: Carefully turn your TV stand upright. Apply the warning label (S) to the top (C) so that the TV will hide the label. Peel off the backing and apply the label as shown in the diagram. Note: This is a permanent label intended to last for the life of the product. After you apply the label, do not try to remove it.
  • Page 16 7601 Penn Ave. South, Richfield, MN 55423 U.S.A. © 2012 BBY Solutions, Inc. All rights reserved. DYNEX is a trademark of BBY Solutions, Inc. Registered in some countries. All other products and brand names are trademarks of their respective owners. 12-0625...
