 Outer Dimensions, Mass and Lifting Position
Product mass (kg)
L (mm)
Product mass (kg)
L (mm)

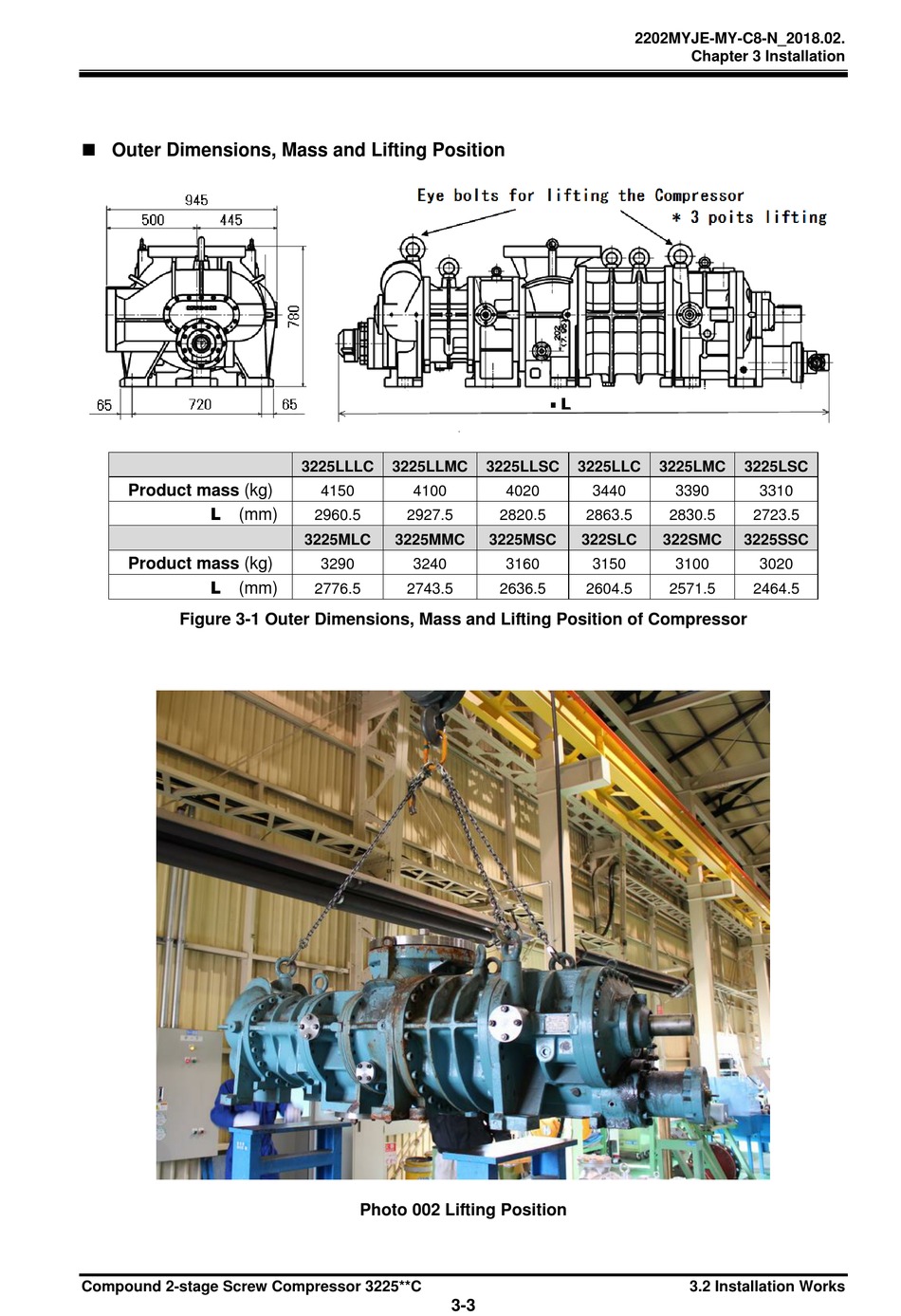

Figure 3-1 Outer Dimensions, Mass and Lifting Position of Compressor
Compound 2-stage Screw Compressor 3225**C
3225LLLC 3225LLMC
4150 4100
2960.5 2927.5
3225MLC 3225MMC
3290 3240
2776.5 2743.5
Photo 002 Lifting Position
3-3
2202MYJE-MY-C8-N_2018.02.
3225LLSC 3225LLC
4020 3440
2820.5 2863.5
3225MSC 322SLC
3160 3150
2636.5 2604.5
Chapter 3 Installation
3225LMC 3225LSC
3390 3310
2830.5 2723.5
322SMC 3225SSC
3100 3020
2571.5 2464.5
3.2 Installation Works
