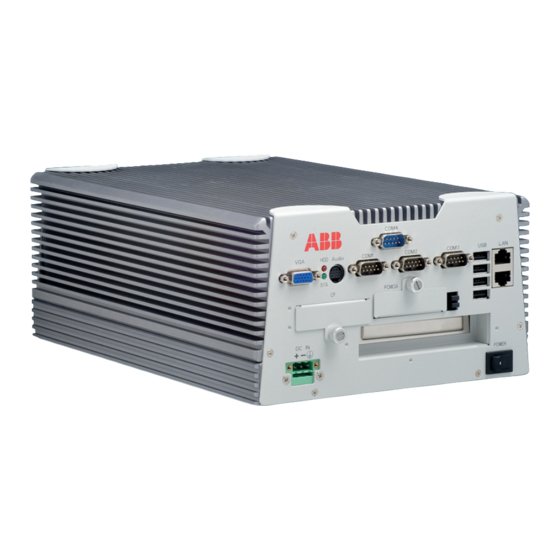

Station Automation COM600 3.4
IEC 60870-5-101 Slave (OPC) User's Manual

Advertisement

Table of Contents
loading

Subscribe to Our Youtube Channel

Summary of Contents for ABB COM600 3.4

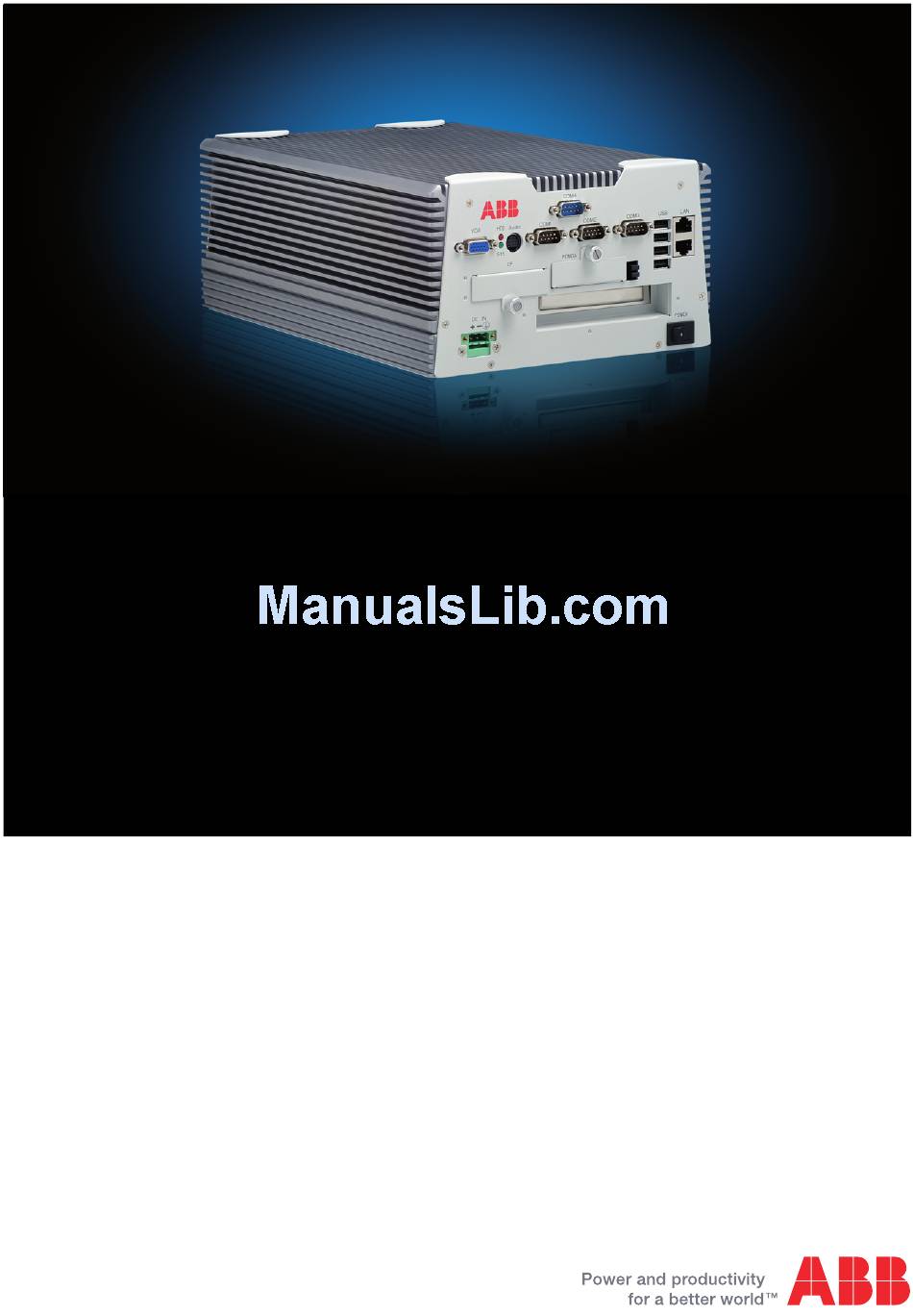

  • Page 1 Station Automation COM600 3.4 IEC 60870-5-101 Slave (OPC) User's Manual...
  • Page 3 1MRS755382 Station Automation COM600 3.4 Issued: 30.6.2004 IEC 60870-5-101 Slave (OPC) User's Manual Version: G/06.11.2009 Contents: About this manual .................. 7 1.1. Copyrights ..................7 1.2. Trademarks ..................7 1.3. General ..................7 1.4. Document conventions ..............8 1.5. Use of symbols ................9 1.6.
  • Page 4 Station Automation COM600 3.4 1MRS755382 IEC 60870-5-101 Slave (OPC) User's Manual 3.4.5.6. Directional protection activation information (ACD) ............37 3.4.5.7. Binary counter reading (BCR) ....38 3.4.5.8. Measured value (MV) ......... 39 3.4.5.9. Complex measured value (CMV) ....41 3.4.5.10.
  • Page 5 1MRS755382 Station Automation COM600 3.4 IEC 60870-5-101 Slave (OPC) User's Manual 5.3.3. Application layer status codes ........64 5.4. Attributes ..................65 5.4.1. General about attributes ..........65 5.4.2. Client attributes ............. 65 5.4.3. Channel attributes ............65 5.4.4. Device attributes ............66 Appendix 1 ....................
  • Page 7: About This Manual

    In no event shall ABB Oy be liable for direct, indirect, special, incidental, or consequential damages of any nature or kind arising from the use of this document, nor shall ABB Oy be liable for incidental or consequential damages arising from use of any software or hardware described in this document.
  • Page 8: Document Conventions

    Station Automation COM600 3.4 1MRS755382 IEC 60870-5-101 Slave (OPC) User's Manual Introduction This section gives an overview of the IEC101 Slave OPC Client and states the system requirements to be met when using the client. Configuration In this section you find an overview of the configuration tasks and instructions on how to create and configure IEC101 Slave OPC Client related objects.
  • Page 9: Use Of Symbols

    1MRS755382 Station Automation COM600 3.4 IEC 60870-5-101 Slave (OPC) User's Manual Entered value is not valid. The value must be 0 - 30 • You can be asked to enter the string MIF349 in a field. The string is shown as follows...
  • Page 10: Terminology

    Terminology The following is a list of terms associated with COM600 that you should be familiar with. The list contains terms that are unique to ABB or have a usage or definition that is different from standard industry usage. Term...
  • Page 11: Abbreviations

    LON Application Guideline for substation automation Local Area Network Logical Device LonMark interoperable device communicating in LonWorks network. In this document, the term is used for devices that do not support the ABB LON/LAG communication. Logical Node LON SPA Gateway...
  • Page 12: Related Documents

    Station Automation COM600 3.4 1MRS755382 IEC 60870-5-101 Slave (OPC) User's Manual Abbreviation Description Request To Send Substation Automation SAB600 Station Automation Builder 600 Substation Configuration Language Single Line Diagram SNTP Simple Network Time Protocol SOAP Simple Object Access Protocol Report Control Block...
  • Page 13: Introduction

    1MRS755382 Station Automation COM600 3.4 IEC 60870-5-101 Slave (OPC) User's Manual Introduction 2.1. Functional overview The IEC 60870-5-101 protocol slave interface of COM600 enables master systems communicating with 60870-5-101 protocol to receive data from and deliver commands to P&C devices connected to the GW. The IEC101 slave is implemented as an OPC client, which transfers and converts data between the IEC 60870-5-101 slave protocol interface and the OPC servers of COM600.
  • Page 14: Configuration

    Station Automation COM600 3.4 1MRS755382 IEC 60870-5-101 Slave (OPC) User's Manual Configuration 3.1. About this section This section guides you in the configuration tasks required before you can start using the IEC101 Slave OPC Client. For information on the IEC 61850 data modeling, refer to COM600 User's Manual.
  • Page 15 1MRS755382 Station Automation COM600 3.4 IEC 60870-5-101 Slave (OPC) User's Manual IEC101_configuration_overview.bmp Figure 3.2-1 Example view of SAB600 The configuration work can basically be divided into two separate tasks: 1. building an object tree, and 2. configuring object properties. First, you need to build an object tree. This is done by adding objects to the object tree, see 3.3.1, General about building object tree and 3.3.5, Adding data objects using Cross-...
  • Page 16: Building Object Tree

    Station Automation COM600 3.4 1MRS755382 IEC 60870-5-101 Slave (OPC) User's Manual Table 3.2-1 IEC101 OPC Client related objects Object Description IEC101 OPC Client An object representing the IEC101 OPC Client. IEC101 Balanced Channel An object representing the IEC101 channel using bal- anced communication mode (point to point connection).
  • Page 17: Adding Iec101 Slave Opc Client

    1MRS755382 Station Automation COM600 3.4 IEC 60870-5-101 Slave (OPC) User's Manual 3.3.2. Adding IEC101 Slave OPC Client To add the OPC client object: 1. Add the IEC101 Slave OPC Client object in the Communication structure by selecting the Gateway object.
  • Page 18: File Transfer Function

    Station Automation COM600 3.4 1MRS755382 IEC 60870-5-101 Slave (OPC) User's Manual Note that you can also select an upper level (server, channel, etc.) object and drag and drop it into the Cross-References function. As a result, all the data objects within the selected object appear now in the Cross-References function and can be connected to IEC101 Slave OPC Client.
  • Page 19: Transparent Spa Function

    1MRS755382 Station Automation COM600 3.4 IEC 60870-5-101 Slave (OPC) User's Manual • File Transfer Enabled: Specifies whether the file transfer function is enabled • File Transfer Source Directory: Defines the source directory for the disturbance recording files. Default is C:\COMTRADE File names in IEC101 file transfer are built from two numbers;...
  • Page 20: Configuring Iec101 Slave Opc Client Properties

    Station Automation COM600 3.4 1MRS755382 IEC 60870-5-101 Slave (OPC) User's Manual ObjPropIED101.jpg Figure 3.4.1-1 Example of object properties in the Objects Properties window 2. Select the property you want to configure. Depending on the property value type, configuring is always done either by •...
  • Page 21: Configuring Channel Properties

    1MRS755382 Station Automation COM600 3.4 IEC 60870-5-101 Slave (OPC) User's Manual Table 3.4.2-1 IEC101 Slave OPC Client properties Property / Para- Value or Value range/ Default Description meter Basic Maximum OPC 0...65535 Specifies the maximum time in seconds Server Initialization...
  • Page 22 Station Automation COM600 3.4 1MRS755382 IEC 60870-5-101 Slave (OPC) User's Manual Table 3.4.3.1-1 IEC101 Balanced Channel properties Property / Para- Value or Value range/ Default Description meter Basic In Use In use Specifies whether the channel is initially in use or not.
  • Page 23 1MRS755382 Station Automation COM600 3.4 IEC 60870-5-101 Slave (OPC) User's Manual Property / Para- Value or Value range/ Default Description meter Receiver Data Bit 5...8 Specifies the number of data bits in each Count received character. Default: 8 Stop Bits...
  • Page 24: Configuring Iec101 Unbalanced Channel Properties

    Station Automation COM600 3.4 1MRS755382 IEC 60870-5-101 Slave (OPC) User's Manual Property / Para- Value or Value range/ Default Description meter Operating Mode Handshaking messages not Specifies whether the handshaking mes- restarted sages (request, status of link, reset of remote link) are restarted when a ‘request Handshaking messages status of link’...
  • Page 25 1MRS755382 Station Automation COM600 3.4 IEC 60870-5-101 Slave (OPC) User's Manual Property / Para- Value or Value range/ Default Description meter Baud Rate 300 bits/s Transmission rate used on the channel. 600 bits/s 1200 bits/s 2400 bits/s 4800 bits/s 9600 bits/s...
  • Page 26 Station Automation COM600 3.4 1MRS755382 IEC 60870-5-101 Slave (OPC) User's Manual Property / Para- Value or Value range/ Default Description meter Carrier Blocking Carrier detect signal is ignored Determines whether the Carrier Detect signal of the serial port must be set for the Carrier detect signal must be IEC station to receive messages.
  • Page 27: Configuring Device Properties

    1MRS755382 Station Automation COM600 3.4 IEC 60870-5-101 Slave (OPC) User's Manual Property / Para- Value or Value range/ Default Description meter RTS Keepup Pad- 0...255 The number of padding characters inser- ding Characters ted to the end of telegram to delay the Default: 0 resetting of RTS signal.
  • Page 28 Station Automation COM600 3.4 1MRS755382 IEC 60870-5-101 Slave (OPC) User's Manual Name Value/Value range Description Polling Address 0...255 or The link address of the IEC 60870-5-101 slave station 0...65535 Default: 1 The maximum value depends on the corresponding Polling Address Length property value...
  • Page 29 1MRS755382 Station Automation COM600 3.4 IEC 60870-5-101 Slave (OPC) User's Manual Name Value/Value range Description Command Address 0...65535 The object address of the bit- stream process object in the Default: 32000 OPC Client, where an unrecog- nized message is handled.
  • Page 30 Station Automation COM600 3.4 1MRS755382 IEC 60870-5-101 Slave (OPC) User's Manual Name Value/Value range Description Station Address Length 1...2 The length of the station address in octets. Default: 2 Station address maximum value: 0...255 when length = 1 and 65535 when length = 2.
  • Page 31: Configuring Data Objects

    1MRS755382 Station Automation COM600 3.4 IEC 60870-5-101 Slave (OPC) User's Manual Name Value/Value range Description Device Connection Status Default: Device Connection Device Connection Status Status Class definition used with cur- rent device. Event Queue Full EventQueueOverflow Defines current state of event buffers.
  • Page 32: Single Point Status (Sps)

    Station Automation COM600 3.4 1MRS755382 IEC 60870-5-101 Slave (OPC) User's Manual are correctly handled and then click Apply to update the IEC101 configuration accord- ingly. IEC101 Slave OPC Client supports data objects for status, measurements, controllable status, and controllable analog information. The following subsections list the configurable data object properties for the IEC101 Slave OPC Client.
  • Page 33: Double Point Status (Dps)

    1MRS755382 Station Automation COM600 3.4 IEC 60870-5-101 Slave (OPC) User's Manual Property/ Para- Value or Value range/ Default Description meter Data Class Spe- cific Send as Double True = 1 Specifies if a value of indication signal is Point sent as double point value.
  • Page 34: Integer Status (Ins)

    Station Automation COM600 3.4 1MRS755382 IEC 60870-5-101 Slave (OPC) User's Manual Property/ Para- Value or Value range/ Default Description meter Over Write 1 = True Defines whether a new indication value overwrites an older one in the queue. 0 = False...
  • Page 35 1MRS755382 Station Automation COM600 3.4 IEC 60870-5-101 Slave (OPC) User's Manual Property/ Para- Value or Value range/ Default Description meter Common Data Common data class according to IEC Class 61850. Addresses Indication Address 0...16777215 IEC address for indication. Default: 0...
  • Page 36: Protection Activation Information (Act)

    Station Automation COM600 3.4 1MRS755382 IEC 60870-5-101 Slave (OPC) User's Manual 3.4.5.5. Protection activation information (ACT) Table 3.4.5.5-1 Configurable ACT properties for OPC client Property/ Para- Value or Value range/ Default Description meter Basic Common Data Common data class according to IEC Class 61850.
  • Page 37 1MRS755382 Station Automation COM600 3.4 IEC 60870-5-101 Slave (OPC) User's Manual Property/ Para- Value or Value range/ Default Description meter Send as Double True = 1 Specifies if the value of indication signal Point is sent as double point. False = 0...
  • Page 38: Binary Counter Reading (Bcr)

    Station Automation COM600 3.4 1MRS755382 IEC 60870-5-101 Slave (OPC) User's Manual Property/ Para- Value or Value range/ Default Description meter Over Write True = 1 Defines whether a new indication value overwrites an older one in the queue. False = 0...
  • Page 39: Measured Value (Mv)

    1MRS755382 Station Automation COM600 3.4 IEC 60870-5-101 Slave (OPC) User's Manual Property/ Para- Value or Value range/ Default Description meter Class Class 1 = 1 Class of ASDU. Data sent from the slave to the master can be assigned to two Class 2 = 2 classes: class 1 and class 2.
  • Page 40 Station Automation COM600 3.4 1MRS755382 IEC 60870-5-101 Slave (OPC) User's Manual Property/ Para- Value or Value range/ Default Description meter Indication Address 0...16777215 IEC Address for indication. Default:0 Common Class Class 1 = 1 Class of ASDU. Data sent from the slave...
  • Page 41: Complex Measured Value (Cmv)

    1MRS755382 Station Automation COM600 3.4 IEC 60870-5-101 Slave (OPC) User's Manual 3.4.5.9. Complex measured value (CMV) Table 3.4.5.9-1 Configurable CMV properties for OPC client Property/ Para- Value or Value range/ Default Description meter Basic Common Data Common data class according to IEC Class 61850.
  • Page 42 Station Automation COM600 3.4 1MRS755382 IEC 60870-5-101 Slave (OPC) User's Manual Property/ Para- Value or Value range/ Default Description meter Time Tag Handling Do not Send Time Tag = 0 Specifies the format of timestamp if one is used: none, short, or long. Long time...
  • Page 43: Delta (Del)

    1MRS755382 Station Automation COM600 3.4 IEC 60870-5-101 Slave (OPC) User's Manual Property/ Para- Value or Value range/ Default Description meter Interrogation Group 1...16 (general) or 1...4 (coun- Interrogation group. 1 - 16 general or 1 - ters) 4 counter interrogation.
  • Page 44 Station Automation COM600 3.4 1MRS755382 IEC 60870-5-101 Slave (OPC) User's Manual Property/ Para- Value or Value range/ Default Description meter Phase AB Address 0...16777215 IEC address for phase AB. 0 = Not in use Phase BC Address 0...16777215 IEC address for phase BC.
  • Page 45: Controllable Single Point (Spc)

    1MRS755382 Station Automation COM600 3.4 IEC 60870-5-101 Slave (OPC) User's Manual Property/ Para- Value or Value range/ Default Description meter Time Tag Handling Do not Send Time Tag = 0 Specifies the format of timestamp if one is used: none, short, or long. Long time...
  • Page 46: Controllable Double Point (Dpc)

    Station Automation COM600 3.4 1MRS755382 IEC 60870-5-101 Slave (OPC) User's Manual Property/ Para- Value or Value range/ Default Description meter Priority 0...3 Priority of ASDU. This property defines how the ASDU sent is placed in the class End of queue = 0 1 and class 2 queues.
  • Page 47 1MRS755382 Station Automation COM600 3.4 IEC 60870-5-101 Slave (OPC) User's Manual Property/ Para- Value or Value range/ Default Description meter Common Class Class 1 = 1 Class of ASDU. Data sent from the slave to the master can be assigned to two Class 2 = 2 classes: class 1 and class 2.
  • Page 48: Controllable Integer Status (Inc)

    Station Automation COM600 3.4 1MRS755382 IEC 60870-5-101 Slave (OPC) User's Manual 3.4.5.14. Controllable integer status (INC) Table 3.4.5.14-1 Configurable INC properties for OPC client Property/ Para- Value or Value range/ Default Description meter Basic Common Data Common data class according to IEC...
  • Page 49 1MRS755382 Station Automation COM600 3.4 IEC 60870-5-101 Slave (OPC) User's Manual Property/ Para- Value or Value range/ Default Description meter Time Tag Handling Do not Send Time Tag = 0 Specifies the format of timestamp if one is used: none, short, or long. Long time...
  • Page 50 Station Automation COM600 3.4 1MRS755382 IEC 60870-5-101 Slave (OPC) User's Manual Property/ Para- Value or Value range/ Default Description meter Update Rate 0...60000 Maximum update rate of indication changes between OPC server and client Default: 0 in milliseconds. 0 means that server sends all the changes to the client.
  • Page 51: Analogue Set Point (Apc)

    1MRS755382 Station Automation COM600 3.4 IEC 60870-5-101 Slave (OPC) User's Manual Property/ Para- Value or Value range/ Default Description meter Over Write True = 1 Defines whether a new indication value overwrites an older one in the queue. False = 0...
  • Page 52: Operation

    Station Automation COM600 3.4 1MRS755382 IEC 60870-5-101 Slave (OPC) User's Manual Operation 4.1. About this section This section describes the basic operation procedures you can carry out after the object properties for the IEC101 Slave OPC Client have been configured.
  • Page 53: Iec101 Channel Diagnostics

    1MRS755382 Station Automation COM600 3.4 IEC 60870-5-101 Slave (OPC) User's Manual Event_Log101.jpg Figure 4.3-2 Event log file 4.4. IEC101 Channel diagnostics The IEC101Channel activity can be monitored with the Online diagnostics function. You can also take a channel into use or out of use as described in this section.
  • Page 54: Iec101 Device Diagnostics

    Station Automation COM600 3.4 1MRS755382 IEC 60870-5-101 Slave (OPC) User's Manual You can take an IEC101Channel into use by marking the In use check box. If you unmark the check box, the channel is taken out of use. To manually update diagnostic counters, click Refresh.
  • Page 55 1MRS755382 Station Automation COM600 3.4 IEC 60870-5-101 Slave (OPC) User's Manual IEC101_Diagnostic_AE_Client.jpg Figure 4.6-1 IEC101 Slave OPC Client Diagnostic AE client Detailed information about field values (ASDU types, qualifier values and so on) can be found in the IEC 60870-5-101 standard documentation.
  • Page 56: Technical Reference

    Station Automation COM600 3.4 1MRS755382 IEC 60870-5-101 Slave (OPC) User's Manual Technical reference 5.1. About this section This section provides reference information about the following issues: • IEC 61850 data modeling • Attributes • Status codes 5.2. IEC 61850 data modeling 5.2.1.
  • Page 57: Double Point Status (Dps)

    1MRS755382 Station Automation COM600 3.4 IEC 60870-5-101 Slave (OPC) User's Manual 5.2.3. Double point status (DPS) DPS represents DMCD M_DP_NA_1, M_DP_TA_1, M_DP_TB_1. Name Type Value/ Value Mandat- Protocol informa- OPC data types range ory/Optional tion element stVal ENUMERATED Intermediate-state VT_I4...
  • Page 58: Directional Protection Activation Information (Acd)

    Station Automation COM600 3.4 1MRS755382 IEC 60870-5-101 Slave (OPC) User's Manual Name Type Value/ Value Mandat- Protocol informa- OPC data types range ory/Optional tion element Quality EI, BL, SB, NT, IV 5.2.6. Directional protection activation information (ACD) ACD represents M_SP_NA_1, M_SP_TA_1, M_SP_TB_1, M_DP_NA_1, M_DP_TA_1, M_DP_TB_1.
  • Page 59: Binary Counter Reading (Bcr)

    1MRS755382 Station Automation COM600 3.4 IEC 60870-5-101 Slave (OPC) User's Manual 5.2.7. Binary counter reading (BCR) BCR represent DMCD M_IT_NA_1, M_IT_TA_1, M_IT_TB_1. Name Type Value/ Value Mandat- Protocol informa- OPC data types range ory/Optional tion element actVal INTEGER VT_I4 Quality...
  • Page 60: Delta (Del)

    Station Automation COM600 3.4 1MRS755382 IEC 60870-5-101 Slave (OPC) User's Manual 5.2.10. WYE represent DMCD M_ME_NA_1, M_ME_TA_1, M_ME_TD_1, M_ME_NB_1, M_ME_TB_1, M_ME_NC_1, M_ME_TC_1, M_ME_TF_1. Name Type Value/ Value Mandat- Protocol informa- OPC data types range ory/Optional tion element phsA.cVal.mag AnalogueValue SVA, NVA VT_R4 phsA.q...
  • Page 61: Controllable Single Point (Spc)

    1MRS755382 Station Automation COM600 3.4 IEC 60870-5-101 Slave (OPC) User's Manual 5.2.12. Controllable single point (SPC) SPC represents DMCD C_SC_NA_1, C_DC_NA_1, M_SP_NA_1, M_SP_TA_1, M_SP_TB_1, M_DP_NA_1, M_DP_TA_1, M_DP_TB_1. Name Type Value/ Value Mandat- Protocol informa- OPC data types range ory/Optional tion element...
  • Page 62: Controllable Integer Status (Inc)

    Station Automation COM600 3.4 1MRS755382 IEC 60870-5-101 Slave (OPC) User's Manual 5.2.14. Controllable integer status (INC) INC represents DMCD M_ME_NA_1, M_ME_TA_1, M_ME_TD_1, M_ME_NB_1, M_ME_TB_1, C_SE_NA, C_SE_NB_1. Name Type Value/ Value Mandat- Protocol informa- OPC data types range ory/Optional tion element...
  • Page 63: Analogue Set Point (Apc)

    1MRS755382 Station Automation COM600 3.4 IEC 60870-5-101 Slave (OPC) User's Manual 5.2.17. Analogue set point (APC) APC represents DMCD C_SE_NC_1. Name Type Value/ Value Mandat- Protocol informa- OPC data types range ory/Optional tion element spMag AnalogueValue IEEE STD 754, VT_R4...
  • Page 64: Application Layer Status Codes

    Station Automation COM600 3.4 1MRS755382 IEC 60870-5-101 Slave (OPC) User's Manual 5.3.3. Application layer status codes 13851 ICCC_INVALID_ATTRIBUTE_VALUE. The value set to an attribute of an IEC station is incorrect, for example, one of the elements of the vector written to the SD attribute is out of range.
  • Page 65: Attributes

    1MRS755382 Station Automation COM600 3.4 IEC 60870-5-101 Slave (OPC) User's Manual 5.4. Attributes 5.4.1. General about attributes In addition to item tags for process data (indications and commands), the OPC servers and clients also provide some item tags for controlling the devices and retrieving status information from them.
  • Page 66: Device Attributes

    Station Automation COM600 3.4 1MRS755382 IEC 60870-5-101 Slave (OPC) User's Manual Property / Para- Value or Value range/ Default Description meter Clear To Send 0 = Passive signal Indicates the state of the Clear To Send (CTS) (CTS) signal. 1 = Active signal...
  • Page 67 1MRS755382 Station Automation COM600 3.4 IEC 60870-5-101 Slave (OPC) User's Manual Property / Para- Value or Value range/ Default Description meter Object Status When written: Indicates the detailed information about the station device status. Setting Object 1 = Re-transmit system mes-...
  • Page 68 Station Automation COM600 3.4 1MRS755382 IEC 60870-5-101 Slave (OPC) User's Manual Property / Para- Value or Value range/ Default Description meter Received Confirma- The number of received confirmation tion Messages messages. Received Unknown The number of unknown messages Messages received.
  • Page 69: Appendix 1

    1MRS755382 Station Automation COM600 3.4 IEC 60870-5-101 Slave (OPC) User's Manual Appendix 1 Interoperability list for IEC101 OPC Client Not supported Supported Supported, may need additional configuring Application layer telegram formats Interoperability This companion standard presents sets of parameters and alternatives from which subsets have to be selected to implement particular telecontrol systems.
  • Page 70 Station Automation COM600 3.4 1MRS755382 IEC 60870-5-101 Slave (OPC) User's Manual Physical layer (network-specific parameter) Transmission speed (control direction) Unbalanced interchange cir- Unbalanced interchange cir- Balanced interchange circuit cuit V.24/V.28 Standard cuit V.24/V,28 Recommended X.24/X.28 if > 1200 bit/s 100 bit/s...
  • Page 71 1MRS755382 Station Automation COM600 3.4 IEC 60870-5-101 Slave (OPC) User's Manual Maximum length L (number of octets) Unstructured The maximum frame length per Controlled Station can be up to 255. Application layer Transmission mode for application data Mode 1 (The least significant octet first), as defined in clause 4.10 of IEC 870-5-4, is...
  • Page 72 Station Automation COM600 3.4 1MRS755382 IEC 60870-5-101 Slave (OPC) User's Manual <11> :=Measured value, scaled value M_ME_NB_1 <12> :=Measured value, scaled value with M_ME_TB_1 time tag <13> :=Measured value, short floating point M_ME_NC_1 value <14> :=Measured value, short floating point...
  • Page 73 1MRS755382 Station Automation COM600 3.4 IEC 60870-5-101 Slave (OPC) User's Manual <49> :=Set point command, scaled value C_SC_NB_1 <50> :=Set point command, short float point C_SC_NC_1 value <51> :=Bitstring of 32 bit C_BO_NA_1 <131> :=Parameter byte string C_SR_NA_1 <133> :=101 Encapsulated SPA bus message...
  • Page 74 Station Automation COM600 3.4 1MRS755382 IEC 60870-5-101 Slave (OPC) User's Manual <124> :=Ack file, ack section F_AF_NA_1 <125> :=Segment F_SG_NA_1 <126> :=Directory F_DR_TA_1 Basic application functions Station initialization (station-specific parameter) Remote initialization An indication ASDU “Controlling Station Initialised” sent to the Controlled Station is not used.
  • Page 75 1MRS755382 Station Automation COM600 3.4 IEC 60870-5-101 Slave (OPC) User's Manual Long pulse duration (duration determined by a system parameter in the outstation Persistent output Transmission of integrated totals (station parameter or object-specific parameter Counter request General request counter Counter freeze without reset...
  • Page 77: Index

    1MRS755382 Station Automation COM600 3.4 IEC 60870-5-101 Slave (OPC) User's Manual Index adding channel object ....................17 data object ..................... 17 device object ....................17 OPC client ...................... 17 Analogue set point (APC) IEC 61850 data modeling ................63 properties ....................... 51 attributes channel ......................
  • Page 78 Station Automation COM600 3.4 1MRS755382 IEC 60870-5-101 Slave (OPC) User's Manual properties ....................... 48 Controllable single point (SPC) IEC 61850 data modeling ................61 properties ....................... 45 data object adding ......................17 configuring ..................... 31 Delta (DEL) IEC 61850 data modeling ................60 properties .......................
  • Page 79 1MRS755382 Station Automation COM600 3.4 IEC 60870-5-101 Slave (OPC) User's Manual Single point status (SPS) ................56 WYE ......................60 IEC101 device properties ....................... 27 Integer controlled step position information (ISC) IEC 61850 data modeling ................62 properties ....................... 50 Integer status (INS) IEC 61850 data modeling ................
  • Page 80 Station Automation COM600 3.4 1MRS755382 IEC 60870-5-101 Slave (OPC) User's Manual Protection activation information (ACT) IEC 61850 data modeling ................57 properties ....................... 36 signal diagnostics ..................... 54 Single point status (SPS) IEC 61850 data modeling ................56 properties ....................... 32 Unbalanced channel properties .......................
  • Page 82 Contact us ABB Oy Distribution Automation P.O. Box 699 FI-65101 VAASA, FINLAND Tel. +358 10 22 11 Fax. +358 10 224 1094 ABB Inc. Distribution Automation 655 Century Point Lake Mary, FL 32746, USA Tel: +1 407 732 2000 Fax: +1 407 732 2335...
