Thule Top Deck 881 Installation Instructions

Thule Top Deck 881 Installation Instructions

Advertisement

A
part
A
saddle /
B
hook /
C
carriage bolt M6 x 50mm /
D
metal bracket /
E
3 wing knob /
F
1/4" rope /
G
strap /

WARNINGS / LIMITATIONS

• Load bars must be at least 24" (610mm) apart for
safe use.
• Ensure that boat does not contact vehicle while
loading or unloading; otherwise, damage to vehicle or
boat could occur.
• For extra vehicle protection, place the Thule Water
Slide mat (#854, sold separately) or a towel on the
edge of the vehicle's roof during loading/unloading.
• Ensure bottom of hull is clean before loading to avoid
damaging boat surface.
• Always tie down bow and stern of boat to vehicle
bumpers or tow hooks.
• Do not exceed weight limitation of racks or factory
installed bars.
• Ensure load carrier is properly installed and tight
to vehicle.
• Failure to follow above guidelines voids warranty.
NOTE: After kayak use in salt water conditions,
please rinse off kayak carrier with fresh
water to keep salt residue off the rack.
5015500_04
TOP DECK

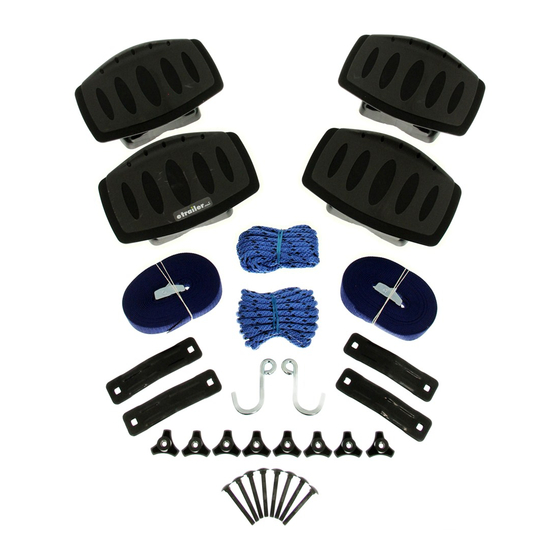

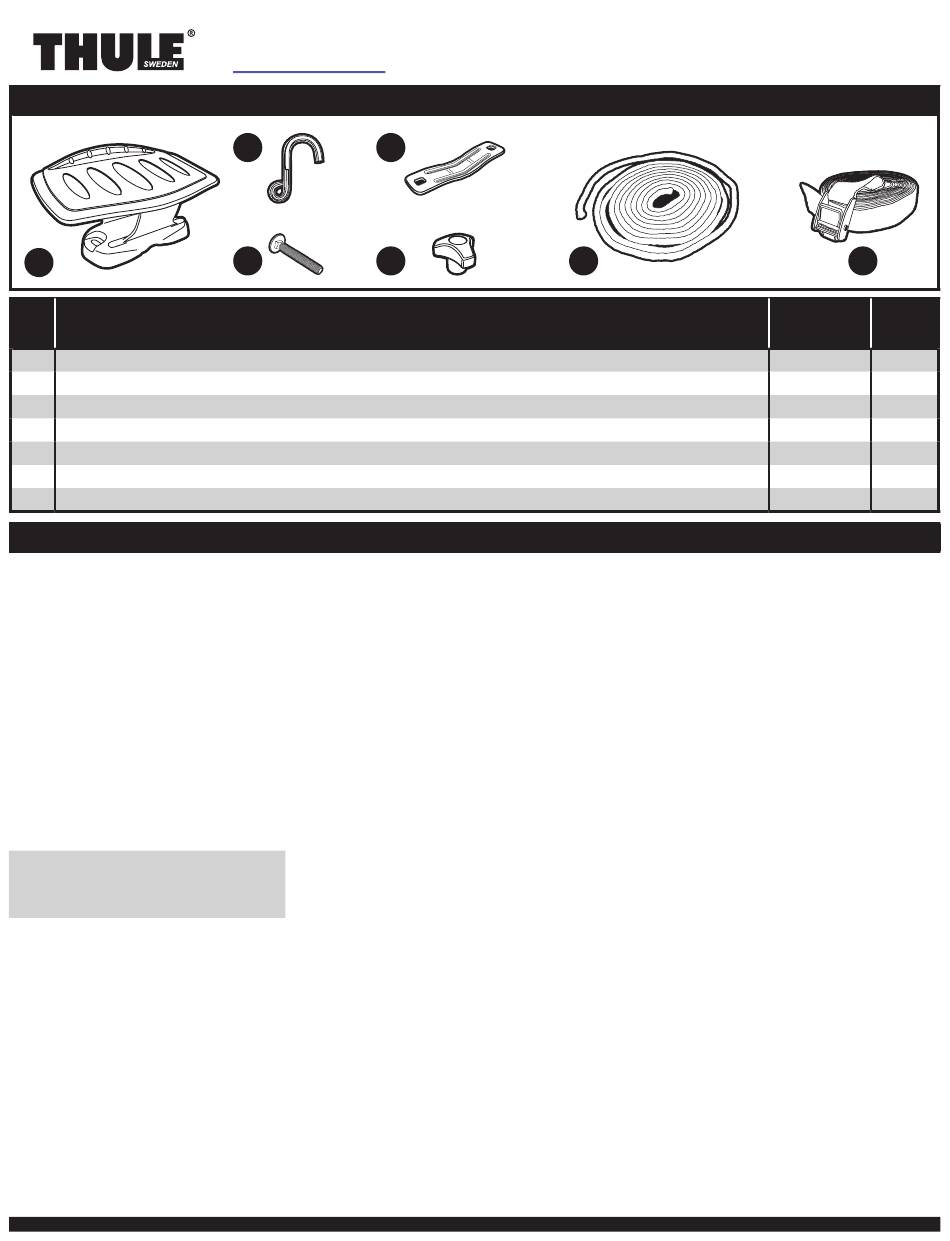

PARTS INCLUDED

B
D
C
E
description
881
F
G
part number
qty.
753-3565
4
853-5465
2
915-0650-31
8
853-5513
4
753-0745
8
853-5466
2
753-2030-04
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Top Deck 881 and is the answer not in the manual?

Questions and answers

Summary of Contents for Thule Top Deck 881

  • Page 1 • Ensure that boat does not contact vehicle while loading or unloading; otherwise, damage to vehicle or boat could occur. • For extra vehicle protection, place the Thule Water Slide mat (#854, sold separately) or a towel on the edge of the vehicle’s roof during loading/unloading.
  • Page 2 • Insert carriage bolt through bracket and assembly base into wing knob. Tighten loosely. • Place assembly onto bar as shown. • Loosely attach other carriage bolt and knob as shown. • Repeat above steps for all 4 saddle assemblies. NOTE: Load bars must be at least 24"...
  • Page 3 • Load boat onto saddles. It may be necessary to readjust the distance between your saddles for a snug fit. Make sure boat is in line with vehicle. • Ensure that there is clearance between load bars & hull. • Position saddles so top edge contacts side of boat. •...
  • Page 4 For easier tie down to vehicle, the • Carefully and securely attach hook to • Attach to load at QuickDraw ratcheting tie down is end of rope. secure points. available at your local Thule dealer or online at thule.com 5015500_04...
