Summary of Contents for INVISIBLE FENCE GPS 1.0

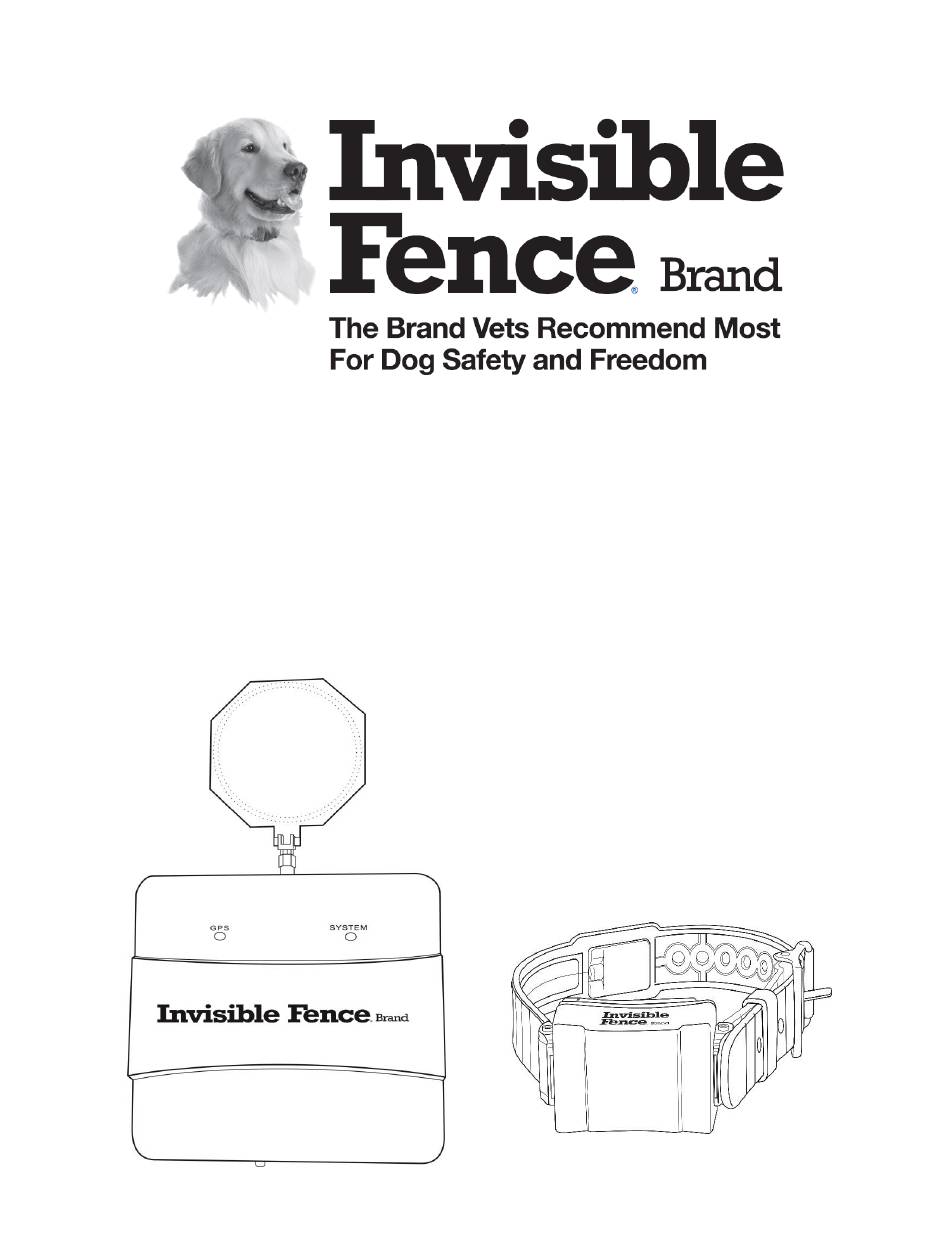

- Page 1 GPS 1.0 Pet Containment System Owner’s Manual www.invisiblefence.com...
- Page 2 Invisible Fence Brand pet containment systems have contained over two million pets. However, there are some precautions you should take. Read and retain manuals; Read the entire Owner’s Manual before using your new Invisible Fence ® Brand pet containment system.
- Page 3 ® warning functions, for which Invisible Fence, Inc., as well as Invisible Fence Brand Distributers and Dealers, assume no responsibility.
- Page 4 Brand GPS pet containment ® system is backed with a one-year, money-back guarantee. The support of your Invisible Fence Brand Dealer gives you peace of mind that your pet remains safe at home. Refer to the back of your sales contract for complete details.
-
Page 5: Components
Components GPS Mobile Collar™ Unit GPS Base Reference Unit How the System Works When your pet approaches an established boundary (containment perimeter or exclusion zone), ™ the GPS Mobile Collar Unit generates warning beeps or, if necessary, a solid tone and correction to remind your pet of the boundary. -
Page 6: Operating Guide
The pet is more than 4 feet outside the containment area. This is an Out +4 Violation Operating Guide GPS Base Station Primary Function The GPS Base Station’s primary function is to derive and supply GPS Mobile Collar ™ ™... - Page 7 ™ GPS Mobile Collar Unit Primary Function The primary function of the GPS Mobile Collar ™ Unit is to contain the pet within the permitted area as defined by the containment area and any exclusion zones. The GPS ™ Mobile Collar Unit acquires its position using GPS satellites, applies a set of rules to arrive at an "actionable position and speed", and determines if the actionable position and...
- Page 8 Light Indicators Under normal operating conditions, the LED will periodically flash the following:two flash Battery and GPS status indicators. o The first LED flash indicates Battery Status Indicator Flash Battery Life Remaining Green More than 16 hours remaining 12 – 16 hours remaining Yellow Less than 12 hours remaining ...
- Page 9 Tone Indicators When in normal containment mode the GPS Mobile Collar ™ Unit will generate tones associated with real time operation. Audible beeps emanating from the GPS Mobile ™ Collar Unit are intended to warn the pet that a correction is immanent if the violation is not corrected.
- Page 10 Charge Indicator The charge indicator LED will illuminate when the battery charger is plugged into the charge port. o Red – Battery charging. If the Unit's battery is substantially DISCHARGED, it may take several minutes for the charge indicator LED to illuminate. o Green –...
-
Page 11: Troubleshooting
GREEN. Retest the Anti-Linger area. If the GPS Status fails to turn Yellow/Orange or GREEN, ® immediately call your Invisible Fence Brand Dealer for service. Use a leash (lead) or other means to contain your pet until all necessary service has been completed... - Page 12 Subpart J of the FCC rules. To insure continued compliance with FCC limits, Invisible Fence® Brand recommends that you only use antennas provided by Invisible Fence® Brand for use with your GPS Pet Containment System. Refer all servicing to your local Invisible Fence® Brand dealer. This device complies with Part 15 of the FCC Rules.
- Page 13 § 95.1303 Authorized locations. (a) MURS operation is authorized: (1) Anywhere CB station operation is permitted under § 95.405; and (2) Aboard any vessel of the United States, with the permission of the captain, while the vessel is travelling either domestically or in international waters. (b) MURS operation is not authorized aboard aircraft in flight.
- Page 14 Dealer Name: Dealer Phone: Notes: www.invisiblefence.com...
- Page 15 800-578-3647 (USA) (865) 777-5404 (International) 400-1086/5 ® ©2014 Radio Systems Corporation All rights reserved. Protected by Patents: U.S.: #5868100 Patents Pending...
