ASSEMBLY INSTRUCTIONS
Uniform Medium
Open Bookcase
Size (mm): 800L x 440D x 1170H
S-OS90-117T
01
Back Panel
3
5
Side Panel L

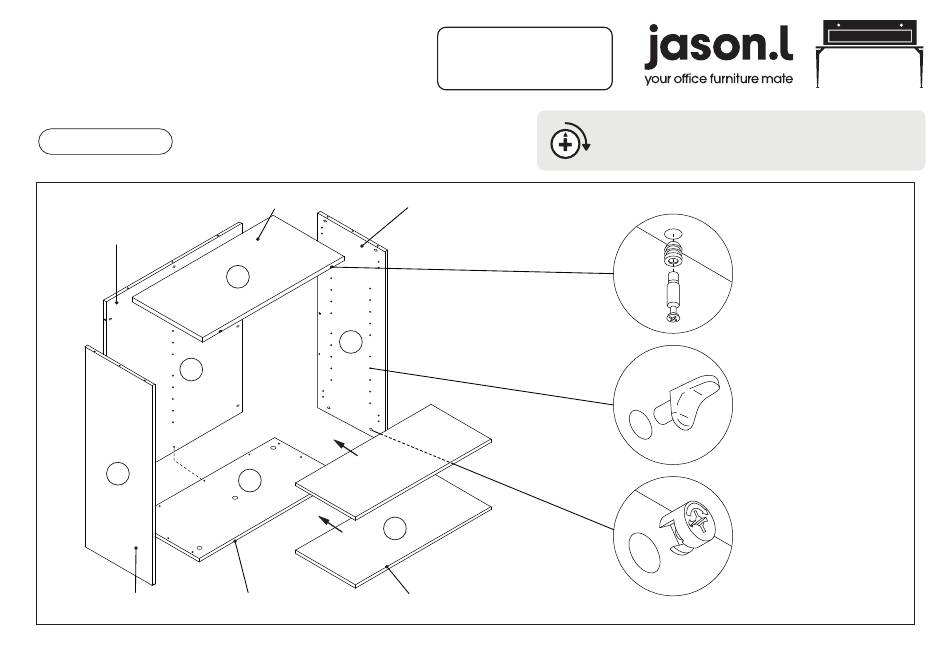

Assemble all panels in the following order.

Top Panel
4
2
1
6
Shelf Panel
Base Panel
www.jasonl.com.au
Need help!
Call us on
1300 527 665
Side Panel R

Function of Klix Cam

Make sure the arrow is
Turn for locking pointing upwards before
inserting into the panel's hole.
75° Min - 195° Max
Insert Nylon Dowel
into Boring Hole.
Tighten Minifix
Connecting into
Nylon Dowel.
Insert collar stud into boring
holes, at the height you want
shelves.
Insert Minifix Housing
into Boring Hole.
Page 3 of 4
