- Page 1 Operation Manual for Mag-01 & Mag-01H Single Axis Fluxgate Magnetometers with Mag Probes B-G...
-
Page 2: Table Of Contents
3. Introduction 4. The Magnetometers 4.1. Introduction to the Magnetometers 4.1.1. Mag-01 Front Panel 4.1.2. Mag-01H Front Panel 4.1.3. Mag-01 and Mag-01H Rear Panel 4.1.4. Operation 4.2. Circuitry 4.2.1. Additional Circuitry for Mag-01H 4.3. Power Supplies and Battery Charging 4.4. The Autoranging Display 4.5. - Page 3 BARTINGTON INSTRUMENTS 6.3. Using the Offset Control (Mag-01H only) 6.4. Using the Sensitivity x10 Control (Mag-01H only) 6.5. Battery Replacement 6.4.1. Instructions for Battery Replacement 6.6. Electromagnetic Compatibility 7. Troubleshooting, Care and Maintenance 7.1. Troubleshooting 7.2. Checking the System 7.2.1. Battery Check 7.2.2.
-
Page 4: About This Manual
BARTINGTON INSTRUMENTS 1. About this Manual This manual describes the installation, operation and maintenance of the Mag-01 and Mag-01H Magnetometer. It should be read in conjunction with the product brochure DS0003, which can be found on the Mag-01 and Mag-01H... -
Page 5: The Magnetometers
BARTINGTON INSTRUMENTS 4. The Magnetometers 4.1. Introduction to the Magnetometers 4.1.1. Mag-01 Front Panel Figure 1. Mag-01 front panel functions. Key to Figure 1 1. Power switch. 1. Waterproof connection to probe. 1. Charge light, illuminated when internal batteries are on charge. -
Page 6: Mag-01H Front Panel

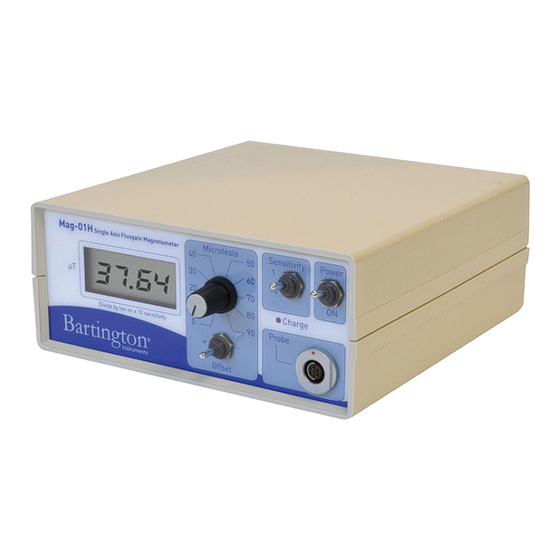

BARTINGTON INSTRUMENTS 4.1.2. Mag-01H Front Panel Figure 2. Mag-01H front panel functions. Key to Figure 2 5. Offset control switch. This and the offset toggle switch [10] are used to apply an offset signal to the probe from 0 to ±90μT in 10μT steps. See Using the Offset Control. -
Page 7: Mag-01 And Mag-01H Rear Panel
BARTINGTON INSTRUMENTS 4.1.3. Mag-01 and Mag-01H Rear Panel Figure 3. Mag-01 / Mag-01H rear panel functions Key to Figure 3 12. Analogue output. ±5V maximum = ±500μT. Offsets and range change apply. (For high field probe D ±4.5V = ±4.5mT.) 13. -
Page 8: Circuitry
BARTINGTON INSTRUMENTS 4.2. Circuitry Figure 4. Mag-01 system schematic A-D CONVERTOR & 4 1/2 DIGIT LCD RANGE +19.999 CONTROL SW ITCH SUMMING A MPLIFIER & AT TENUAT OR PRECISION VOLT A GE TO CURRENT CONVERTOR PROBE FEEDBACK FEEDBACK WINDING CURRENT... -
Page 9: Additional Circuitry For Mag-01H
BARTINGTON INSTRUMENTS See Figures 4 and 5 for circuitry diagrams. See Introduction to the Probes for the principles of fluxgate operation. The alternating field used in the operation of the probes is driven by a high purity alternating signal (the excitation signal) from the probe excitation oscillator to the excitation winding. -
Page 10: Power Supplies And Battery Charging
Caution: Care must be taken when disconnecting the battery, if unsure please ask a qualified service person or seek advice from Bartington Instruments. Disconnect the battery in the following way:... -
Page 11: The Autoranging Display
BARTINGTON INSTRUMENTS Ensure that the battery is fully charged. In this way it will not degrade for periods of non-use up to 1 year. ii. Open the instrument case by removing the two retaining screws located at the edges of the instrument base. Remove the cover of the instrument, leaving the front and rear panels located in the base. -
Page 12: Analogue Output
BARTINGTON INSTRUMENTS 4.5. Analogue Output Analogue output frequency response for the Mag-01 and Mag-01H is shown in figure 7 below. (LOW FIELD PROBES) B x 10 FOR HIGH FIELD PROBES B Peak (µT) measured at ROLL OFF: -40dB/DECADE Va out -12dB/OCTAVE 0.01... -
Page 13: Probe Cables
A magnetometer probe switch unit is available for the sequential selection of two or three Mag probes, types B - G, for operation with a single Mag-01 or Mag-01H instrument. The Mag probes can be operated at a distance of up to 25 metres from the switch unit. -
Page 14: High Field Probes (Types D, E, G)
DR2908 (Mag F Probe) DR2909 (Mag G Probe) on the product page of the Bartington Instruments website. 5.3.4. Proximity Effects Note: Mag cryogenic probes can only operate in close proximity to each other if they are mutally orthogonal. Otherwise, to avoid interaction, no two Mag cryogenic probes should be operated within 10mm of each other. -
Page 15: Operating Instructions
BARTINGTON INSTRUMENTS 6. Operating Instructions Refer to figures 1, 4 and 5. 6.1. Switching On Connect the probe selected to the probe socket and switch on the magnetometer. Note: The plug locking mechanism requires that the outer shell of the plug is retracted (towards cable) during insertion and removal. -
Page 16: Using The Sensitivity X10 Control (Mag-01H Only)
Power Supplies and Battery Charging. Remove the two case retaining screws in the base of the instrument and remove the top cover. Disconnect the battery leads (Mag-01) or the battery connector (Mag-01H) and fit a replacement battery. Re-connect. 6.6. Electromagnetic Compatibility The Mag-01 and Mag-01H instruments contain no high frequency electronics likely to cause emissions which could affect other apparatus. -
Page 17: Troubleshooting, Care And Maintenance
Bartington Instruments service team on +44 (0)1993 706565. Attempted repair or opening of the casing by users in a manner or for reasons other than given in the manual may invalidate the warranty. -
Page 18: Care And Maintenance
BARTINGTON INSTRUMENTS 7.3. Care and Maintenance Note: Surface or dirt contamination should be removed using a mild detergent solution only. If the connector pins become contaminated then they should be lightly cleaned with a swab of isopropyl alcohol. 8. Storage and Transport Your magnetometer is a precision electronic instrument and should be treated as such. -
Page 19: Notes
BARTINGTON INSTRUMENTS Notes Page 19 of 20 OM0382/9... - Page 20 The copyright of this document is the property of Bartington Instruments Ltd. Bartington® is a registered trade mark of Bartington Instruments Limited in the following countries: United Kingdom, Australia, Brazil, Canada, China, European Union, India, Japan, Norway and the...
