Festo ELGA-BS-KF-80 Instructions

ELGA-BS-KF
Spindle axis
Instructions | Operating
8093059
2018-05b
[8093061]
Translation of the original instructions
1 Further applicable documents
All available documents for the product è www.festo.com/pk.
Observe further applicable documents:
– Instruction manual for motor mounting kit.
2

Safety

2.1

General safety instructions

– The product may only be used in its original status without unauthorised
modifications.
– Only use the product if it is in perfect technical condition.
– Observe product labelling.
– Take into consideration the ambient conditions at the location of use.
– Before working on the product, switch off the power supply and secure it
against being switched back on. Only switch on the power supply when the
product has been assembled and installation work is complete.
– Comply with the handling specifications for electrostatically sensitive devices.
– Observe tightening torques. Unless otherwise specified, the tolerance is
± 20 %.
2.2

Intended use

The spindle axis is intended to be used for positioning payloads in combination
with tools or as a drive when external guides are used.
A rotating ball screw drive converts the rotation of a motor into straight-line
motion. As a result, the slide moves backwards and forwards. The slide is ball-
bearing guided. The reference position of the slide can be queried by means of a
proximity sensor aB.
The spindle axis is approved for slide and yoke operating modes è Fig.1,
è Fig.2.
Fig. 1 Slider operating mode
Fig. 2 Yoke operating mode
2.3

Training of skilled personnel

– Installation, commissioning, service and disassembly should only be conduc-
ted by skilled personnel.
– The skilled personnel must be familiar with the installation of electrical and
pneumatic control systems.
2.4

Approvals

The product fulfils the requirements of EU directives and comes with the CE mark-
ing. .
The product-relevant EC directives and standards are listed in the declaration of
conformity è www.festo.com/sp.
2.5

Further information

– Accessories è www.festo.com/catalogue.
– Spare parts è www.festo.com/spareparts.
– Documents and literature è www.festo.com/sp.
3
3.1
Designation
Pressure grease gun with needle-pointed nozzle
Blast pipe, axial outlet port
Festo AG & Co. KG
Blast pipe, radial outlet port
Ruiter Straße 82
73734 Esslingen
Germany
Roller bearing grease
+49 711 347-0
www.festo.com
Tab. 1 Accessories
3.2
8093059
1 Drive shaft
2 Thread for motor mounting kit
3 Cover strip
4 Slide
5 Thread/centring holes for attach-
ment components
6 Thread for optional switch
lug/measuring system
7 Relubrication opening for ball
screw

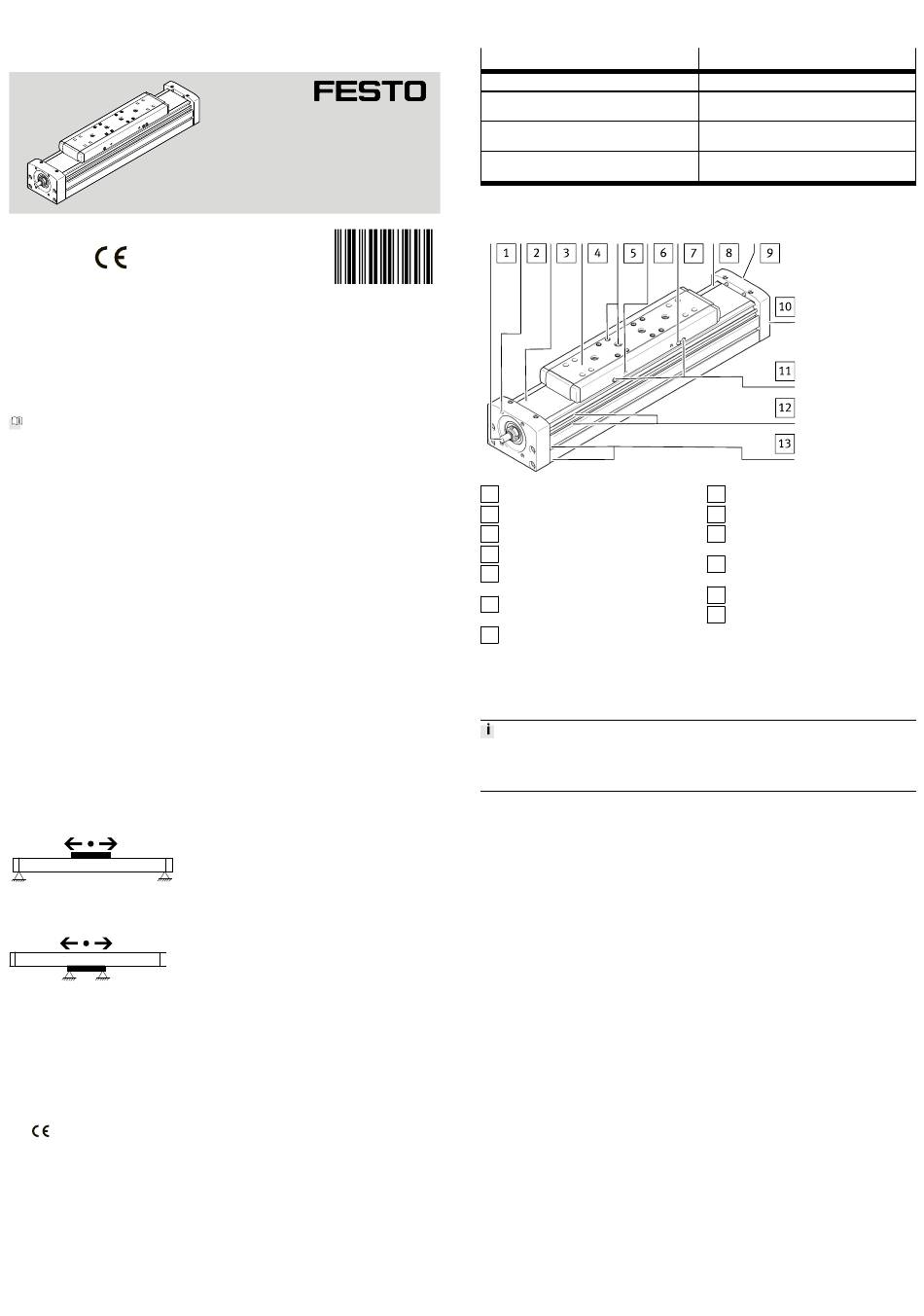

Fig. 3 Product design
4
Unexpected movement of components. The spindle axis is non-braking. Without
input torque, the slide is freely movable.
• Secure slide during transport.
– Take product weight into account è 9 Technical data: mechanical.
– Comply with maximum permitted support clearances when attaching trans-
portation aids è 10 Characteristic curves.
– Store and transport the product in its original packaging. The original pack-
aging offers sufficient protection from typical stresses.
– Ensure short storage times.
– Choose cool, dry, well-shaded, corrosion-resistant locations.
5
5.1
Prerequisites:
– Do not modify the screws and threaded pins. Exception: Direct request in
these operating instructions to make changes.
– Select the motor and motor mounting kit from the Festo
catalogue è www.festo.com/catalogue. When using other motors, observe
the limit values for forces, torques and speed
è 9 Technical data: mechanical.
– Assembling the motor è 1 Further applicable documents.
– Connect motor cables only after the spindle axis is mounted.

Product range overview

Not included in the delivery

Part number/type
647958/LUB-1 è www.festo.com/spareparts.
647959/LUB-1-TR-I
è www.festo.com/spareparts.
647960/LUB-1-TR-L
è www.festo.com/spareparts.
LUB-KC1 from Festo
è www.festo.com/spareparts.

Product design

Transport and storage

Assembly

Mechanical installation

8 Profile housing with ball guide
9 Sealing air connection
10 Thread/centring holes for foot
mounting
11 Relubrication openings for recircu-
lating ball bearing guide
12 Slots for proximity sensors
13 Slots for mounting/accessories
