Summary of Contents for Draper DMM100

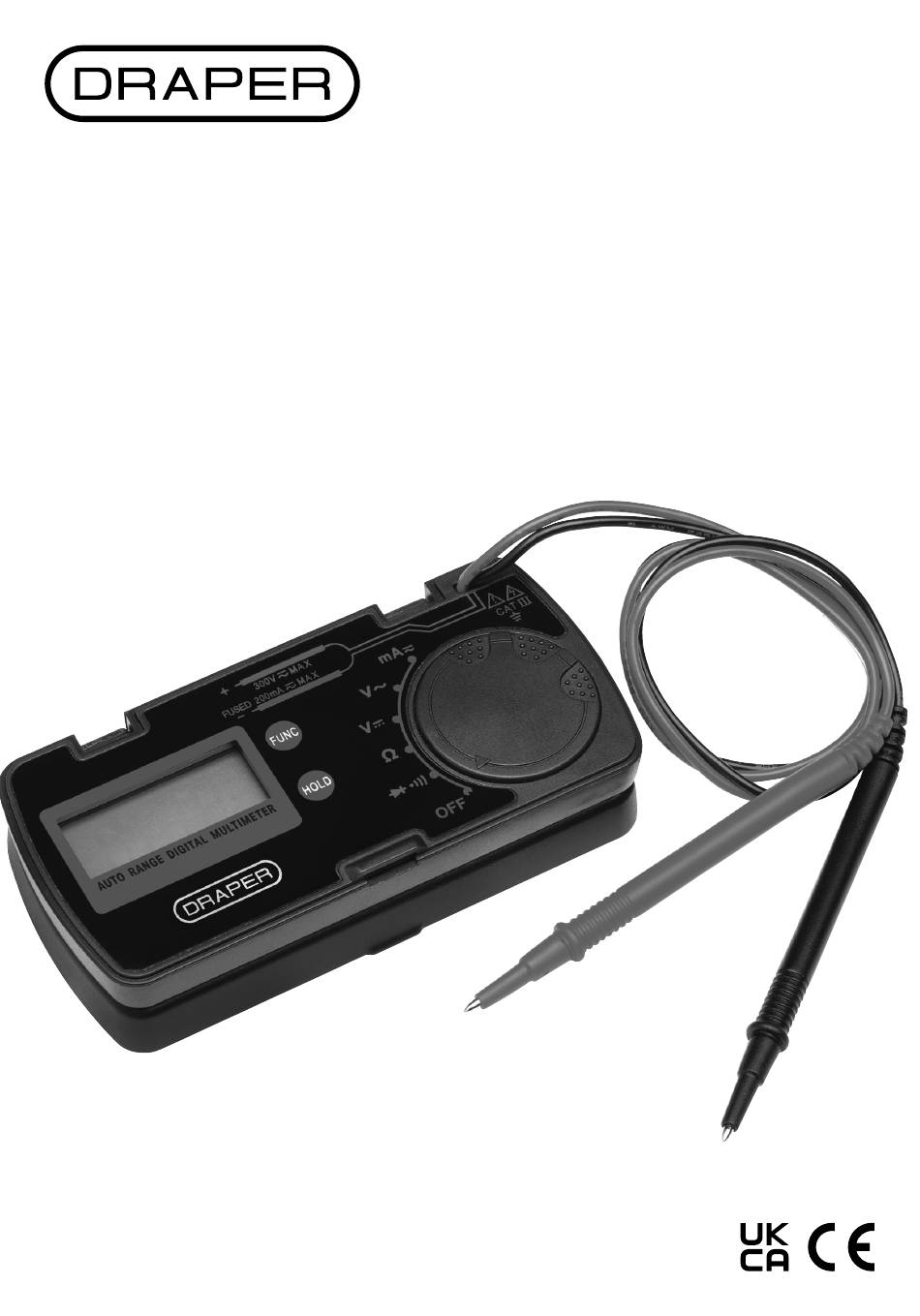

- Page 1 Original Instructions Version 1 - August 2024 POCKET DIGITAL MULTIMETER 02590...
-
Page 2: Product Reference
This compact meter is designed to measure AC/DC voltage, AC/DC current, resistance, diode and continuity. Humidity: <85% Any other application beyond the conditions established for use will be considered misuse. Draper Tools accepts no responsibility for improper use of this product. Range Selection Range Resolution... -
Page 3: Health And Safety Information
• Keep this product out of reach of children. leads are damaged in any way or if there is evidence of battery leakage. Contact Draper Tools for WARNING! ALWAYS ensure that the operator is replacement options if the leads become damaged. - Page 4 If any part is damaged or missing, do not attempt to use examine it for any signs of damage that may have the product. Please contact the Draper Helpline; contact occurred during shipment. details can be found at the back of this manual.
-
Page 5: Installing/Replacing The Battery
5. Operating Instructions 5.4 Function Select Dial (4) Important: Before operating this product, read and understand all the safety instructions listed in this manual. 5.1 Installing/Replacing the Battery Important: Use ONLY LR44 batteries. WARNING! Remove the test leads from the circuit under test and turn the function dial to the ‘OFF’... - Page 6 5. Operating Instructions Dial Function Mode Position Diode Mode 1. Press the function button (2) to select the diode function. 2. Touch the probe contacts against the contacts of the diode, observing the correct polarity. 3. The approximate forward voltage drop of the diode is displayed on the screen (1); a typical diode functioning normally will deliver a reading of 0.5–0.7.
-
Page 7: Maintenance And Storage
6. Product Care and Disposal 8. Explanation of Symbols Important: Disconnect the probes from any source of voltage and turn the Multimeter off before performing any maintenance on this product. DO NOT attempt to repair or service the meter unless qualified to do so. Read the instruction manual 6.1 Maintenance and Storage • Keep the product clean and free from dust, debris and... -
Page 8: Contact Details
Product Helpline: +44 (0) 23 8049 4344 Telephone Sales Desk: +44 (0) 23 8049 4333 General Enquiries: +44 (0) 23 8026 6355 Please contact the Draper Tools Product Helpline for repair and servicing enquiries. © Published by Draper Tools Limited © Published by Draper Tools Limited...
