Optional Technician Adjustments
The unit is shipped ready to install. The following Setup or Program Menu Changes are available if the installer decides to
change the factory settings.

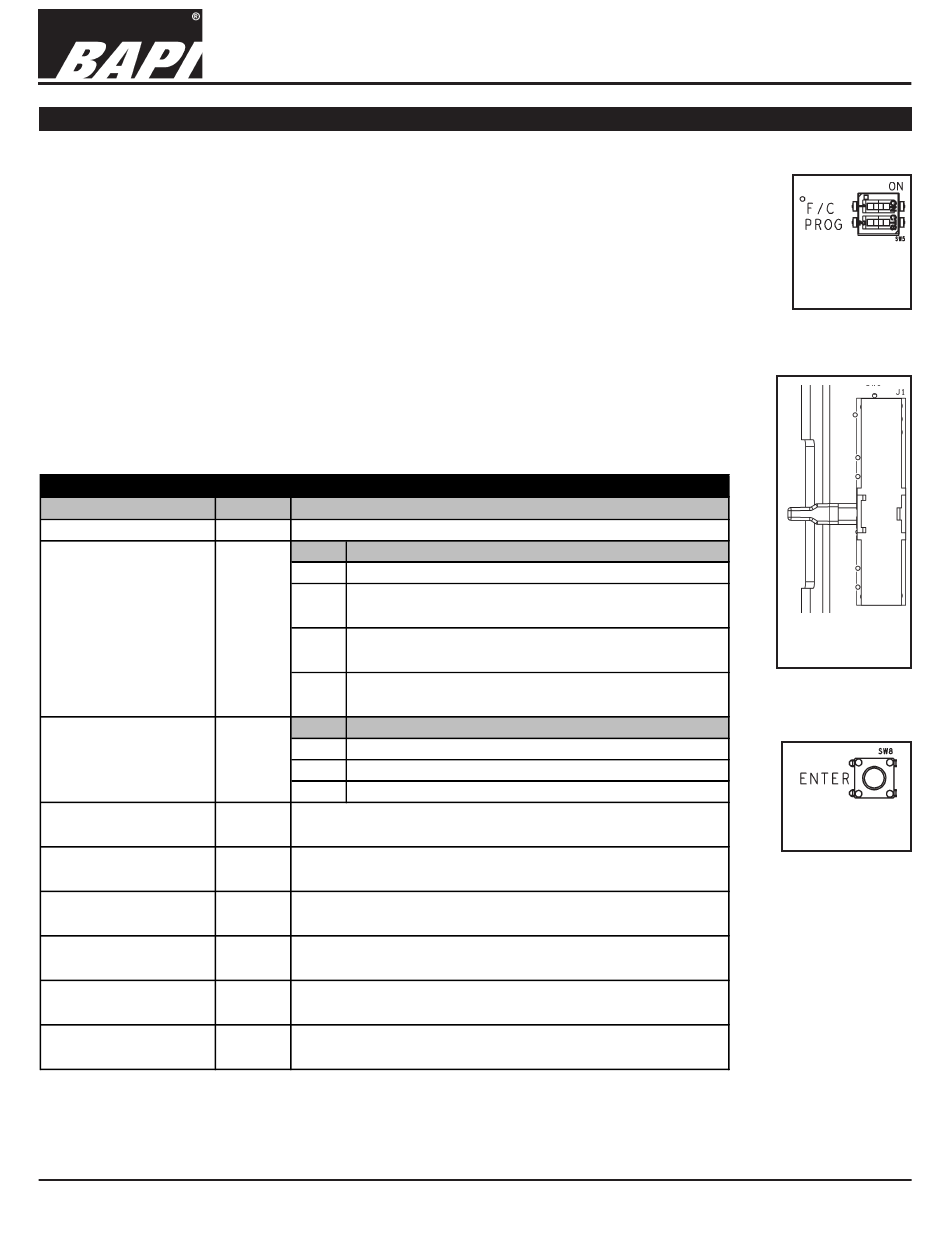

ENTERING PROGRAM MODE TO ADJUST PARAMETERS (see Figs 9-11 for adjustment tools)
1. Power unit and set DIP Switch SW5 #2 (PROG) to ON (right). The LCD will show a page number
(P1-P9). P1-P9 will flash to indicate that display parameter can be adjusted.
2. Slide Potentiometer J1 is used to scroll up and down through pages and adjusting the page
parameters.
NOTE: For units with Temperature Setpoint, the Slide Potentiometer will extend outside the
enclosure. For units without Temperature Setpoint, the Slide Potentiometer will not be extended outside the enclosure.
3. Push Switch SW8 as "Enter" to switch between page number and adjusting the page parameter.
4. After a page parameter has been adjusted, push Switch SW8 to confirm the change.
5. To exit Program Mode, Set DIP Switch SW5 #2 (PROG) to OFF (left).
Note: DIP Switch SW5 #1 (°F/C) can be used to switch the display between °F and °C.
Parameter
Temperature Offset
Setpoint Lockout
Temperature Display
Temperature Setpoint
Display Low
Temperature Setpoint
Display High
Temperature Setpoint
Output Low
Temperature Setpoint
Output High
Temperature Setpoint
Value
User Fan/Mode Setpoint
Building Automation Products, Inc., 750 North Royal Avenue, Gays Mills, WI 54631 USA
Tel:+1-608-735-4800 • Fax+1-608-735-4804 • E-mail:sales@bapihvac.com • Web:www.bapihvac.com
BAPI-Stat "Quantum" Temperature Sensor with Display
Programming Pages
Page
P1
Item
0
Setpoint Disabled (pushbutton only): Display shows
1
setpoint when activated, but can't be changed
P2
Setpoint Display Only: Shows setpoint only, does not
2
Setpoint Not Displayed: Setpoint can be changed, but
3
Item
0
P3
1
2
Adjust the Low Temperature of the setpoint range
P4
P5
Adjust the High Temperature of the setpoint range
P6
(Read Only. Displayed in 10 ohm resolution)
P7
(Read Only. Displayed in 10 ohm resolution)
Shows temperature setpoint value (Ready Only)
P8
Shows Fan/Mode setpoint on units configured with Mode/
P9
Setpoint (Ready Only. Pushbutton only. Major display shows 0)
Specifications subject to change without notice.
Adjustment
±5° in 0.1° increments
Display Action
Setpoint Enabled
display local temperature
will not display
Display Action
Display in whole digits
Display in 0.5° increments, °F and °C
Display in 0.1° increments, °F and °C
Shows Low Setpoint Output
Shows High Setpoint Output
and Slider Setpoint
Installation & Operating Instructions
Fig. 10: J1 Slide
Potentiometer
Fig. 11: Enter
Switch SW8
rev. 04/23/18
Fig. 9: DIP
Switch SW5
5 of 6
